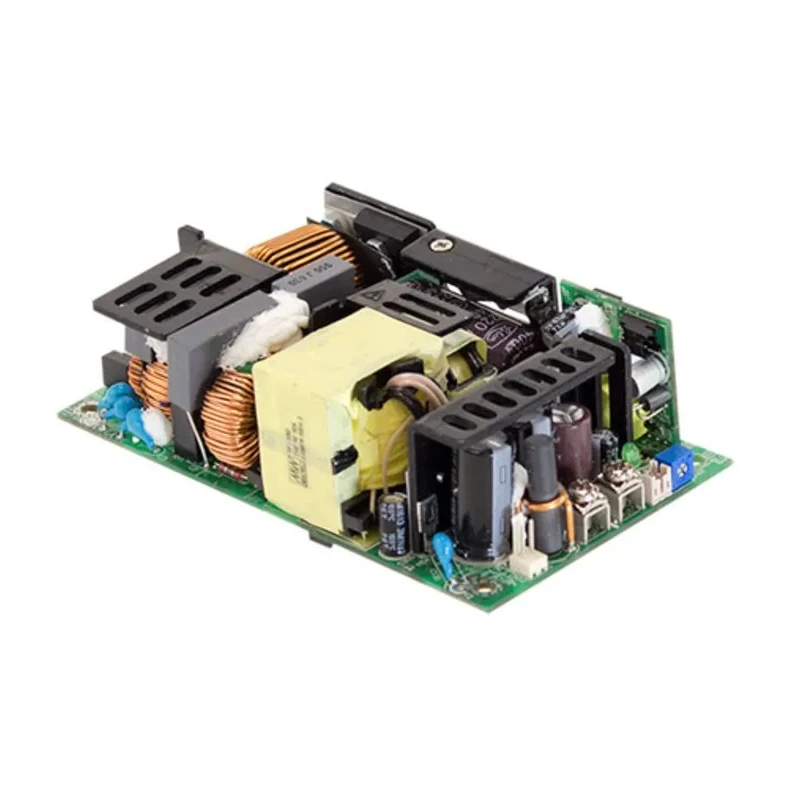

MEAN WELL Switching Power Supply 15V DC, 250.5W, 1 Output, Panel Mount, High Efficiency EPP-400-15
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 250.5W |
| Efficiency | 92% |
| Length | 127mm |
| Model | EPP-400-15 |
| Depth | 35mm |
| Gross Weight | 390g |
| Width | 35mm |
| Mount Type | Panel |
| Series | EPP-200 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Standards/Approvals | EAC TP TC 004, UL 6681, TUV BS ENEN 6681, IEC 6681 |
| Maximum Output Voltage | 15V dc |
| SMPS Output Current | 26.7A |
| Minimum Input Voltage | 80V ac |
Key Features
- Provides 15V DC output with 1 channel.
- Offers rated power up to 250.5W, suitable for demanding loads.
- Panel mount design enables easy integration into equipment enclosures.
- High efficiency of 92% reduces energy losses and improves performance.
- Wide input voltage support including 80V AC to 370V DC and 264V AC.
- Operating temperature range from -30°C to 70°C for robust reliability.
- Ideal for industrial automation machinery and control systems.
Product Description
MEAN WELL EPP-400-15 Switching Power Supply is engineered for industrial and automation environments demanding high reliability and performance. The device provides a single output at 15V DC with a maximum rated power of 250.5W, supporting loads requiring stable and efficient power supply.
This switching power supply features a wide input range, accepting 80V AC up to 370V DC as well as 264V AC, ensuring compatibility with diverse electrical systems globally. Its 92% efficiency rating helps minimize energy waste and keeps operational costs low.
With panel mount construction, the EPP-400-15 is designed for easy integration into machinery, equipment racks and electronic enclosures. Its compact dimensions, measuring 127mm in length and 35mm in both width and depth, make it suitable for applications where space is restricted.
15V DC Output, single channel with up to 26.7A output current. Panel mount design aids in simple equipment integration. Robust protection mechanisms: short circuit, overload, over voltage and over temperature. Efficiency up to 92% for energy-conscious installations.
30°C to 70°C operating range for harsh industrial conditions. Certified compliance: EAC TP TC 004, UL 6681, TUV ENEN 6681, IEC 6681.
The EPP-400-15 supplies free air convection cooling up to 250W and supports 400W output with forced air (25CFM). Integrated fan supply (12V / 0.5A) and a standby 5V output provide extra flexibility for control circuitry and auxiliary functions. An LED power-on indicator makes device status easily visible.
Applications include industrial automation machines, control systems, mechanical and electrical equipment, and precision electronic instruments. Designed for reliability, it supports Class I and Class II systems and comes with remote sensing capability.
Well suited for manufacturing automation, laboratory equipment, HVAC controls, process instrumentation, and commercial machinery. Browse more in the MEAN WELL Switching Power Supply range on EnvMart for advanced power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EPP-400-15 provides a single output of 15V DC with a maximum rated power of 250.5W.
It has an efficiency rating of 92%, which helps minimize energy waste.
The dimensions of this power supply are 127mm in length, 35mm in width, and 35mm in depth.
The maximum output current for the EPP-400-15 is 26.7A.
It supports a wide input voltage range from 80V AC to 370V DC, as well as 264V AC.
This power supply features a panel mount design, allowing for easy integration into equipment enclosures.
It includes protection mechanisms for short circuit, overload, over voltage, and over temperature.
The EPP-400-15 complies with several standards, including EAC TP TC 004, UL 6681, TUV BS ENEN 6681, and IEC 6681.
This model is well-suited for industrial automation machines, control systems, mechanical and electrical equipment, and precision electronic instruments.
Yes, it features a standby 5V output and an integrated fan supply of 12V / 0.5A for additional flexibility.
The gross weight of this power supply is 390g.
