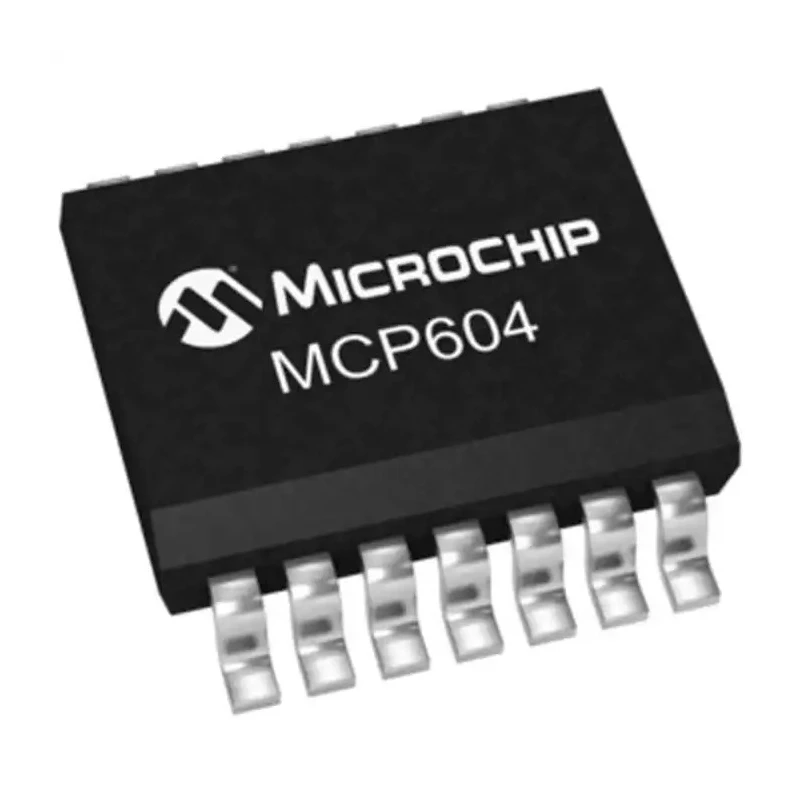

Microchip Operational Amplifier MCP604T-I/SL, 2.8 MHz, 14-Pin, SOIC, 5V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 8.65mm |
| Model | MCP604T-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP604 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Compliance | RoHS |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 2.8MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 2.3V/μs |
Key Features
- Offers a gain bandwidth product of 2.8 MHz for high-speed signal amplification.
- Operates in a single-supply voltage range from 2.7 V up to 5 V.
- Featuring rail-to-rail output and ground-inclusive input range for versatile circuit integration.
- 14-pin SOIC surface-mount package enables efficient PCB assembly.
- Low input bias current (1 pA) and quiescent current ideal for battery-powered and portable applications.
- Industrial temperature range of -40°C to 85°C for robust environmental tolerance.
- Dual-channel design supports multi-signal amplification tasks.
- Unity-gain stable and RoHS compliant for high reliability and sustainability.
Product Description
Microchip MCP604T-I/SL Operational Amplifier is engineered for applications requiring precise signal amplification with low power consumption. Its CMOS architecture supports operation with single supply voltages as low as 2.7 V, making it well-suited for battery-driven and portable devices in industrial, laboratory, and commercial environments.
Featuring a gain bandwidth product of 2.8 MHz, the MCP604T-I/SL ensures rapid signal response in demanding analog circuits. Its dual-channel configuration allows multiple signal processing within a compact footprint, and the 14-pin SOIC package facilitates easy integration onto modern PCBs.
The amplifier offers rail-to-rail output and an input range that includes ground, enhancing design flexibility and compatibility with a wide array of sensors and analog interfaces. Its low input bias and offset currents make it ideal for precision measurement, A/D converter drivers, and anti-aliasing filter stages.
2.8 MHz gain bandwidth ensures stable and high-speed operation in sensor interfaces and data acquisition systems. Operates reliably across an industrial temperature range (-40°C to 85°C). Surface-mount SOIC package simplifies automated assembly for electronics manufacturing.
RoHS compliance certifies material safety for environmentally sensitive projects. Low quiescent current (230 μA typ.) minimizes battery drain for portable designs. Stable for unity-gain configurations in signal conditioning circuits.
Appropriate for automotive, process control, and instrumentation applications. Maximum supply voltage up to 5 V provides compatibility with standard logic families.
MCP604T-I/SL by Microchip is designed for demanding analog signal processing tasks in industrial, laboratory, and commercial electronics. It is frequently applied in sensor interfacing, analog-to-digital conversion drivers, filtering, and signal pre-conditioning for control systems and measurement instruments.
Browse more Microchip amplifiers and Operational Amplifier ICs in the EnvMart Semiconductor category for matched solutions to your circuit needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP604T-I/SL has a gain bandwidth product of 2.8 MHz, which allows for high-speed signal amplification in various applications.
This model operates within a single-supply voltage range from 2.7 V to 5 V, making it suitable for battery-powered applications.
It operates reliably across an industrial temperature range of -40°C to 85°C, ensuring robust performance in various environments.
The operational amplifier is housed in a 14-pin SOIC surface-mount package, facilitating efficient PCB assembly.
The MCP604T-I/SL features a low input bias current of 1 pA, which is beneficial for precision applications.
It can deliver a maximum output current of 30 mA, suitable for various signal amplification tasks.
The slew rate of this operational amplifier is 2.3 V/μs, allowing for rapid signal changes in applications.
The input offset voltage for the MCP604T-I/SL is 2 mV, which aids in maintaining accuracy in signal processing.
Yes, this operational amplifier is RoHS compliant, ensuring it meets material safety standards for environmentally sensitive projects.
It is suitable for applications such as sensor interfacing, analog-to-digital conversion drivers, and signal conditioning.
The dimensions of this model are 8.65 mm in length, 3.9 mm in width, and 1.25 mm in height.
This operational amplifier features a dual-channel design, allowing for multi-signal amplification tasks.
