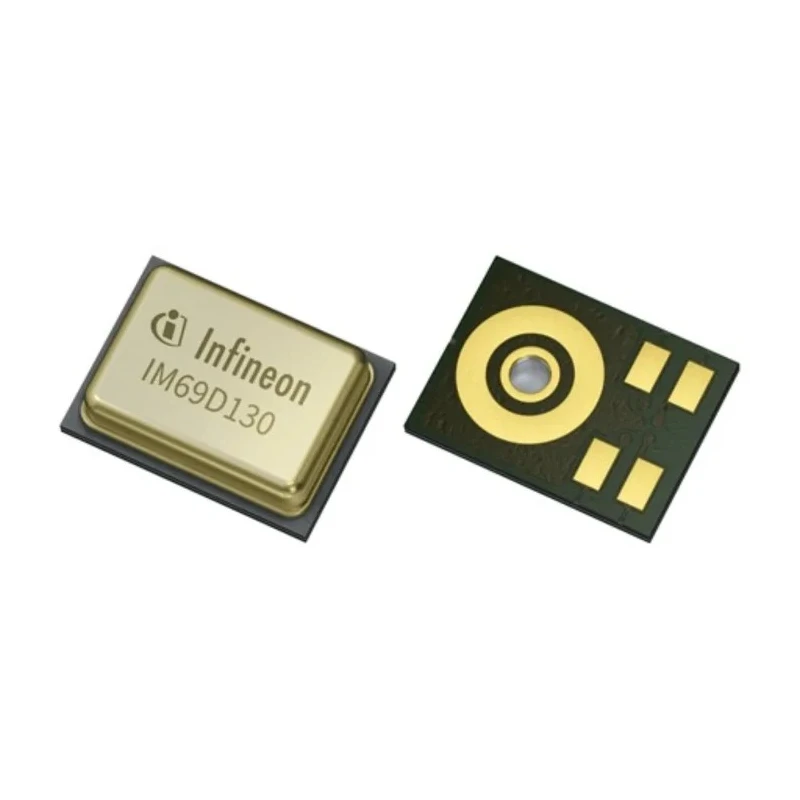

Infineon MEMS Microphone IM69D130V01XTSA1, 5-Pin, Omni-Directional, Digital Output, Surface Mount, LLGA, 3.6V
Specifications
| Country of Origin | India |
|---|---|
| Frequency range | 28Hz to 20kHz |
| Brand | Infineon |
| Height | 1.2mm |
| Length | 4mm |
| Model | IM69D130V01XTSA1 |
| SENSITIVITY | -37dBFS |
| Technology | MEMS Microphone |
| Mount Type | Surface |
| Output type | Digital |
| Maximum Operating Temperature | 70°C |
| Package Type | LLGA |
| Minimum Operating Temperature | -40°C |
| Dynamic Range | 105 dB SPL |
| Signal to Noise Ratio | 69dB |
| Standards/Approvals | IEC 60747 and 60749 or alternatively JEDEC47/20/22 |
| Pin Count | 5 |
| Minimum Supply Voltage | 3.6V |
| Directivity | Omni-Directional |
| Port Location | Bottom |
Key Features
- Designed with MEMS technology for high fidelity digital audio capture.
- 5-pin, LLGA package provides compact mounting for space-critical applications.
- Omni-directional pickup for uniform sensitivity in all directions.
- Digital output ensures integration flexibility for electronic applications.
- Factory calibrated sensitivity (-37 dBFS) for stable, repeatable performance.
- Wide frequency range of 28Hz to 20kHz supports clear, full-bandwidth sound reproduction.
- High signal-to-noise ratio (69dB) for reduced distortion and excellent audio clarity.
- Robust temperature range from -40°C up to 70°C supporting industrial environments.
Product Description
Infineon IM69D130V01XTSA1 MEMS Microphone, 5-pin, omni-directional, surface mount, digital output, LLGA 3.6V, is a high-performance sensor for professional and consumer electronic applications.
This microphone utilizes advanced MEMS technology, offering a digital output format for direct, interference-resistant integration with digital signal processing systems. It is factory calibrated for stable, consistent sensitivity (-37 dBFS) and provides reliable omni-directional sound pickup.
The device is housed in a compact LLGA package (4 mm x 3 mm x 1.2 mm), making it suitable for compact PCB layouts and modern miniaturized designs. Its bottom port enables easy integration on surface-mount PCBs and helps prevent external contamination from dust and particulates.
A wide operating frequency of 28Hz to 20kHz ensures faithful sound reproduction for applications ranging from voice pickup and teleconferencing, to high-quality audio recorders and advanced IoT sensing platforms. With a high signal-to-noise ratio of 69dB and a dynamic range up to 105dB SPL, it delivers crystal-clear audio, exceptional far-field pick-up, and precise audio for voice recognition and sound detection analytics.
The microphone operates at a fixed supply voltage of 3.6V and is designed to handle harsh environments, maintaining specified performance over a -40°C to +70°C range. It is compliant with leading industrial standards like IEC 60747, IEC 60749, and JEDEC47/20/22.
MEMS technology for robust audio detection. 5-pin LLGA surface mount package with bottom port configuration. Omni-directional pattern for 360-degree audio pickup. Suitable for voice-controlled systems, smart speakers, industrial monitoring, and portable recorders.
Well matched for advanced digital signal processing and low-latency, latency-critical designs. Typical industrial use cases include communications devices, voice sensing nodes, home automation, sound-triggered event monitoring, and embedded IoT platforms.
Explore more Microphones and sensor ICs from Infineon at EnvMart for advanced electronics and industrial integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The frequency range of this microphone is from 28Hz to 20kHz, allowing for clear and full-bandwidth sound reproduction.
The microphone has a factory calibrated sensitivity of -37 dBFS, ensuring stable and repeatable performance.
This microphone can operate at a maximum temperature of 70°C, making it suitable for industrial environments.
The omni-directional pickup provides uniform sensitivity in all directions, making it effective for capturing sound from various angles.
This model features a digital output, which allows for direct integration with digital signal processing systems.
The LLGA package measures 4mm in length, 3mm in width, and 1.2mm in height, making it compact for space-critical applications.
The IM69D130V01XTSA1 has a high signal-to-noise ratio of 69dB, which helps reduce distortion and improve audio clarity.
The minimum operating temperature for this model is -40°C, allowing it to function in harsh environments.
This microphone complies with IEC 60747 and IEC 60749 standards, as well as JEDEC47/20/22.
The dynamic range of the IM69D130V01XTSA1 is 105 dB SPL, allowing for exceptional audio performance.
This model supports surface mounting, which is advantageous for compact PCB layouts.
This microphone is suitable for applications such as voice-controlled systems, smart speakers, industrial monitoring, and portable recorders.
