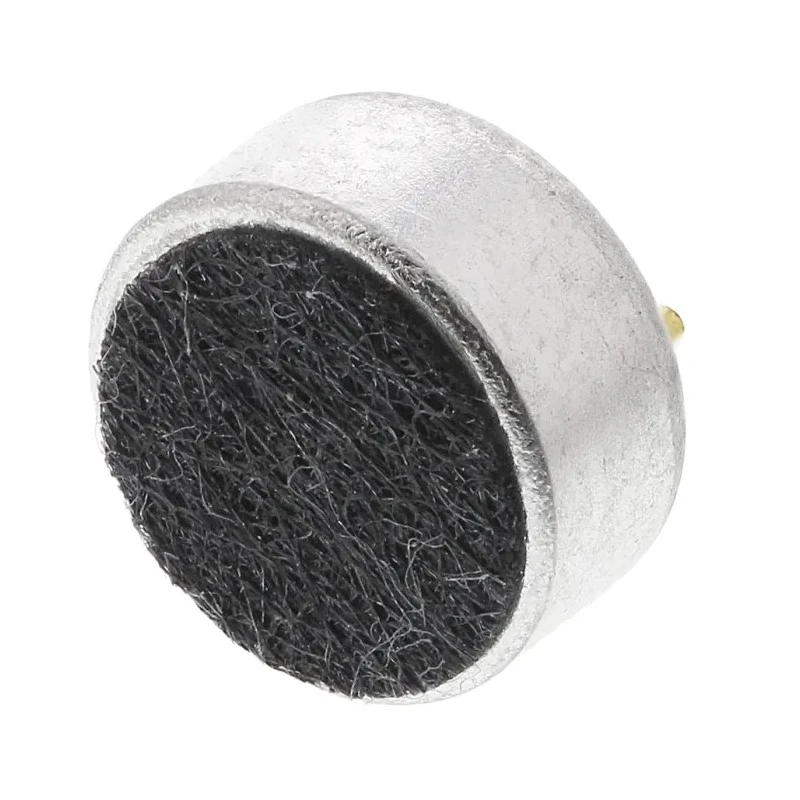

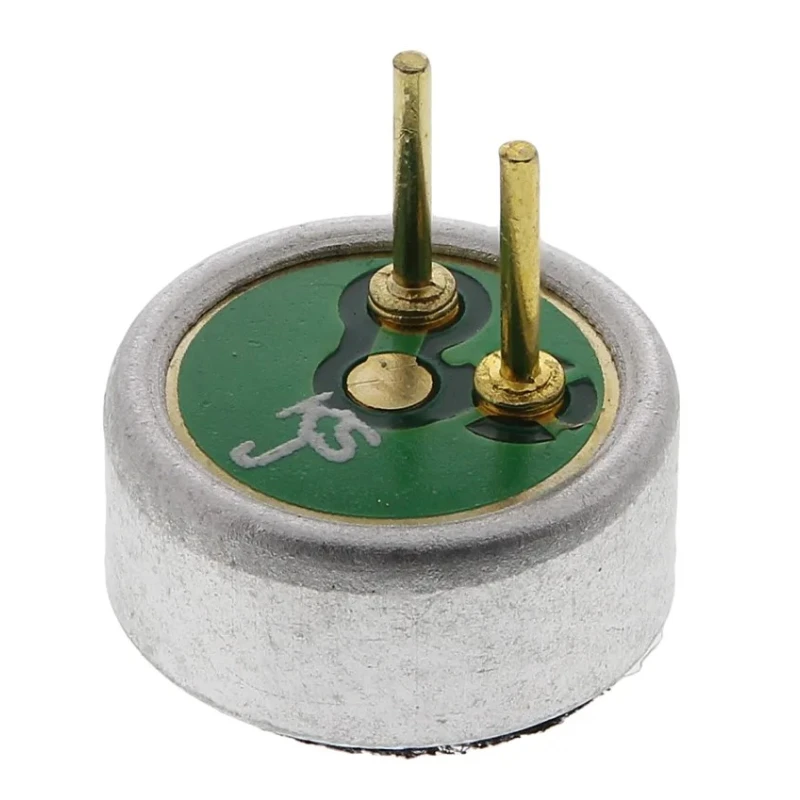

RS PRO Omni-Directional Through Hole 6 mm Microphone Condenser, Sensitivity -38dB, 2V DC, 2.2kΩ Output Impedance 771-7011

RS PRO 771-7011 is a high-quality omni-directional condenser microphone designed for use in a range of electronic and audio devices. This electret condenser microphone insert features a 6 mm diameter and through hole mounting style, enabling easy incorporation onto printed circuit boards in industrial, commercial, and consumer electronic applications.

Operating at a low voltage of 2 V DC and requiring a nominal supply current of 400 μA, this microphone condenser is highly energy efficient and suitable for battery-powered or low-power equipment. The device offers an output impedance of 2.2kΩ and a broad frequency response spanning 20 Hz to 20 kHz, faithfully capturing audio signals with clarity and precision. Its omni-directional directivity ensures uniform sound pickup from all directions, ideal for ambient sound detection and voice capture.

Robustly designed to function across temperatures from -20°C up to 70°C, the condenser microphone is reliable in varied environments, including both indoor and outdoor installations. The solder termination style guarantees secure connections and mechanical strength in PCB mounting.

The microphone’s signal to noise ratio of 58 dB ensures minimal background noise interference, making it suitable for applications in communications equipment, audio recording devices, sound level meters, instrumentation, and industrial audio sensing.

Omni-directional directivity provides consistent audio pickup in all directions. Standard operating voltage of 2 V DC enables low power operation. Output impedance of 2.2kΩ compatible with diverse audio circuits. Compact size of 6 mm diameter and 2.7 mm height fits miniature assemblies.

Wide frequency response from 20 Hz to 20 kHz covers all audio ranges. Signal to noise ratio at 58 dB ensures clear audio signals with low noise. Wide operating temperature range from -20°C to 70°C for versatile installations.

Through hole mounting style enables robust PCB assembly. Low supply current of 400 μA supports energy-efficient designs.

This condenser microphone from RS PRO is an ideal component for electronics manufacturers looking to integrate reliable and efficient microphone solutions for industrial, laboratory, medical, commercial audio, and communication equipment. Its compact footprint and excellent audio properties make it a versatile choice for sound detection and recording tasks.
