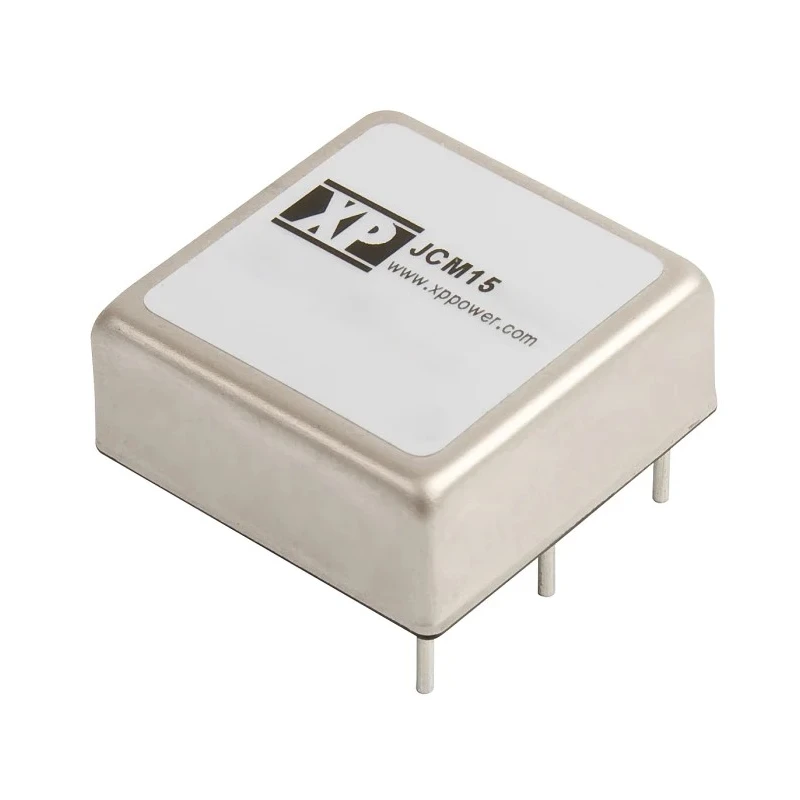

XP Power DC-DC Converter 20W, 5V/-5V Output, 1.5A, 9 - 18V Input, Through Hole, DIP Package, JCM1524D05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCM DC/DC Converter, 5V, -5 V/ 1 |
| Brand | XP Power |
| Efficiency | 85% |
| Length | 25.4mm |
| Model | JCM1524D05 |
| Depth | 9.9mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCM |
| Maximum Operating Temperature | 70°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 110000h |
| Number of outputs | 2 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 18V |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 1.5A |
| Output Voltage Adjustment Range | 9/18 V |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides dual output voltages of 5V and -5V for versatile circuit requirements.
- Capable of delivering up to 1.5A output current on each output channel.
- Wide input voltage range from 9V to 18V for flexible power supply compatibility.
- Designed for through-hole mounting in DIP package for easy PCB integration.
- Offers high efficiency operation up to 85% for energy savings and reduced heat.
- Features strong input-to-output isolation rated at 1.6kV DC for safety and reliability.
- Supports operation in extreme environments from -40°C to 70°C ambient temperature.
- Suitable for use in industrial, telecom, and embedded system applications.
Product Description
XP Power JCM1524D05 is a compact isolated DC-DC converter engineered to provide dual output voltages of 5V and -5V, supporting a maximum output current of 1.5A. The unit offers a power output of up to 20W, making it ideal for applications demanding tightly regulated supplies and isolation in industrial, telecom, and embedded systems. It is housed in an industry-standard DIP package intended for through-hole mounting, which simplifies installation on PCBs.
With a wide 2:1 input voltage ratio, the converter operates efficiently from any supply between 9V to 18V DC, providing flexibility for a variety of system voltages. The JCM1524D05 achieves up to 85% conversion efficiency, which helps minimize energy loss and thermal management requirements for space-constrained designs.
Provides 5V and -5V regulated outputs with a combined output power of 20W. 1.5A maximum output current supports demanding loads. Wide input voltage range ensures compatibility with common DC supply rails. High isolation voltage of 1.6kV DC protects sensitive circuits and meets safety requirements.
Operates reliably across a wide thermal range from -40°C up to 70°C, supporting use in harsh environments. Industry-standard DIP form factor enables straightforward replacement or integration in existing layouts. Suited for board-mount power supply needs in telecom equipment, process control systems, test instruments, and more.
The JCM15 series is recognized for its high power density and robust design. Its dual-output capability is especially useful for powering operational amplifiers, data acquisition interfaces, and analog signal chains in isolation-critical designs. The component’s performance and construction help ensure long-term dependability for mission-critical devices.
Choose the XP Power JCM1524D05 DC-DC Converter for demanding power supply applications where reliability, dual isolated outputs, and efficient operation are paramount. Explore more DC-DC Converters and advanced power solutions from XP Power and other global brands in the EnvMart Electronics & Electricals category.
