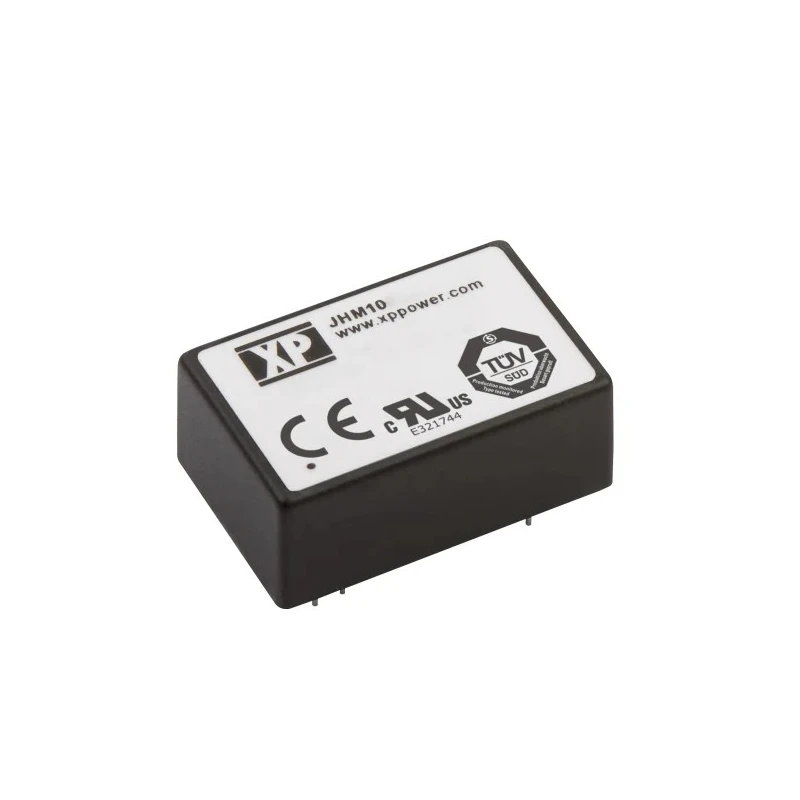

XP Power DC-DC Converter 15W, Dual Output ±12V, 825mA, 18 - 36V DC Input, Through Hole JHM15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JHM15 DC/DC Converter, 12V, -12 V/ 825 mA |
| Brand | XP Power |
| Efficiency | 87% |
| Length | 40.6mm |
| Model | JHM15 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JHM15 |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 825mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 4kV ac |
Key Features
- Delivers dual regulated outputs of +12V and -12V with up to 825mA current per channel.
- Wide input voltage range from 18V to 36V DC, offering versatility in power supply arrangements.
- Industry-standard 24-pin DIP through-hole package simplifies integration into PCB designs.
- Compact footprint of 40.6mm x 25.4mm x 10.2mm for space-constrained installations.
- High efficiency up to 87% maximizing energy savings and reducing thermal management needs.
- 4kV AC reinforced isolation for critical safety and compliance in medical electronics.
- Operating temperature range from -40°C to 80°C ensures robust performance in harsh environments.
- 15W maximum output power supports a range of demanding industrial loads.
Product Description
The XP Power JHM1524D12 is a high-performance 15W DC-DC converter designed to deliver reliable dual output voltages of +12V and -12V with up to 825mA output current per channel. Featuring a wide input voltage range of 18V to 36V DC, it is ideally suited for industrial, medical, or instrumentation applications that demand robust power conversion and stringent electrical isolation.
This model is housed in a compact, industry-standard 24-pin DIP through-hole package with a space-saving footprint of 40.6mm by 25.4mm and a low profile of 10.2mm, making it easy to integrate into dense PCB designs. Its high efficiency, reaching up to 87%, supports energy-efficient system design and reduces the need for extensive thermal management.
Delivers dual outputs of +12V and -12V regulated at up to 825mA per channel, providing flexibility for powering both analog and digital circuits. Accepts input voltages from 18V to 36V DC, accommodating a wide array of industrial supply rails and backup battery voltages.
Reinforced isolation of 4kV AC ensures safety and regulatory compliance, especially important in medical installations and critical measurement equipment. Exceptional operating temperature range from -40°C to +80°C enables reliable use in challenging environmental conditions.
Meets international medical standards including IEC60601-1 (3rd Edition) and offers extremely low 2 µA patient leakage current, making it suitable for embedded medical devices. Through hole mounting simplifies prototyping and volume manufacturing for OEMs and system integrators.
Typical applications include medical and diagnostic equipment, industrial control systems, laboratory instrumentation, and safety-critical embedded electronics. Compact package optimizes board layout and supports dense power distribution architectures.
The XP Power JHM1524D12 DC-DC converter is an excellent choice for engineers and manufacturers needing a reliable, medically compliant and compact power solution for dual rail applications. Explore other high-quality XP Power converters and related power supply solutions in the DC-DC Converter category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC.
It delivers dual regulated outputs of +12V and -12V, with up to 825mA current per channel.
The maximum output power of this unit is 15W.
It has a high efficiency rating of up to 87%.
The dimensions are 40.6mm in length, 25.4mm in width, and 10.2mm in depth.
This model uses a through-hole mounting type, which simplifies integration into PCB designs.
The isolation voltage is 4kV AC, ensuring safety and compliance, especially in medical applications.
It operates within a temperature range of -40°C to +80°C.
This model features two outputs.
The package type is a 24-pin DIP, which is industry-standard for this type of component.
It is suitable for medical and diagnostic equipment, industrial control systems, and laboratory instrumentation.
The output current per channel is 825mA.
