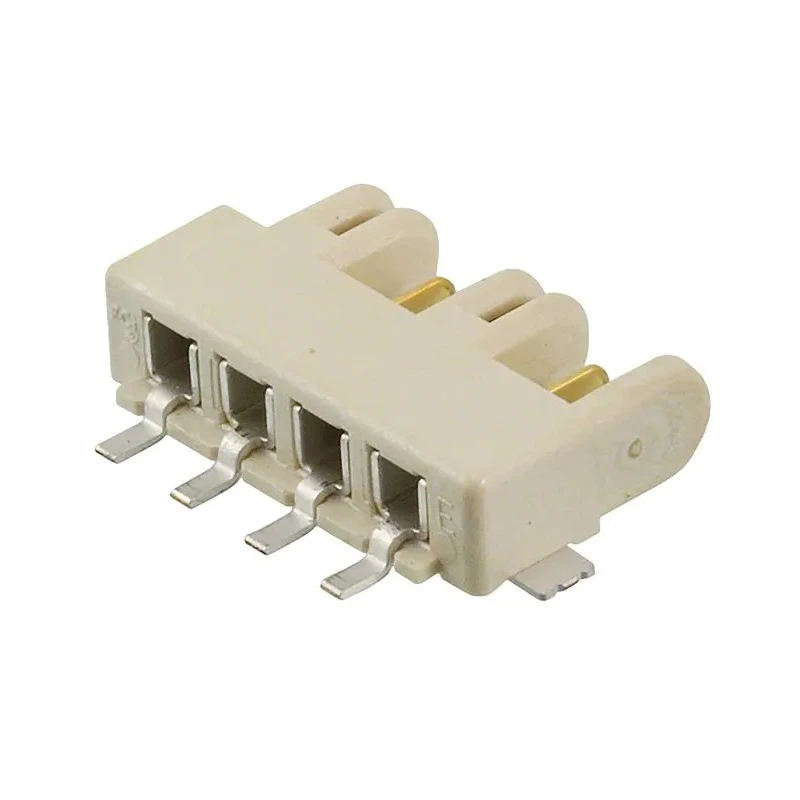

Amphenol Communications Solutions RotaConnect Series Right Angle Surface PCB Header, 4 Contacts, 3 mm Pitch 10120045-401LF

Amphenol Communications Solutions presents the RotaConnect Series PCB Header, model 10120045-401LF, designed for right angle surface mounting and optimal board-to-board connections. This high-quality connector offers four contacts spaced at a 3 mm pitch, built with gold-plated copper alloy for reliable electrical performance and corrosion resistance.

The hermaphroditic, rotatable design eliminates the need for traditional headers and receptacles, enabling mating at any angle between +90° and -60°. The shrouded housing, constructed from high temperature thermoplastic, provides robust protection for contacts, aids in self-guided alignment, and supports reflow soldering. Locating pegs allow precise positioning and reduce the need for hold downs, optimizing PCB space utilization.

Rotatable hermaphroditic connector design for flexible configuration. Four gold-plated male contacts for stable, high-current performance (up to 5A at 125V). Surface mount type with shrouded housing for accurate PCB alignment and contact protection.

Dual beam contact system delivers resistance to vibration and high reliability. Temperature tolerance ranging from -40°C to 125°C extends usage to demanding environments. Ideal for industrial control boards, sensors, LED strips, automotive applications, and signage lighting.

Meets RoHS compliance, ensuring environmental safety.

This RotaConnect PCB Header is especially suited for applications requiring versatile connections - such as perpendicular, coplanar, or angled setups - offering significant design freedom. The product’s robust features support industrial, laboratory, and electronic manufacturing environments, facilitating efficient, durable, and space-saving PCB assembly.
