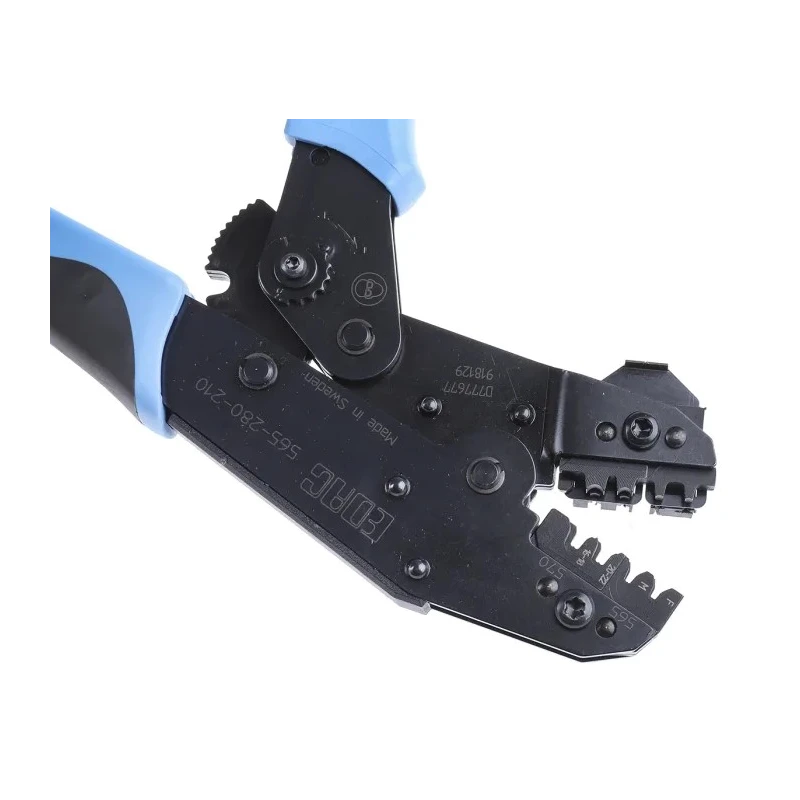

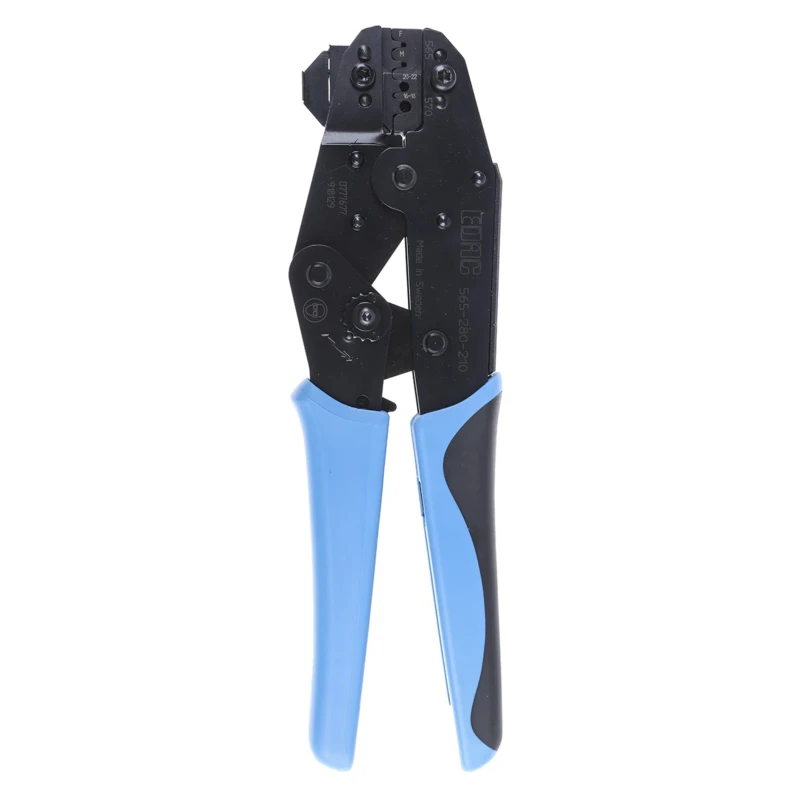

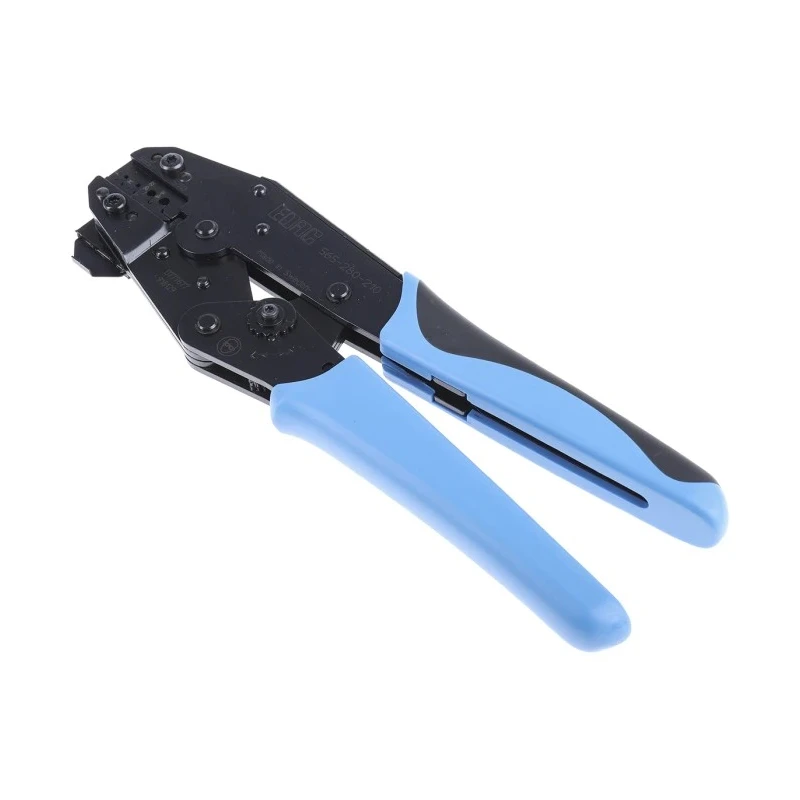

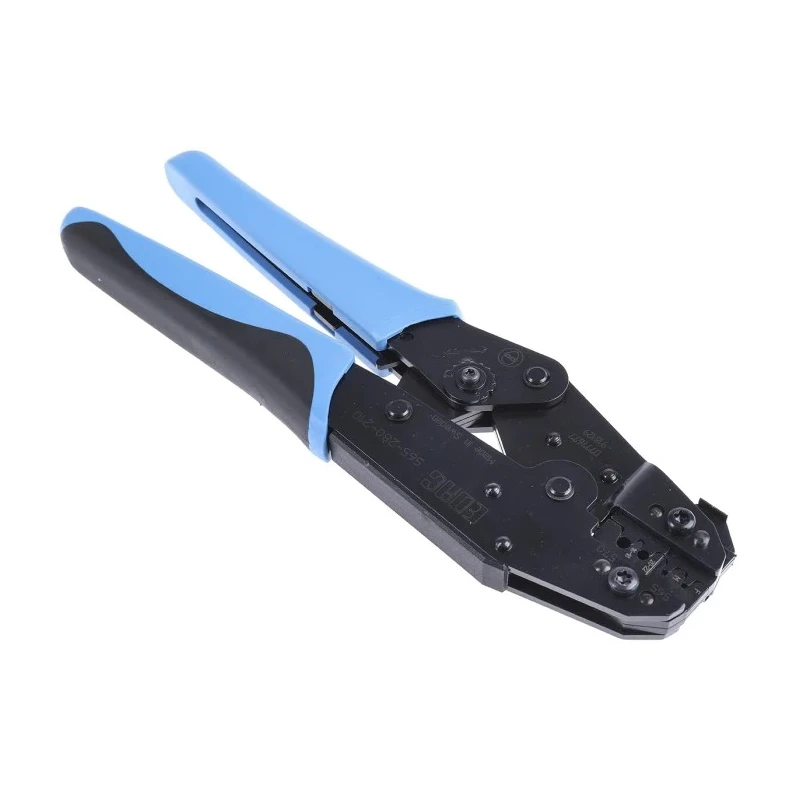

EDAC 560 and 572 Series Crimp Tool for 565 and 570 Series Connector Contacts, Plain Handle, 7.85mm Length, 565-280-210
Specifications
| Country of Origin | China |
|---|---|
| Brand | EDAC |
| Handle Type | Plain |
| Overall Length | 7.85mm |
| Series | 560 and 572 |
| Sub Type | Crimp Tool |
| For Use With | 565 Series Connector Contacts, 570 Series Connector Contacts |
| Standards/Approvals | UL 94V-0, IP52, SAE USCAR-2, IP67 |
Key Features
- Designed for 565 Series and 570 Series connector contacts.
- Precision ratchet mechanism ensures dependable crimps.
- Compatible with wire sizes from 16 AWG to 28 AWG.
- Manufactured from cold rolled steel for enhanced durability.
- Plain handle with tough thermoplastic cover provides comfortable grip.
- Complies with key standards including UL 94V-0, IP52, SAE USCAR-2, and IP67.
- Overall tool length is 7.85mm, suitable for precise assembly environments.
- Non-adjustable ratchet for consistent crimp quality.
Product Description
The EDAC 565-280-210 is a professional-grade crimp tool specifically designed for terminating contacts in the EDAC 565 and 570 Series connectors. Built to meet the demanding requirements of industrial, laboratory, and electronic assembly environments, this tool delivers precision and reliability for technicians and engineers.
Featuring a robust construction from cold rolled steel, the crimp tool provides long service life while the thermoplastic handle covering ensures ergonomic comfort during extended use. The tool's plain handle design is engineered for efficient use in repetitive crimping operations, reducing fatigue and promoting consistent results.
Designed to crimp a wide range of wire sizes, from 16 AWG up to 28 AWG, the EDAC 560 and 572 Series tool is ideal for assembling waterproof connector contacts in both IP67-rated and standard applications. Its dependable ratchet mechanism ensures that each crimp is secure and repeatable, which is critical for signal integrity and long-term durability in cable harness assembly.
Compliant with industry standards including UL 94V-0, IP52, SAE USCAR-2, and IP67, this tool assures reliable operation in challenging environments such as automotive, industrial control panels, and field wiring. The compact overall length of 7.85mm allows access to tight workspaces without compromising leverage or performance.
Engineered for use with 565 Series and 570 Series pin and receptacle contacts. Offers precise crimping of insulated and uninsulated terminals. Well-suited for manufacturing, R&D laboratories, on-site maintenance, and connector assembly shops.
High-resistance to wear and contamination due to robust steel and well-fitted moving parts. Meets international electrical equipment standards, ensuring compatibility and safety in global operations. Plain handle design with thermoplastic cover reduces operator fatigue.
Designed for ease of maintenance and long-term productivity in cable and connector assembly lines.
This tool is a best-in-class solution for assembling EDAC connector contacts, supporting high-reliability electrical and signal connections in industrial equipment, control cabinets, and automotive wiring. For similar solutions, explore other professional crimp tools in the EDAC product range within the Crimping Tools category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp tool is designed to crimp wire sizes from 16 AWG to 28 AWG.
It is specifically designed for use with the 565 Series and 570 Series connector contacts.
The overall length of this crimp tool is 7.85mm, allowing it to access tight workspaces effectively.
The tool is manufactured from cold rolled steel, providing enhanced durability.
It features a plain handle design with a tough thermoplastic cover for a comfortable grip.
It complies with UL 94V-0, IP52, SAE USCAR-2, and IP67 standards, ensuring reliable operation in various environments.
The tool features a non-adjustable ratchet mechanism that ensures consistent crimp quality with each use.
This model is well-suited for manufacturing, R&D laboratories, on-site maintenance, and connector assembly shops.
Yes, it is engineered to crimp both insulated and uninsulated terminals effectively.
It is designed for use in industrial, laboratory, and electronic assembly environments, including automotive applications.
The plain handle design with a thermoplastic cover reduces operator fatigue during extended use, promoting efficiency.
It is intended for terminating contacts in the EDAC 565 and 570 Series connectors, ensuring secure electrical connections.
