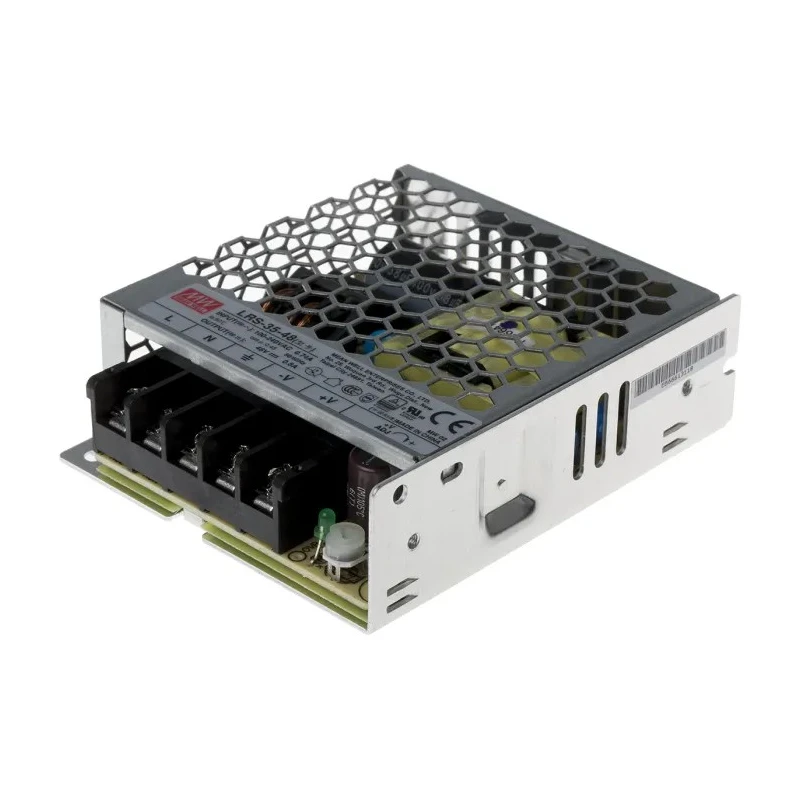

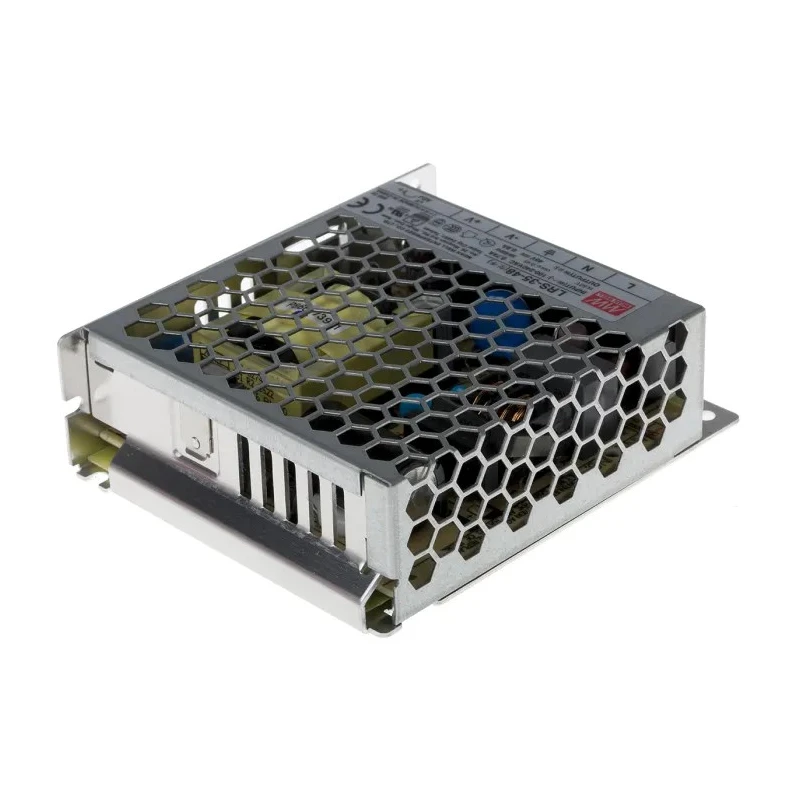

MEAN WELL Switching Power Supply 48V DC 38W Single Output, Chassis Mount, LRS-35-48

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switching Power Supply 48V DC 38W Single Output, Chassis Mount, LRS-35-48

Name: MEAN WELL Switching Power Supply 48V DC 38W Single Output, Chassis Mount, LRS-35-48
Brand: MEAN WELL
SKU: 90141
Price: 20.22 USD
Availability: InStock



Category Switching Power Supply Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	38W
Efficiency	89%
Length	99mm
Model	LRS-35-48
Depth	30mm
Gross Weight	230g
Width	82mm
Mount Type	Chassis
Series	LRS-35
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	373, 264V dc
Maximum Output Voltage	48V dc
SMPS Output Current	800mA
Minimum Input Voltage	85V ac

Key Features

Provides single output of 48V DC at 38W power rating.
Highly efficient design with up to 89% efficiency and low no load power consumption.
Chassis mount type for versatile installation across industrial settings.
Wide input voltage range of 85V AC to 264V AC and up to 373V DC supported.
Robust metallic mesh casing allows for effective heat dissipation via air convection.
Suited for industrial automation, control systems, and household applications.
Features 5G anti-vibration capability for reliable service in challenging environments.
Compact dimensions of 99 x 82 x 30 mm and lightweight at 230g for easy integration.

Product Description

MEAN WELL LRS-35-48 Switching Power Supply is a single output, enclosed PSU designed to deliver efficient and reliable DC power solutions in demanding environments. Boasting a 48V DC output and a maximum power rating of 38W, this compact power supply is ideal for use in a range of industrial automation, building control, and household electronic applications.

The LRS-35-48 is engineered with a universal AC input range of 85V to 264V, as well as DC input tolerance up to 373V, ensuring broad compatibility and stable performance worldwide. The innovative chassis mount and efficient metallic mesh enclosure facilitate excellent heat dissipation through air convection, thus maintaining optimal operating temperatures and extending product lifetime.

Single 48V DC output with 800mA output current for versatile electronics and automation setups. Energy-efficient design rated up to 89% efficiency and less than 0.2W power usage on no load to reduce overall energy costs.

5G vibration resistance and sturdy construction assure uninterrupted operation even in high-vibration industrial or mechanical environments. Compact form factor measures 99 mm length, 82 mm width, and 30 mm depth for seamless integration into electrical panels or control cabinets.

Tested to rigorous standards and safety approvals, making it suitable for both industrial and household device integration.

This model is protected against overcurrent, overvoltage, and short-circuit conditions, resulting in reliable, maintenance-friendly operation. The LRS-35-48 supports a wide temperature range from -30°C up to 70°C, giving system integrators flexibility to deploy in harsh or temperature-variable locations.

Applications span across industrial automation, machinery and equipment, control panels, smart building systems, communication gear, and consumer household devices. Industries such as manufacturing, energy management, and robotics can benefit from this robust, energy-conscious power supply solution.

Choose MEAN WELL LRS-35-48 for its blend of safety, efficiency, and proven performance in critical industrial applications. For more options and related accessories, browse the full Switching Power Supply selection from MEAN WELL and other leading brands at EnvMart.
