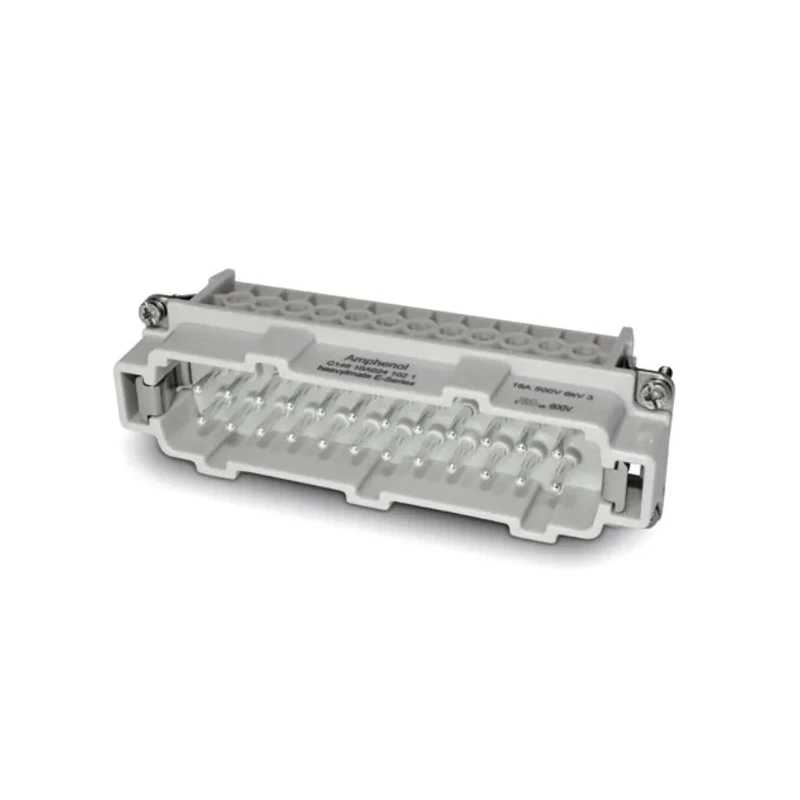

Amphenol Industrial Heavy Duty Power Connector Insert, Male, 16A, 24 Contacts, 500V, Heavy Mate C146 Series C146 10A024 102 1
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 500V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Model | C146 10A024 102 1 |
| IP Rating | IP00 |
| Mount Type | Cable |
| Contact Material | Copper Zinc Alloy |
| Current Rating | 16A |
| Series | Heavy Mate C146 |
| Sub Type | Male Insert |
| Number of Rows | 2 |
| For Use With | Connectors |
| Pole Format | 24+PE |
| Contact Plating | Silver |
| Number of Contacts | 24 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 4mm² |
Key Features
- Heavy Mate C146 Series, designed for demanding industrial power connections.
- Rated for up to 16A current and 500V voltage for reliable operation.
- 24 contacts plus PE, copper zinc alloy material with silver contact plating.
- Male insert form factor suitable for cable mounting.
- IP00 protection level, intended for integration inside enclosures and panels.
- Supports wire sizes from 0.5mm² to 4mm² for flexible wiring solutions.
- Straight orientation, two rows, designed for robust mating.
- Operating temperature range from -40°C to +125°C.
Product Description
Amphenol Industrial C146 10A024 102 1 Heavy Duty Power Connector Insert offers a robust and reliable solution for power connections in demanding industrial environments. This insert belongs to the Heavy Mate C146 Series and is engineered for applications requiring secure, high-current transmission with multiple contacts.
This male connector insert features 24 contacts plus PE, allowing for versatile power distribution. It is rated for a maximum current of 16A and a rated voltage of 500V, ensuring dependable performance in heavy-duty installations. The contacts are made from copper zinc alloy with silver plating, providing exceptional conductivity and corrosion resistance.
Heavy Mate C146 Series, ideal for power and signal distribution in industrial machinery, automation equipment, and electrical panels. 16A current rating and 500V voltage allow for high-capacity power transfer. 24 contacts plus PE, with a straight orientation for streamlined cable routing.
Copper zinc alloy contact material, silver-plated contacts for durability and low contact resistance. IP00 protection grade, recommended for use within protective enclosures. Supports maximum wire size of 4mm² and minimum wire size of 0.5mm², accommodating a range of cable specifications.
Temperature range from -40°C to +125°C ensures suitability for diverse industrial environments. Designed for cable mounting and intermateability with third-party connector housings.
Applications include factory automation, power distribution systems, machinery control units, transportation equipment, and construction power interfaces. Its straight configuration and compliance with standard connector norms make integration easy across various commercial and industrial setups.
Browse more Heavy Duty Power Connector Inserts and discover Amphenol Industrial's full range of power connectivity solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert has a current rating of 16A and a voltage rating of 500V, making it suitable for high-capacity power transfer in industrial applications.
The Heavy Mate C146 model features 24 contacts plus a protective earth (PE), allowing for versatile power distribution.
The contacts are made from copper zinc alloy and are silver-plated, which enhances conductivity and corrosion resistance.
It operates within a temperature range of -40°C to +125°C, making it suitable for diverse industrial environments.
The connector insert has an IP00 protection rating, indicating that it is intended for use within protective enclosures and panels.
This model supports wire sizes ranging from 0.5mm² to 4mm², accommodating a variety of cable specifications.
The connector insert features a straight orientation with two rows, designed for streamlined cable routing and robust mating.
The IP00 rating indicates that this connector is not designed for outdoor use and should be integrated within protective enclosures.
It is suitable for applications including factory automation, power distribution systems, machinery control units, and transportation equipment.
This model is designed for cable mounting, allowing for easy integration into various setups.
The pole format of this connector is 24+PE, providing multiple contact points for power and signal distribution.
The country of origin for this connector insert is the Czech Republic.
