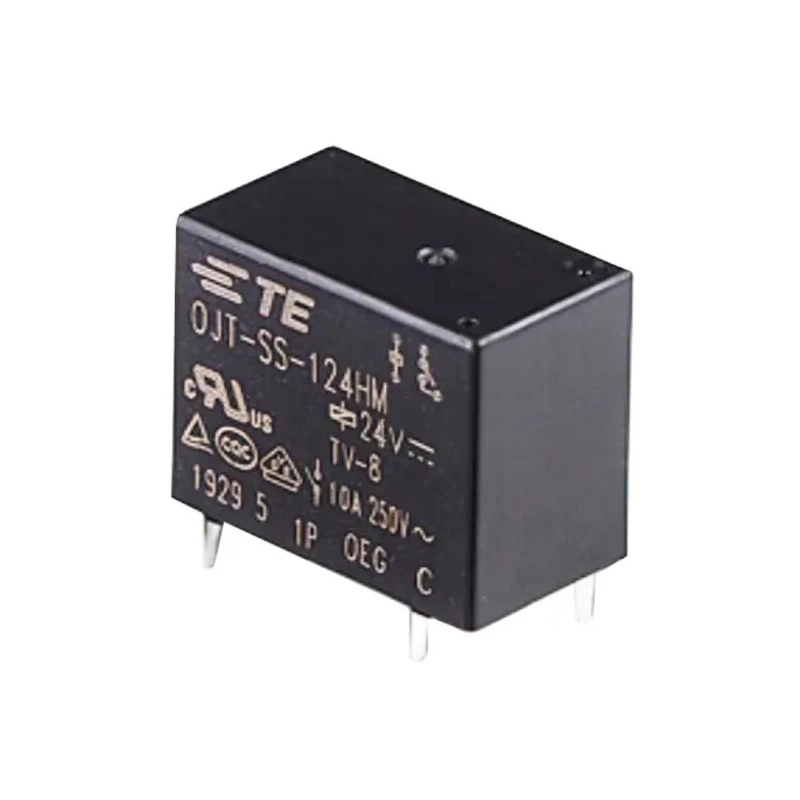

TE Connectivity OJT Series PCB Non-Latching Relay, 24V DC Coil, 10A SPST, Compact Silver Tin Oxide Contacts 2071509-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.8mm |
| Length | 18.2mm |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide |
| Series | OJT |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | IEC 62368-1, REACH, RoHS |
| Coil Resistance | 1.3kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 450mW |
| Switching Power | 450mW |
Key Features
- PCB mountable relay featuring a 24V DC coil voltage.
- Single pole single throw (SPST) contact configuration.
- Supports up to 10A switching current and 250V AC switching voltage.
- Constructed with silver tin oxide contact material for enhanced conductivity and durability.
- Operating temperature range from -30°C to 85°C suitable for varied environments.
- Solder terminal type for easy integration onto PCBs.
- 450mW coil power and 1.3kΩ coil resistance for efficient operation.
- Compliant with IEC 62368-1, RoHS and REACH standards.
Product Description
TE Connectivity's OJT Series PCB Non-Latching Relay 2071509-1 offers robust performance for demanding electronic and industrial applications, equipped with a 24V DC coil and single pole single throw (SPST) switching configuration.
This relay delivers high switching capability with a 10A current and 250V AC voltage, ensured by the use of silver tin oxide contacts for superior conductivity and durability over long life cycles. The coil resistance of 1.3kΩ and coil power of 450mW allow dependable actuation within a broad -30°C to 85°C operating range, covering both consumer appliances and harsh industrial environments.
PCB mountable relay featuring a 24V DC coil voltage. Single pole single throw (SPST) contact configuration for straightforward switching. Supports up to 10A switching current and 250V AC switching voltage. Silver tin oxide contact material enhances performance and longevity.
Compact form factor: 18.2mm (L) x 10.2mm (W) x 14.8mm (H). Wide operating range: -30°C to 85°C. Solder terminal for easy PCB assembly. 450mW coil power, 1.3kΩ resistance ensure reliable operation. IEC 62368-1, RoHS and REACH compliant for global industrial standards.
Suitable for washing machines, refrigeration units, cooking appliances, power supply controls and industrial automation.
The relay's UL TV-8 rating and high inrush capability make it a preferred choice for applications with substantial initial power demands. Its PCB-mount and solder terminal type simplify integration, streamlining electronic assembly cycles for OEMs and maintenance teams.
This relay is designed for use in environments where reliability and endurance are crucial, such as white goods, commercial power supply systems, and industrial automation controls. The compliance with international standards assures optimal safety and environmental responsibility.
Explore TE Connectivity's full range of relays for more advanced or specialized solutions. For similar PCB relays and switching components, browse the Power Relay category in Electronics & Electricals at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay features a coil voltage of 24V DC.
It supports a maximum switching current of 10A.
This relay has a single pole single throw (SPST) contact configuration.
The relay can switch AC voltages up to 250V.
The dimensions are 18.2mm in length, 10.2mm in width, and 14.8mm in height.
It operates within a temperature range of -30°C to 85°C.
It uses solder terminals for easy integration onto PCBs.
The coil resistance is 1.3kΩ.
The coil power consumption is 450mW.
It is compliant with IEC 62368-1, RoHS, and REACH standards.
The contacts are made of silver tin oxide, enhancing conductivity and durability.
This relay is suitable for applications such as washing machines, refrigeration units, cooking appliances, and industrial automation.
