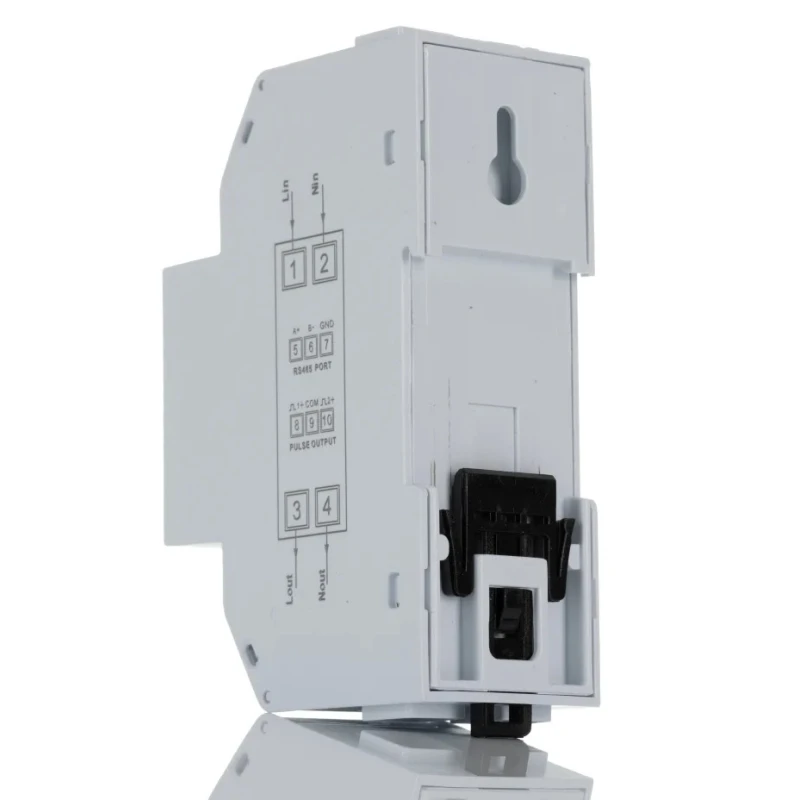

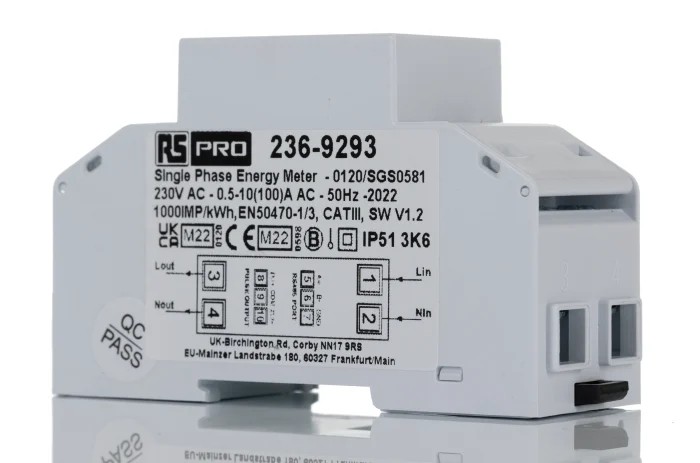

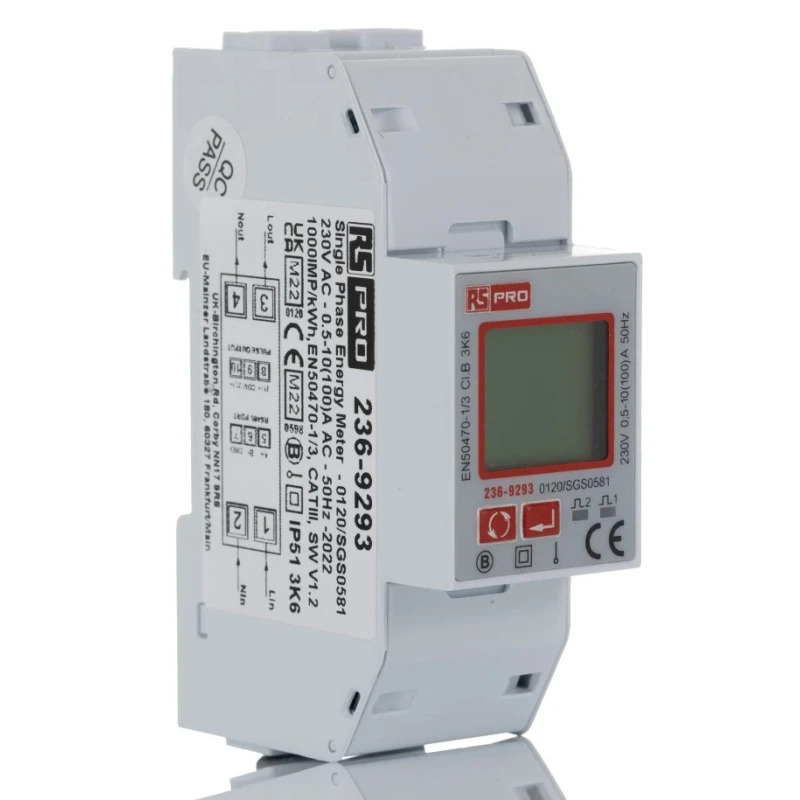

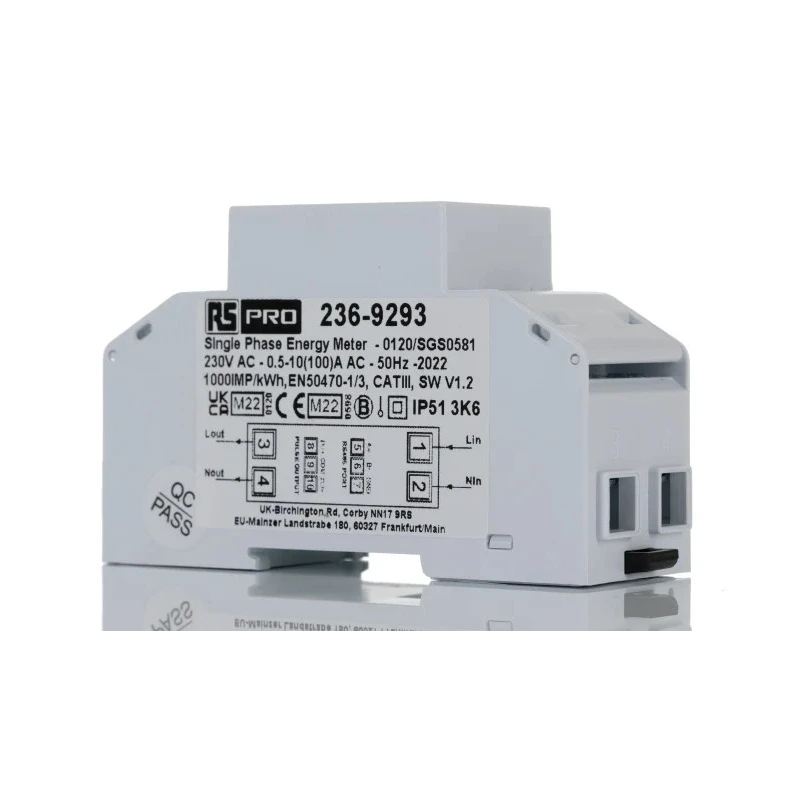

RS PRO 1 Phase LCD Backlight Energy Meter with Pulse Output and RS485 Modbus 236-9293
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD Backlight |
| Brand | RS PRO |
| Model | 236-9293 |
| Depth | 63mm |
| Number of inputs | 2 |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Meter Type | Energy Meter |
| Number Of Digits | 7 |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 2 |
| Number of Phases | 1 |
Key Features
- Measures electrical power quality parameters for single phase networks.
- Direct connection to 100A AC circuits without current transformers.
- Features a backlit LCD display with 7 digits for clear readings.
- Supports 16 different measuring parameters including import and export kWh.
- Equipped with built-in pulse outputs and RS485 Modbus RTU for remote monitoring integration.
- Operates reliably between -25°C and 55°C.
- Complies with Class 1 IEC 62053-21 and IEC 60068-2-6 standards.
- MID B&D approved with EC Type Examination Certificate Number 0120/SGS0581.
Product Description
RS PRO 236-9293 is a state-of-the-art 1 Phase LCD Backlight Energy Meter designed for precise power quality measurement and monitoring in industrial and commercial electrical installations. It features an advanced microprocessor that facilitates accurate readings with a 7-digit LCD backlit display suitable for usage in various harsh environments with operating temperatures ranging from -25°C up to 55°C.
This multifunction energy meter enables direct connection to single-phase AC circuits with a maximum current of 100A, eliminating the need for external current transformers. It supports measuring and displaying up to 16 important electrical parameters including import and export energy (kWh), active and reactive power, and power factor with 1% accuracy.
Equipped with built-in pulse output and RS485 Modbus RTU communication, the meter allows seamless integration with Building Management Systems (BMS) and remote data acquisition systems. The communication settings are password protected to ensure secure configuration.
The product holds MID B&D Approval (certificate number 0120/SGS0581), ensuring compliance with European measurement standards. It meets IEC 62053-21 Class 1 accuracy and IEC 60068-2-6 robustness standards suitable for demanding industrial applications.
Measures single phase electrical parameters with high accuracy. Direct 100A AC connection without current transformers. Backlit LCD for easy readability in all lighting conditions. Supports pulse output and RS485 Modbus RTU for automation.
Wide operating temperature range from -25°C to 55°C. Complies with industrial standards IEC 62053-21 and IEC 60068-2-6. MID type approved for sub billing and tariff applications.
This Energy Meter is suitable for industrial power monitoring, laboratory applications, commercial power consumption measurement, and integration within HVAC, manufacturing, and process control systems. Its robust design and versatile communication options make it ideal for modern energy management solutions.
Explore more reliable energy measuring instruments and power monitoring solutions in the Industrial Machines & Instruments category of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This energy meter can handle a maximum current of 100A for direct connection to single-phase AC circuits without the need for current transformers.
It supports measuring and displaying up to 16 different electrical parameters, including import and export kWh, active and reactive power, and power factor.
The energy meter operates reliably within a temperature range of -25°C to 55°C.
It is equipped with built-in pulse outputs and RS485 Modbus RTU communication for seamless integration with Building Management Systems and remote data acquisition systems.
It features a backlit LCD display with 7 digits, allowing for clear readings in various lighting conditions.
It is MID B&D approved and complies with IEC 62053-21 Class 1 accuracy and IEC 60068-2-6 robustness standards.
The depth of this model is 63mm.
This energy meter has 2 inputs and 2 outputs.
It is suitable for industrial power monitoring, laboratory applications, commercial power consumption measurement, and integration within HVAC and manufacturing systems.
Yes, the communication settings for this model are password protected to ensure secure configuration.
This is a 1 Phase energy meter designed for measuring electrical power quality parameters in single-phase networks.
Class 1 compliance indicates that the energy meter meets high accuracy standards as specified by IEC 62053-21, making it suitable for precise energy measurement applications.
