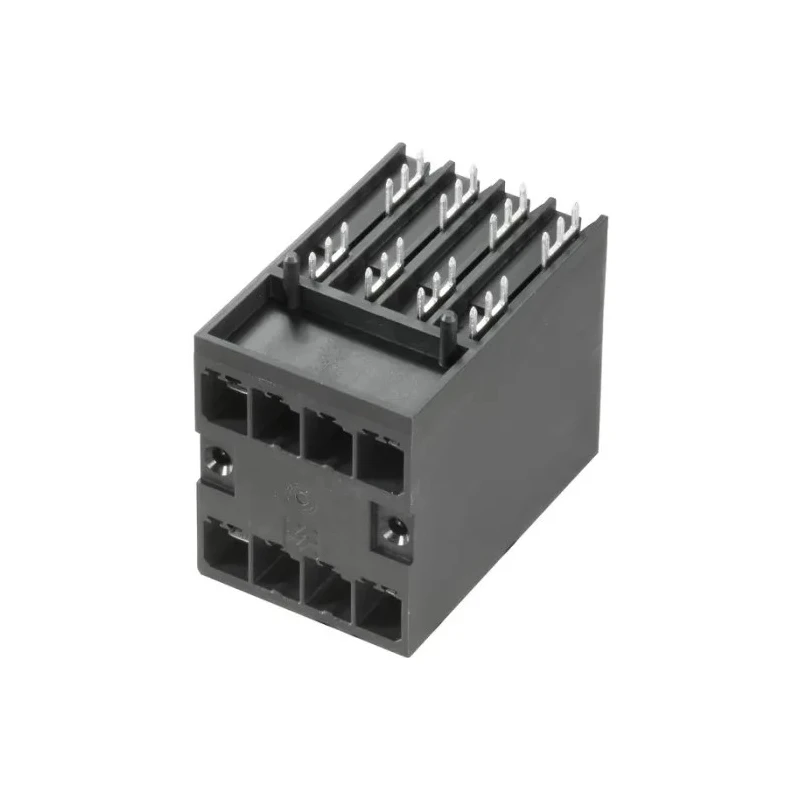

Weidmüller BV/SV 7.62HP PCB Connector, 8 Contacts, 7.62 mm Pitch, 2 Row, Polyamide, Male, 1000V, 30A, 1543320000
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 1000V |
| Brand | Weidmüller |
| Colour | Black |
| Current | 30A |
| Length | 3.2mm |
| Depth | 48.9mm |
| Width | 48.9mm |
| Housing Material | Polyamide Powder-Filled with Glass Particles |
| Series | BV/SV 7.62HP |
| Number of Rows | 2 |
| Pitch | 7.62mm |
| Standards/Approvals | Crlus, RoHS |
| Number of Contacts | 8 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- Premium PCB connector for high-current, high-performance board applications.
- Comprises 8 contacts arranged in 2 rows for effective circuit connectivity.
- Designed with polyamide powder-filled, glass particle housing for durability.
- Supports a pitch of 7.62 mm and operates up to 1000V and 30A current.
- Features male connector gender and solder wire connection method.
- Suitable for use with book-size modules (50 mm wide and above).
- Integrated mounting option allows secure attachment to housing wall.
- Complies with Crlus and RoHS standards for operational safety and reliability.
Product Description
Weidmüller BV/SV 7.62HP Series PCB Connector 1543320000 is engineered for demanding applications requiring high current and a failsafe design. This connector features 8 contacts in a double-row formation, supporting a pitch of 7.62 mm, and is housed in polyamide powder-filled glass particle material for enhanced strength and heat resistance. Rated for 30A and 1000V, it supports robust circuit integration while maintaining safety and reliability.
The male connector gender, paired with a solder wire connection method, allows secure and convenient installation. Specifically optimized for book-size modules measuring 50 mm wide or greater, the connector includes integrated mounting options for attachment to housing walls, supporting versatile placements in both industrial and commercial PCBs.
Distinct features include tool-free locking, unique coding for failsafe mating, and optional additional screw mounting via flange. Users benefit from exceptional operational safety, reliability, and compatibility with standard modular designs. The connector is compliant with Crlus and RoHS approvals, ensuring adherence to rigorous industry safety and environmental standards.
Premium PCB connector for high-current, high-performance board applications. Comprises 8 contacts arranged in 2 rows for effective circuit connectivity. Designed with polyamide powder-filled, glass particle housing for durability.
Supports a pitch of 7.62 mm and operates up to 1000V and 30A current. Features male connector gender and solder wire connection method. Suitable for use with book-size modules (50 mm wide and above). Integrated mounting option allows secure attachment to housing wall.
Complies with Crlus and RoHS standards for operational safety and reliability. Exceptional failsafe mating profile with unique coding and optional flange screw mounting.
Ideal for use in electronics manufacturing, PCB assembly, industrial modules, automation systems, and laboratory prototypes. This Weidmüller connector supports fast, tool-free locking and offers robust grounding for critical circuits. Explore more PCB Connectors and Weidmüller products in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 1000V and a current of 30A.
It supports a pitch of 7.62 mm and comprises 8 contacts arranged in 2 rows.
The housing is constructed from polyamide powder-filled material with glass particles for enhanced strength and heat resistance.
It features a solder wire connection method for secure installation.
The dimensions are 48.9 mm in width and depth, with a length of 3.2 mm.
Yes, it is specifically optimized for use with book-size modules that are 50 mm wide or greater.
It complies with Crlus and RoHS standards, ensuring operational safety and environmental compliance.
This connector features a male gender configuration.
Yes, it includes integrated mounting options for secure attachment to housing walls.
It is suitable for electronics manufacturing, PCB assembly, industrial modules, automation systems, and laboratory prototypes.
Distinct features include tool-free locking, unique coding for failsafe mating, and optional additional screw mounting via flange.
The country of origin for this connector is Romania.
