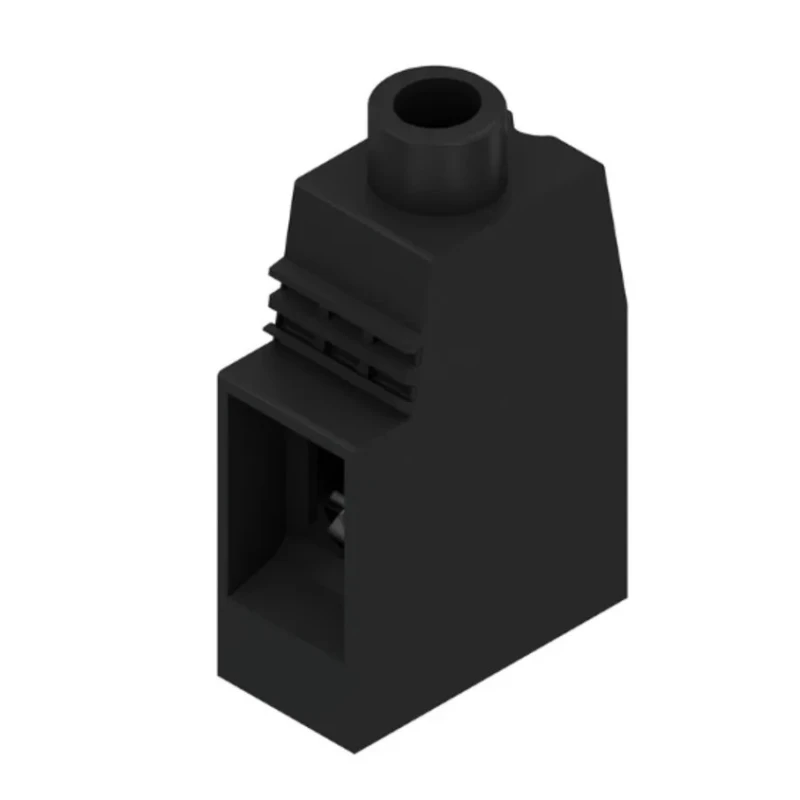

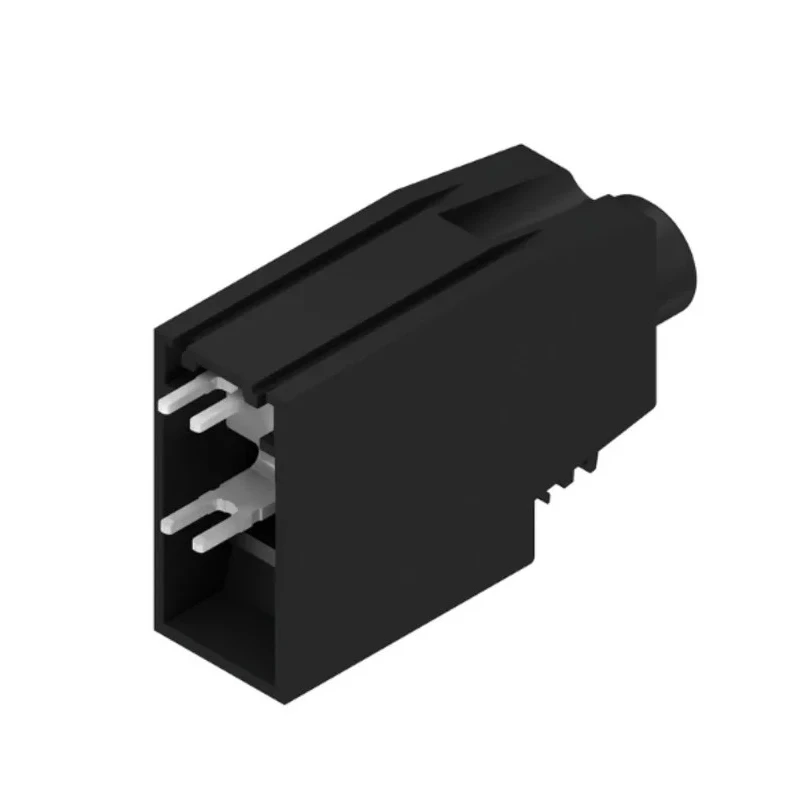

Weidmüller LXXX Series PCB Terminal, 1 Contact, 15 mm Pitch, Right Angle, Polyamide Housing, 150A, 1kV, 1 Row 1047120000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1kV |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | Right Angle |
| Current | 150A |
| Length | 56mm |
| Depth | 31mm |
| Width | 16mm |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Series | LXXX |
| Termination Type | PCB |
| Number of Rows | 1 |
| Pitch | 15mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
Key Features
- Single contact PCB terminal block for high-current applications.
- Offers 150A maximum current and 1kV voltage rating for reliable performance.
- Features a compact right-angle polyamide housing for space efficiency.
- 15 mm pitch, single row design suitable for direct PCB mounting.
- Supports conductor sizes from 0.5 to 50 mm² for versatile connectivity.
- Easy clamping yoke mechanism simplifies secure wire termination.
- Compliant with RoHS standards for industrial safety.
Product Description
Weidmüller 1047120000 LXXX Series PCB Terminal is a high-performance solution designed for demanding electrical power distribution and industrial automation applications. This single-contact terminal block supports a maximum current of 150A and voltage rating of 1kV, ensuring robust performance and safety in high-power environments.
Constructed with a durable polyamide black housing, the terminal offers a compact form factor with 31 mm depth, 16 mm width, and 56 mm length. Its right-angle orientation and single-row configuration facilitate straightforward installation onto printed circuit boards, optimizing space and electrical efficiency. The 15 mm pitch allows for secure conductor placement, accommodating a wide range of wire sizes from 0.5 to 50 mm².
The terminal incorporates clamping yoke technology, providing strong grip and minimizing connection failures. This design streamlines wiring operations, reduces setup time, and improves reliability, making it ideal for use in control panels, automation systems, electric drives, and industrial machinery.
Single-contact PCB terminal block, LXXX Series, provides high-current connectivity. Rated for 150A and 1kV, suitable for power-intensive control systems. Polyamide housing ensures durability and electrical insulation. Supports various conductor types: solid, stranded, and flexible wires.
Easy termination with clamping yoke mechanism. Pitch of 15 mm and 1-row configuration supports efficient circuit integration. RoHS compliant for industrial safety and environmental standards.
Recommended for high-power electronics, control panels, automation systems, electric drives, and industrial equipment, the Weidmüller 1047120000 PCB terminal offers proven reliability and versatility for a range of commercial and industrial applications. Ideal for engineers seeking a robust solution for PCB-mounted power connections.
Explore more industrial PCB Terminal Blocks and Weidmüller products in EnvMart's Electronics Components section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 150A, making it suitable for high-current applications.
It has a voltage rating of 1kV, ensuring reliable performance in high-power environments.
The terminal block measures 56 mm in length, 16 mm in width, and 31 mm in depth.
It features a polyamide housing, which provides durability and electrical insulation.
The pitch is 15 mm, allowing for secure conductor placement on the PCB.
This unit is designed with a single contact, making it a single-contact PCB terminal.
It accommodates conductor sizes ranging from 0.5 to 50 mm², offering versatile connectivity options.
The terminal incorporates an easy clamping yoke mechanism, simplifying secure wire termination.
Yes, it is compliant with RoHS standards for industrial safety and environmental considerations.
It has a right-angle orientation, facilitating straightforward installation onto printed circuit boards.
It is recommended for use in control panels, automation systems, electric drives, and industrial machinery.
The Weidmüller LXXX Series PCB terminal is manufactured in China.
