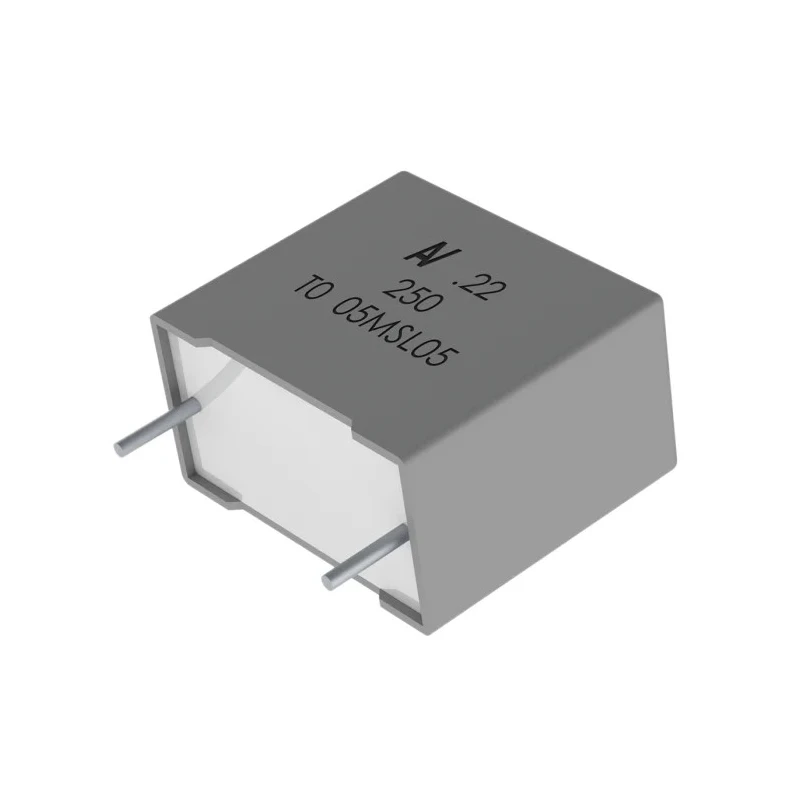

KEMET R60 Film Capacitor 4.7 nF 630V DC 220V AC ±5% Through Hole R60PF1470AA30J

Free Delivery in India | Lowest Global Shipping Charges

KEMET R60 Film Capacitor 4.7 nF 630V DC 220V AC ±5% Through Hole R60PF1470AA30J

Name: KEMET R60 Film Capacitor 4.7 nF 630V DC 220V AC ±5% Through Hole R60PF1470AA30J
Brand: KEMET
SKU: 89409
Price: 0.34 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Capacitance Range	0.001 μF - 150.0 μF
Voltage Range	50 to 1000 V dc
Brand	KEMET
Height	9mm
Length	13mm
Model	R60PF1470AA30J
Packaging	Bag
Width	4mm
Mount Type	Through Hole
Series	R60
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	4.7nF
Minimum Operating Temperature	-55°C
Climatic category	55/105/56
Lead Length	25mm
Standards/Approvals	IEC 60286-2, RoHS, UL 94V-0
Package/Case	Plastic
Pin Count	2
Rated AC Voltage	220V ac
Rated DC Voltage	630V dc
Lead Pitch	10mm
Lead Diameter	0.6mm
Automotive Standard	AEC-Q200
Capacitance tolerance	±5%, ±10%, ±20%
Lead Spacing	10.0 to 37.5 mm

Key Features

High-performance metallized polyester film capacitor for precision electronic applications.
Capacitance of 4.7 nF, rated for 630V DC and 220V AC operation, ensuring reliability in demanding circuits.
±5% tolerance provides tight control over capacitance values for stable circuit performance.
Through hole mount type for robust placement on printed circuit boards.
Wide operating temperature range from -55°C to 105°C for extended versatility in various environments.
Lead pitch of 10 mm for compatibility with standard PCB layouts.
Complies with AEC-Q200 automotive standard for enhanced durability and quality.
Plastic case with self-extinguishing material rated to UL 94V-0 for safety in applications.

Product Description

KEMET R60PF1470AA30J is a premium Film Capacitor designed for reliable performance in industrial and electronics applications. With a capacitance of 4.7 nF and ±5% tolerance, this device guarantees precision in timing, coupling, blocking, and bypassing tasks. It is engineered to handle 630V DC and 220V AC, making it highly suitable for power conversion systems, automotive circuits, and industrial controllers.

The capacitor's through hole mounting structure and 10 mm lead pitch ensure robust mechanical stability and convenient integration in PCB designs. Constructed in a solvent-resistant, self-extinguishing plastic case filled with thermosetting resin (UL 94V-0 standard), it provides both electrical insulation and long-term durability against environmental stresses. The product's compliance with AEC-Q200 and certifications such as IEC 60286-2 and RoHS demonstrate its compatibility with harsh automotive and electronic environments.

The operating temperature range of -55°C to 105°C allows use in demanding industrial, laboratory, and control panel applications, where environmental conditions can vary significantly. With dimensions of 13 mm length, 9 mm height, and 4 mm width, KEMET R60PF1470AA30J is compact yet powerful, enabling high-density board designs for modern electronic systems.

High stability and reliability, minimizing losses and signal degradation in circuit paths. Wide application range, including timing, oscillator, coupling, bypassing, and interference suppression. Suitable for use in automotive, industrial, and electronic control applications.

Meets strict safety and performance standards, ensuring lasting operation in sensitive systems.

Applications include electronic equipment, automation systems, automotive control units, energy meters, and low-voltage filtering. The R60 series is recognized for its robust mechanical integrity and self-healing electrical properties.
