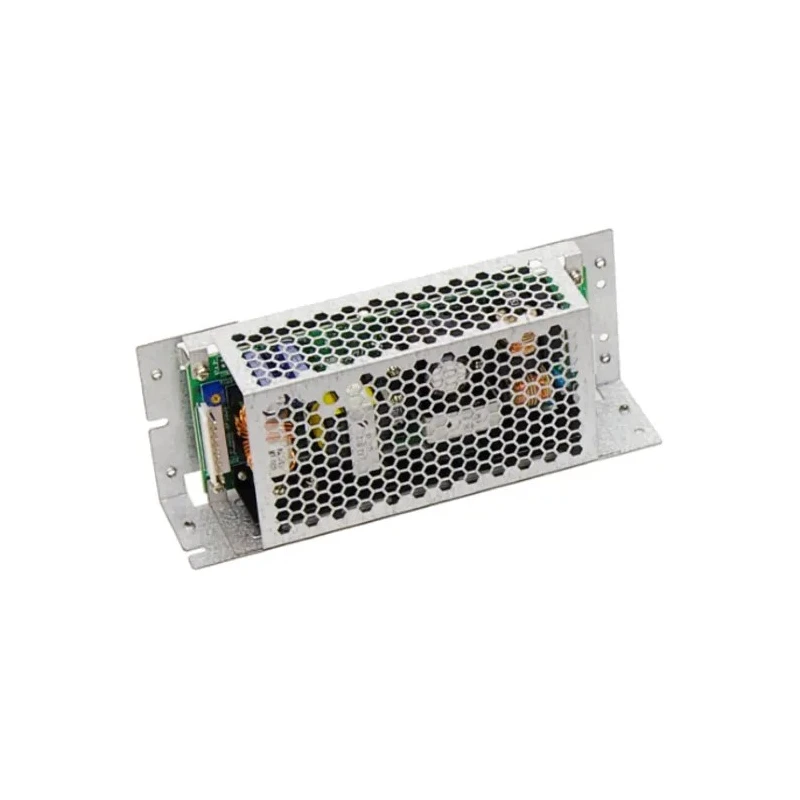

TDK-Lambda Switching Power Supply 5V DC, 50W, Chassis Mount, 10A, ZWS50BAF-5/A

The TDK-Lambda ZWS50BAF-5/A Switching Power Supply is a high-quality, compact industrial power supply engineered to provide reliable 5V DC output at a rated power of 50W. Featuring a chassis mount configuration, it is specifically designed for integration into control panels and industrial equipment where space and performance are equally important.

With its robust output current capability of 10A, the ZWS50BAF-5/A is ideal for driving demanding loads in factory automation systems, test and measurement instruments, LED signage, and light industrial equipment. The unit supports a wide AC input voltage range from 85V AC up to 265V AC, and also 370V DC, enabling flexible operation in global environments.

The power supply is engineered for efficient operation, boasting an 84% efficiency rating to minimize energy losses. Its compact form factor (162mm length x 36mm width x 36mm depth) allows it to fit comfortably within tight enclosure spaces, supporting modern equipment design needs.

Convection cooling ensures reliable thermal management without the need for fans, while integrated protection features such as overcurrent and overvoltage safeguard connected devices. The ZWS50BAF-5/A maintains consistent performance across a broad operating temperature range from -10°C to 70°C, enabling 100% load delivery at up to 50°C ambient.

Certified to international standards including CE, EN 55011, EN 61000, IEC/UL/CSA/EN 62368-1, VCCI-B, and EMC/PFC compliance, this supply assures dependable operation and meets stringent industrial requirements. Typical use cases span factory machinery, automated testing stations, electronic signage, and precision instrumentation.

Provides 5V DC output at 50W power rating. Chassis mount design suited for industrial panels and equipment. Rated for 10A output current to support demanding applications. Supports wide AC input voltage range from 85V AC up to 265V AC or 370V DC.

Operating temperature range from -10°C to 70°C. Features high efficiency of 84% for energy-saving performance. Compact dimensions (162mm x 36mm x 36mm) help optimize enclosure layout. Suitable for factory automation, test & measurement, LED signage, and light industrial equipment.

Convection cooled with overcurrent and overvoltage protection. Standards compliant and EMC/PFC certified for reliable operation.

Engineered for demanding environments, the TDK-Lambda ZWS50BAF-5/A Switching Power Supply ensures stable performance in diverse applications. Browse more TDK-Lambda and industrial switching power supplies in the EnvMart catalogue.
