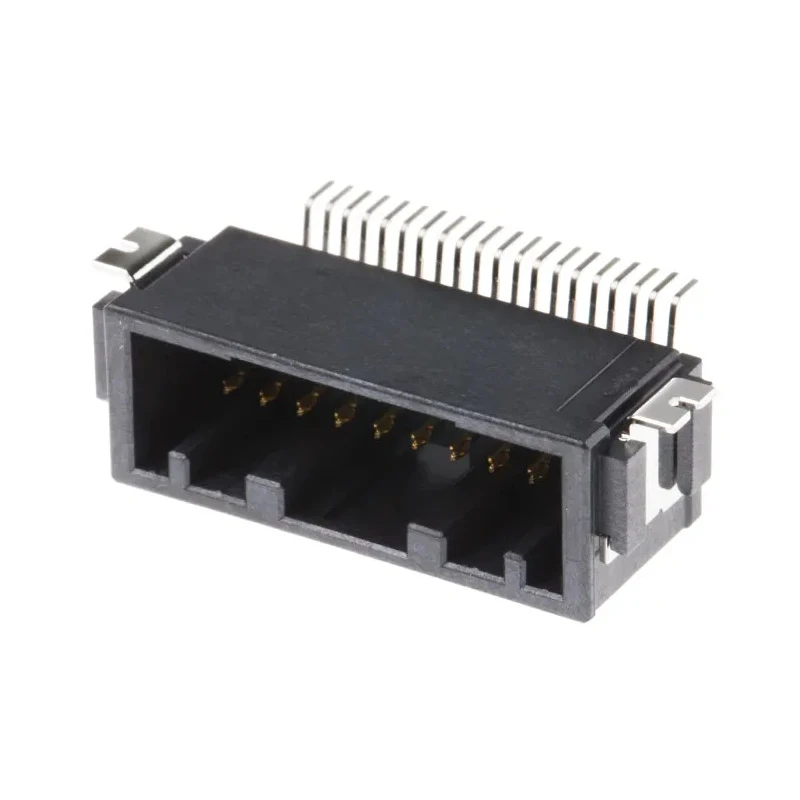

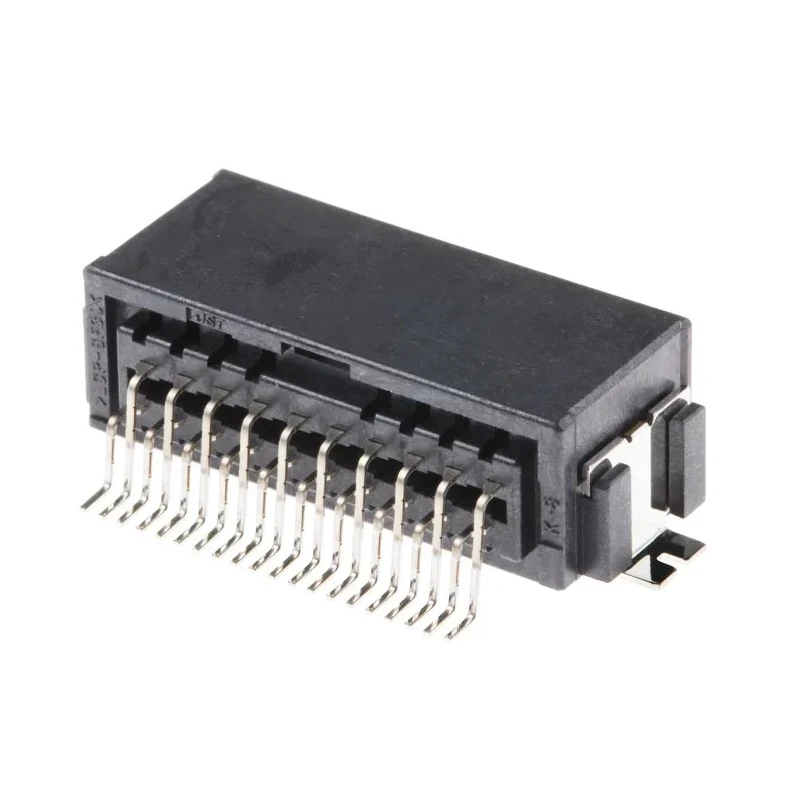

JST CPT Automotive Connector Male Black Surface 20 Way Crimp Termination SM20B-CPTK-1A-TB
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 380mm |
| Brand | JST |
| Colour | Black |
| Current | 3A |
| Height | 9.3mm |
| Model | SM20B-CPTK-1A-TB |
| Depth | 10.6mm |
| Width | 27.6mm |
| Gender | Male |
| Mount Type | Surface |
| Housing Material | Glass Filled Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | CPT |
| Termination Type | Crimp |
| Maximum Operating Temperature | 100°C |
| Sub Type | CPT Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
Key Features
- Reliable automotive connector with CPT series configuration for secure wire-to-board PCB connections.
- Features a compact and low-profile surface mount design ideal for miniaturised applications.
- Comprises 20 male contacts, supporting robust signal and power delivery.
- Crimp termination ensures efficient and stable connection for automotive electrical equipment.
- Housing is made from glass-filled liquid crystal polymer with gold over nickel-plated copper alloy contacts.
- Wide operating temperature range from minus 40°C to 100°C for demanding environments.
- Single row connector with 2.0 mm pitch for flexible mating capability.
- RoHS compliant with black colouring, suited for modern automotive standards.
Product Description
The JST SM20B-CPTK-1A-TB CPT Automotive Connector is a specialized 20-way male connector designed for automotive electronic applications requiring high reliability and compact form factor. This connector belongs to the CPT series, known for its miniaturised, low profile, surface mount design, making it a top choice for wire-to-board PCB connections in modern vehicles.
The SM20B-CPTK-1A-TB features crimp termination for robust wire interfacing and is configured with a single row containing 20 contacts. Its 2.0 mm pitch allows it to mate seamlessly with matching female CPT series cable mount housings, offering versatile implementation across signal and power circuits.
Engineered using glass-filled liquid crystal polymer for the housing and gold over nickel for the copper alloy contacts, this connector delivers exceptional mechanical and electrical performance. It accommodates up to 3A of current per contact, suiting it for a wide array of automotive electrical systems.
The black-coloured connector is RoHS compliant and performs reliably across a temperature range from -40°C to 100°C. Dimensions include a diameter of 380 mm, height 9.3 mm, depth 10.6 mm, and width 27.6 mm, ensuring a compact profile. Cord is included for simplified installation in production environments.
Applications include signal transmission, power distribution, and electronic interfacing in automotive wiring harnesses, dashboards, control modules, and other vehicular electronic systems. Its rugged construction guarantees durability under demanding industrial conditions.
This product is widely used in automotive manufacturing, repair, and upgrade projects, as well as in laboratory evaluation of automotive connectivity standards. It conforms to RoHS and supports modern automotive electrical requirements.
Explore other JST CPT connectors for your automotive electronic projects in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3A per contact, making it suitable for various automotive electrical systems.
It operates reliably within a temperature range of -40°C to 100°C, accommodating demanding environments.
The housing is made from glass-filled liquid crystal polymer, while the contacts are copper alloy with gold over nickel plating.
This connector features 20 male contacts, designed for secure wire-to-board connections.
The connector has a pitch size of 2.0 mm, allowing for flexible mating capabilities with compatible housings.
Yes, the JST CPT Automotive Connector is RoHS compliant, meeting modern automotive standards.
The dimensions are 380 mm in diameter, 9.3 mm in height, 10.6 mm in depth, and 27.6 mm in width, ensuring a compact profile.
It utilizes crimp termination, which provides efficient and stable connections for automotive electrical equipment.
It is suitable for signal transmission, power distribution, and electronic interfacing in automotive wiring harnesses and control modules.
This connector is designed for surface mount installation, making it ideal for miniaturized applications.
The connector is manufactured in Japan, ensuring adherence to quality standards.
It belongs to the CPT series, known for its low-profile and reliable performance in automotive applications.
