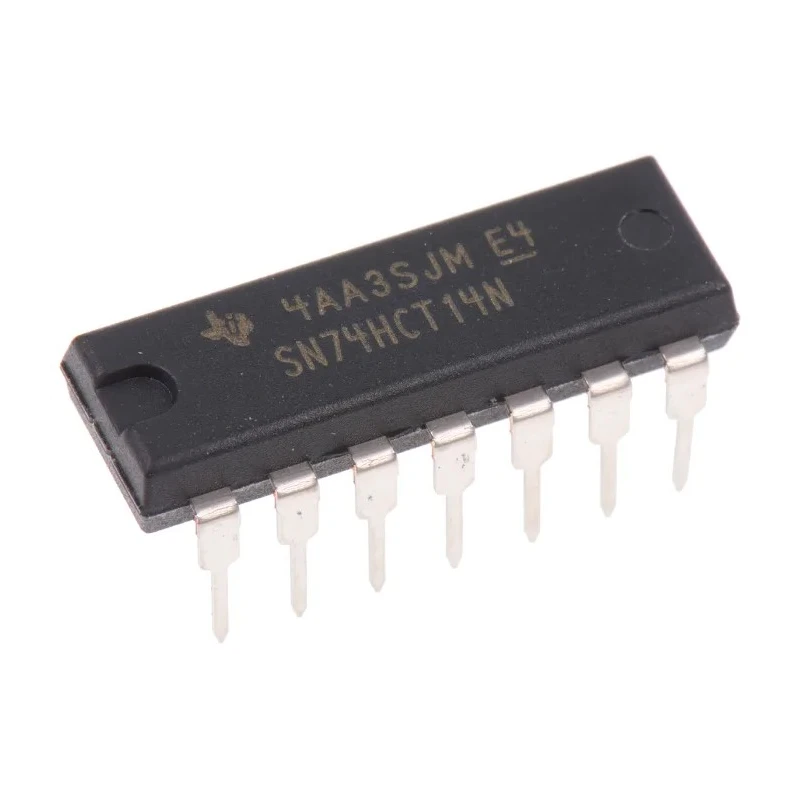

Texas Instruments Schmitt Trigger Input Inverter IC SN74HCT14N, 6-Channel, 14-Pin PDIP, High-Speed CMOS, 4.5 - 5.5V

Texas Instruments SN74HCT14N is a Schmitt Trigger Input Inverter Logic IC designed for reliable signal inversion and noise immunity in digital electronics. Featuring six independent inverter gates, each with a Schmitt trigger input, this IC is ideal for applications where precise logic transitions are needed even in noisy environments.

This high-speed CMOS logic device operates within a supply voltage range of 4.5 V to 5.5 V, making it compatible with both TTL and CMOS logic families. The Schmitt trigger input improves signal integrity by ensuring sharper logic transitions and reducing susceptibility to oscillations and noise.

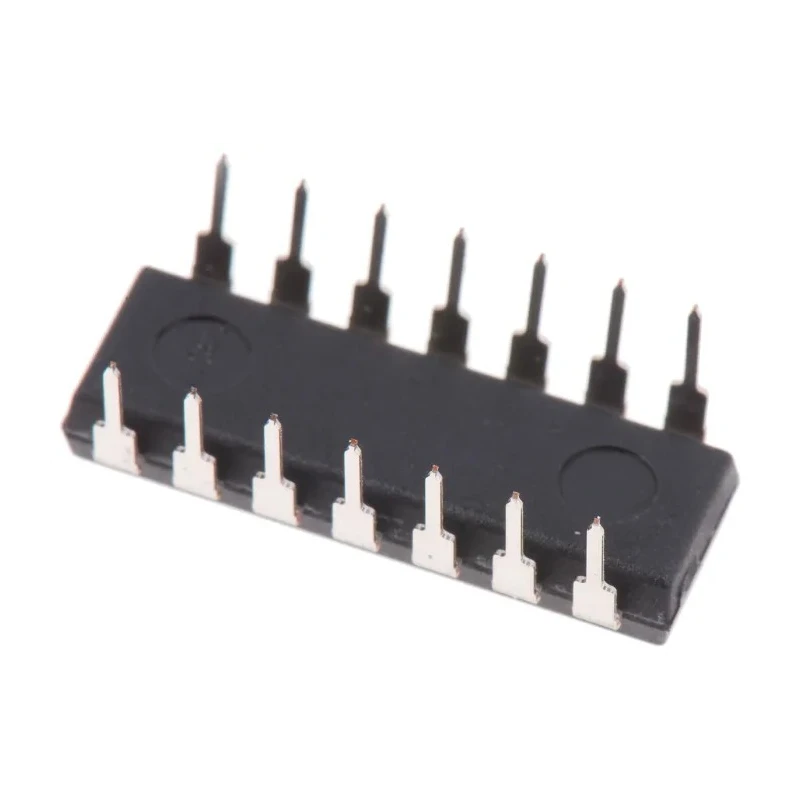

Its through-hole PDIP package with 14 pins facilitates straightforward implementation in both prototype boards and final industrial assemblies. The maximum propagation delay time of just 40 ns enables fast signal processing, crucial for industrial, laboratory, and commercial electronics.

Applications include signal conditioning, waveform shaping, logic level translation, and industrial automation where high reliability and rapid response are required. The device supports wide operational temperatures from -40°C to 85°C, offering robustness for demanding locations and processes.

Six inverter gates with Schmitt trigger inputs for robust digital signal inversion. Wide supply voltage compatibility (4.5 V to 5.5 V) and TTL input/CMS output features. 14-pin PDIP form for convenient through-hole mounting and prototyping.

Maximum propagation delay of 40 ns for high-speed logic operation. Supports 4 mA output currents at standard logic levels. Low power consumption due to CMOS technology, suitable for modern electronics. Modern HCT family ensures compatibility and reliability for advanced digital applications.

Industrial, laboratory, and automation use cases include signal correction and level shifting.

This Texas Instruments SN74HCT14N inverter IC is a dependable component used by manufacturers and engineers in diverse sectors including semiconductor equipment, industrial controls, laboratory automation, and commercial electronics development. Explore more Texas Instruments Logic ICs and semiconductor solutions on EnvMart.
