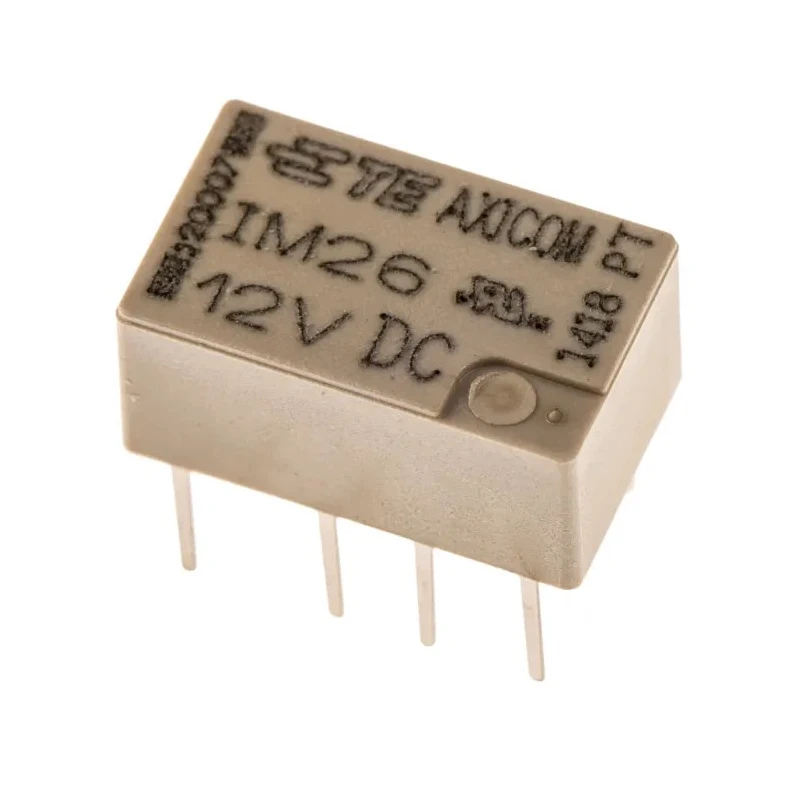

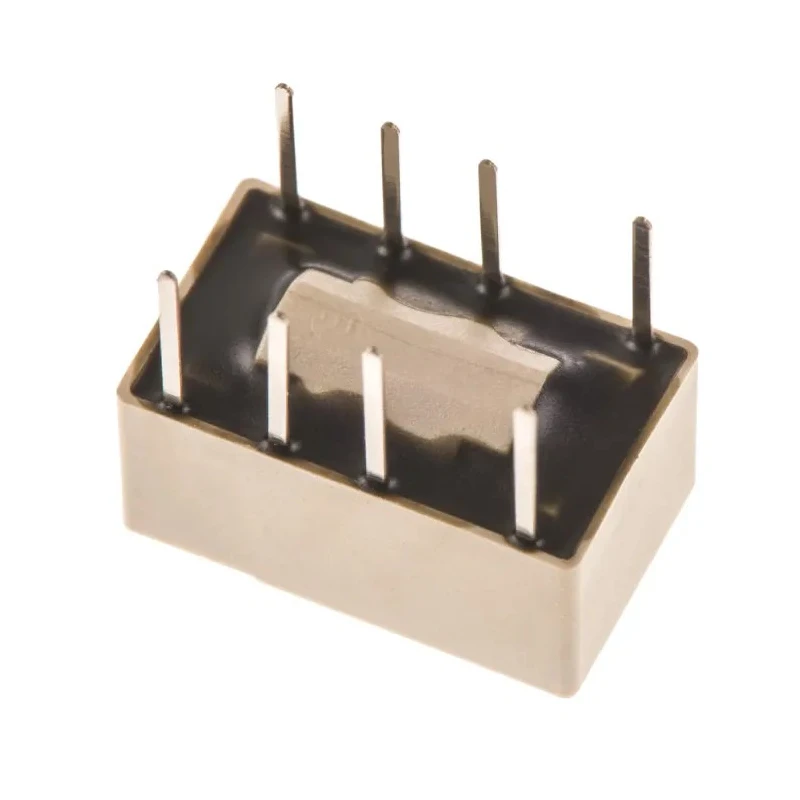

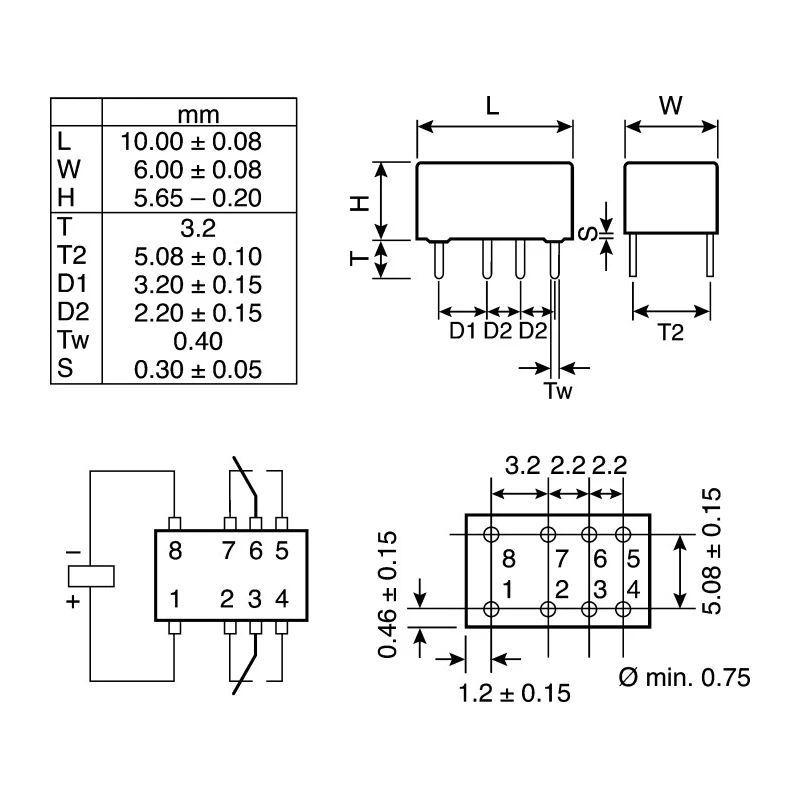

TE Connectivity PCB Signal Relay DPDT 12V DC Coil 2A Gold Plated Contacts IM26TS 3-1462039-2 3-1462039-2 IM26TS
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | 3-1462039-2 IM26TS |
| Width | 6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2800Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 50mW |
| Mechanical Shock Resistance | 300G functional, 500G survival |
Key Features
- Slimline relay with low profile and compact 10x6x5.65 mm footprint.
- Bifurcated gold-plated contacts for reliable signal switching.
- Hermetically sealed construction rated IP67 for high durability.
- High mechanical shock resistance up to 300G functional and 500G survival capability.
- Insulation resistance exceeds 10⁹ Ω at 500V DC.
- Wide operational temperature range from -40°C to 85°C.
- PCB mount design with solder terminals for versatile applications.
- Supports telecommunication, optical network, office equipment, medical, automotive, and test instrument uses.
Product Description
TE Connectivity 3-1462039-2 IM26TS PCB Signal Relay is a high-performance DPDT relay suitable for demanding signal applications. Operating on a 12V DC coil, this relay delivers a maximum switching current of 2A and features a compact footprint of 10mm by 6mm by 5.65mm, ideal for space-constrained printed circuit boards.
The relay incorporates bifurcated gold-plated contacts to ensure enhanced electrical reliability and minimal signal deterioration. Its hermetically sealed enclosure, with an ingress protection rating of IP67, ensures protection against dust and moisture, making it appropriate for harsh environments.
Mechanical robustness is a standout feature: the device withstands up to 300G shock functionally and up to 500G for survival, which is vital in automotive, industrial, and test-and-measurement contexts. Insulation resistance at 500V DC surpasses 109 Ω, contributing to dependable isolation and signal integrity.
The relay supports a wide range of switching voltages, including up to 250V AC and 220V DC, delivering up to 62.5 VA of switching power. The coil resistance is specified at 2800 Ω, with ultra-low coil power consumption as low as 50mW for the high sensitivity variant. Solder-type terminals facilitate simple and secure mounting on PCBs.
It's engineered for operation between -40°C and 85°C, making it suitable for varied environmental conditions encountered in telecommunications, optical networks, office equipment, medical devices, automotive electronics, and laboratory instruments.
This IM26TS relay complies with RoHS directives and UL approvals, meeting modern environmental and safety expectations. The robust design, technical versatility, and trusted TE Connectivity brand make it an ideal solution for industrial and commercial signal relay needs.
Slimline relay with low profile and compact 10x6x5.65 mm footprint. Bifurcated gold-plated contacts for reliable signal switching. Hermetically sealed construction rated IP67 for high durability. High mechanical shock resistance up to 300G functional and 500G survival capability.
Insulation resistance exceeds 109 Ω at 500V DC. Wide operational temperature range from -40°C to 85°C. PCB mount design with solder terminals for versatile applications. Supports telecommunication, optical network, office equipment, medical, automotive, and test instrument uses.
Explore more signal relays and TE Connectivity solutions in the Signal Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this relay is 2A.
This model has a compact footprint of 10mm in length, 6mm in width, and 5.65mm in height.
The coil voltage for this relay is 12V DC.
The insulation resistance exceeds 10⁹ Ω at 500V DC, ensuring reliable isolation.
This relay operates within a temperature range of -40°C to 85°C.
The relay is designed for PCB mounting with solder terminals.
The contact configuration of this relay is DPDT (Double Pole Double Throw).
It has a mechanical shock resistance of 300G functional and 500G survival capability.
The contacts are made of gold-plated material for enhanced reliability.
This relay complies with RoHS directives and has UL approvals.
The coil resistance is specified at 2800 Ω.
This relay is suitable for applications in telecommunications, optical networks, office equipment, medical devices, automotive electronics, and laboratory instruments.
