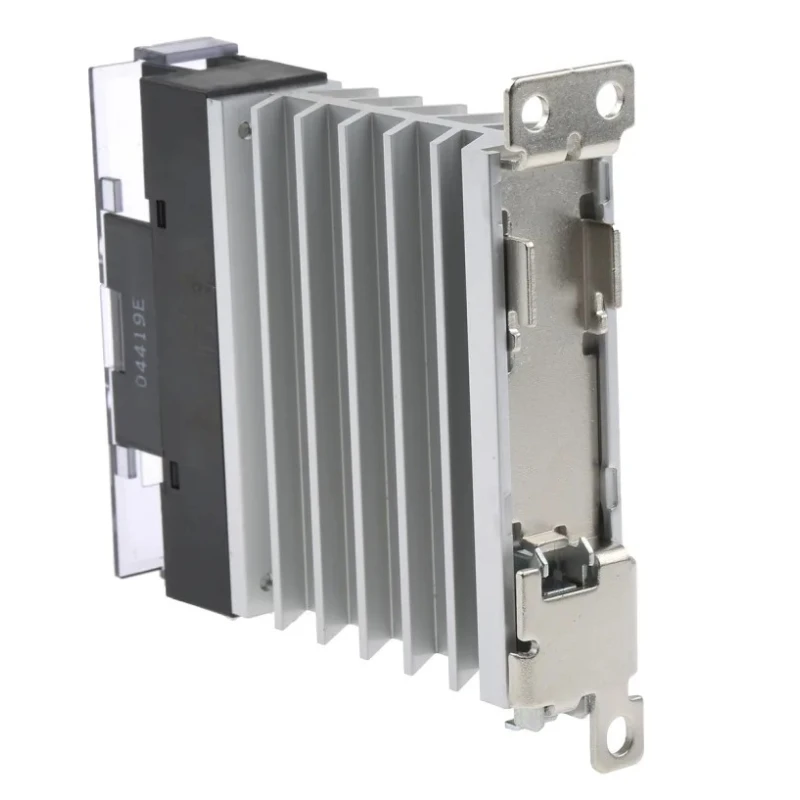

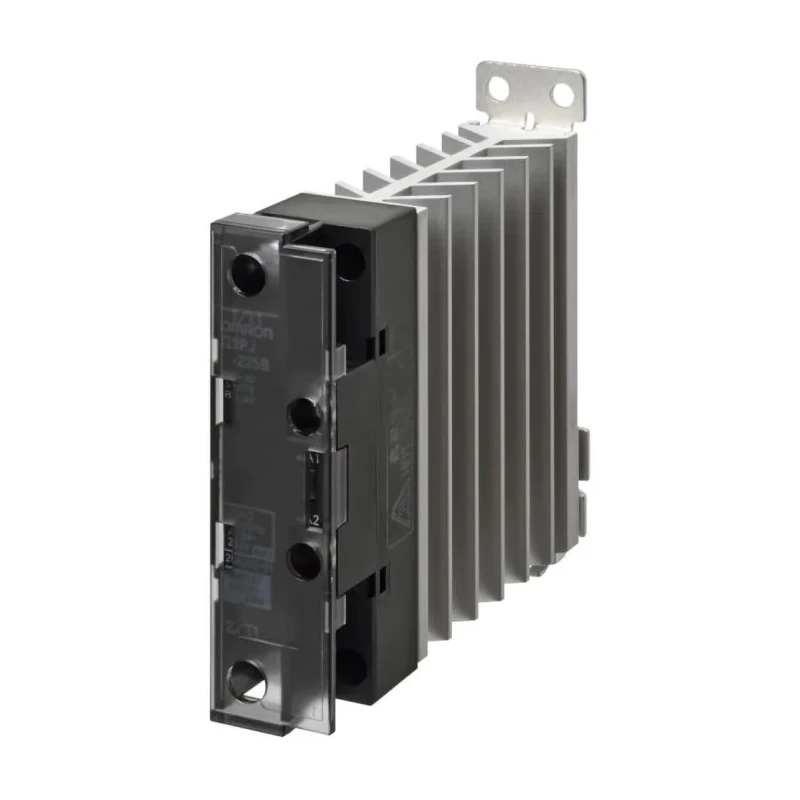

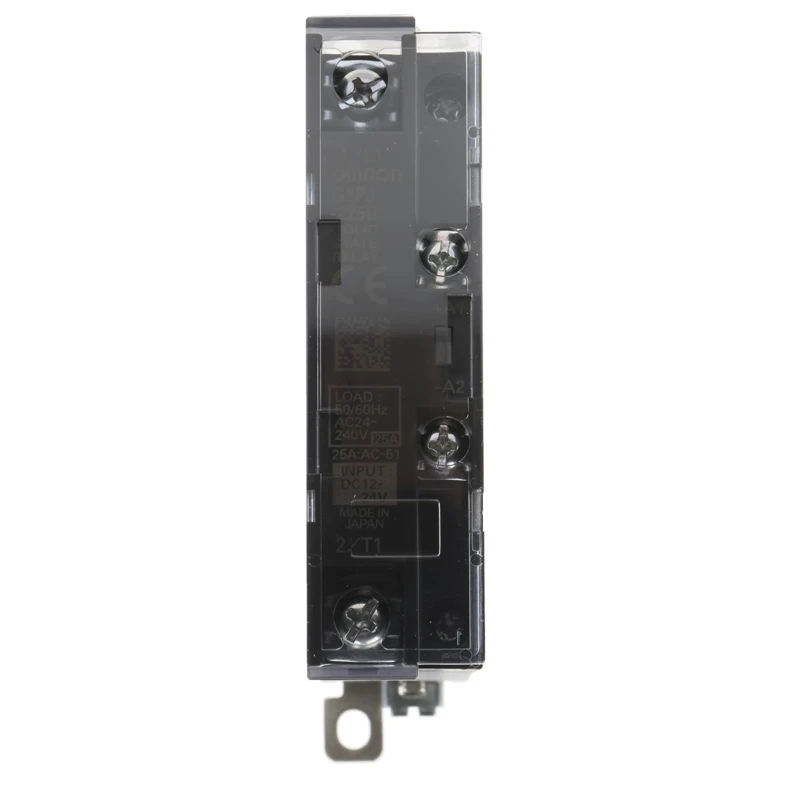

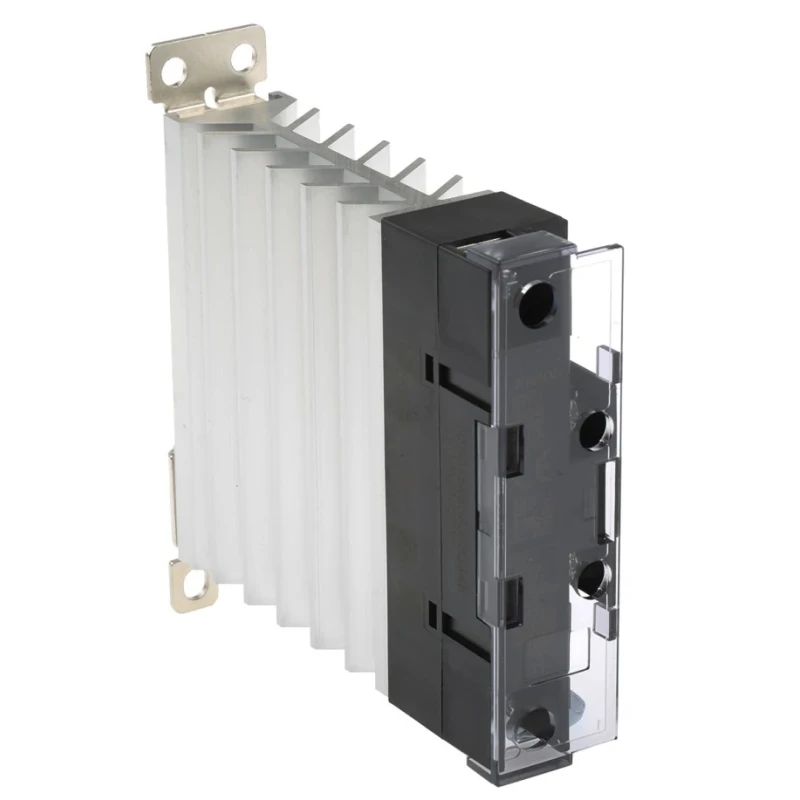

Omron Solid State Relay DIN Rail Mount 25A 264V AC Load, 24V DC Control G3PJ
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 100mm |
| Length | 22.5mm |
| Model | G3PJ |
| Mount Type | DIN Rail |
| Output type | Triac |
| Series | G3PJ |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SP |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | TUV, CE, cULus |
| Maximum Load Voltage | 264V ac |
| Minimum Load Voltage | 19V ac |
| Minimum Control Voltage | 12V dc |
| Maximum Control Voltage | 24V dc |
| Off State Leakage Current | 10mA |
Key Features
- Operates with control voltage range from 12 to 24V DC for flexible automation integration.
- Rated for maximum load current of 25A and maximum load voltage of 264V AC, suitable for motor and heating applications.
- Compact footprint measuring 22.5mm width and 100mm height enables straightforward DIN rail installation.
- Zero-cross switching function provides efficient and safe operation with minimal electrical noise.
- Triac output technology ensures robust performance and extended relay lifespan.
- SP contact configuration with screw terminals simplifies wiring and connection.
- Wide operating temperature range from -30°C to 80°C for demanding environments.
- Off-state leakage current limited to 10mA enhances safety and energy efficiency.
Product Description
The Omron G3PJ-225B DC12-24 Solid State Relay is engineered for reliable switching of AC loads in industrial and automation applications. Featuring a DIN rail mount design, it is ideal for integrating into control cabinets or process equipment where compactness and ease of installation are essential.
This relay supports a control voltage input range of 12 to 24V DC, providing compatibility with a broad selection of PLCs, controllers, and automation systems. Its maximum output capacity of 25A at 264V AC allows efficient handling of motor drives, heating elements, and lighting circuits. The SP (single pole) contact configuration and robust screw terminals facilitate secure connections during setup and maintenance.
Zero-cross switching technology integrated into the relay minimizes electrical noise and improves the reliability of switching, which is critical for sensitive industrial environments. The triac output ensures fast, durable operation, minimizing mechanical wear compared to classic electromechanical relays.
A wide ambient operable temperature span from -30°C to 80°C makes this relay suited for demanding installation sites, including manufacturing floors, process automation, and HVAC systems. The compact footprint, at only 22.5mm in width and 100mm in height, streamlines cabinet space utilization and allows for scalable multi-relay setups.
Safety and efficiency are prioritized, with an off-state leakage current of only 10mA. Certified to TUV, CE, and cULus standards, the relay is suitable for global industrial requirements, enabling secure load management in compliance-conscious environments.
Typical use cases include controlling motor drives, heating systems requiring high-voltage switching, lighting in commercial buildings, and process automation systems requiring consistent performance under varying environmental conditions.
Explore more Omron Solid State Relays and industrial automation products within the EnvMart catalog to meet diverse control and switching needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 25A.
It operates with a control voltage range from 12V to 24V DC.
This relay features a Triac output type.
The relay has a compact footprint measuring 22.5mm in width and 100mm in height.
The maximum load voltage is 264V AC.
It is designed for DIN rail mounting, making installation straightforward.
The off-state leakage current is limited to 10mA, enhancing safety and energy efficiency.
It operates within a temperature range from -30°C to 80°C.
This model uses screw terminals for secure connections.
It is certified to TUV, CE, and cULus standards, suitable for global industrial requirements.
It features a zero-cross switching function, which minimizes electrical noise during operation.
This relay is suitable for controlling motor drives, heating systems, lighting in commercial buildings, and process automation systems.
