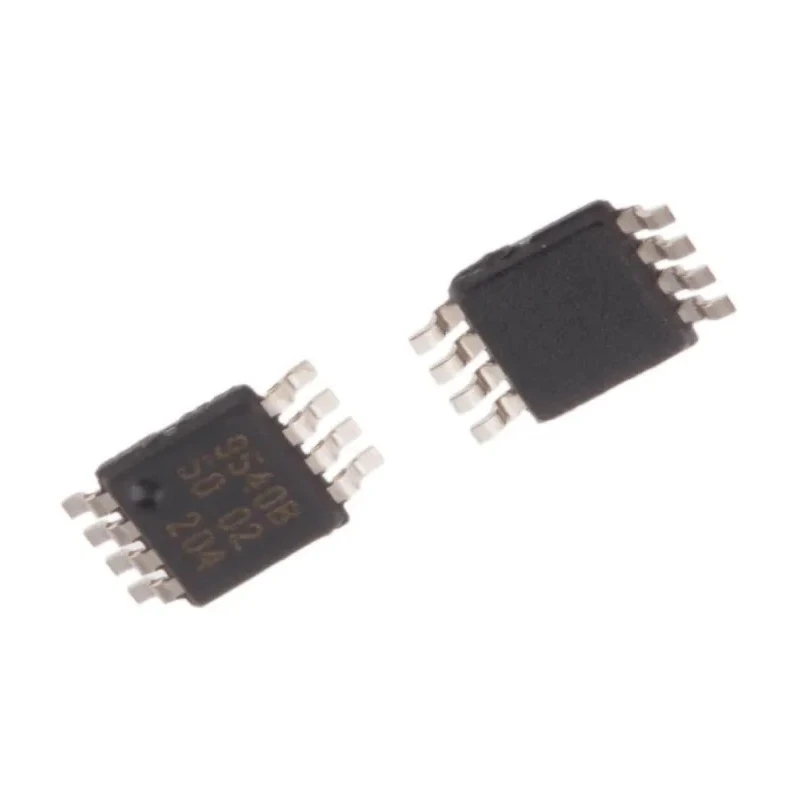

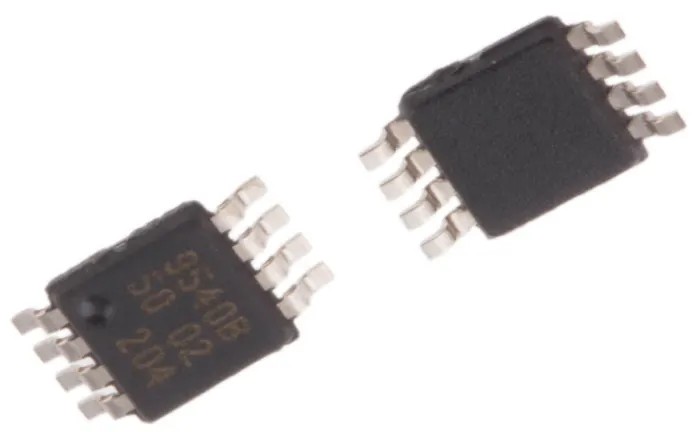

NXP Multiplexer IC PCA9540BDP,118, Single 2:1, 8-Pin TSSOP, Surface Mount, 2.3V to 5.5V

The NXP PCA9540BDP,118 Multiplexer IC is a specialized semiconductor device designed for digital logic signal selection in various electronics and industrial platforms. It offers a single 2:1 multiplexer function, enabling the routing of one of two input signals to a single output line, managed by straightforward digital control. This configuration is ideal for applications requiring efficient channel selection within measurement, automation, communications, and embedded electronics systems.

This multiplexer is housed in a compact 8-pin TSSOP (Thin Shrink Small Outline Package), optimized for surface mount assembly, ensuring compatibility with automated PCB manufacturing processes and modern miniaturized electronics. Its small package footprint makes it highly suitable for design-constrained environments where PCB area is at a premium, such as industrial control equipment, data acquisition boards, and sensor interface circuitry.

The IC operates with a supply voltage range from 2.3V to 5.5V, supporting compatibility with a wide variety of logic families and low-voltage digital systems. Its maximum on-state resistance of 31 ohms assures minimized signal attenuation, important for processes requiring precise analog or digital voltage levels. The extended operating temperature range between -40°C and 85°C guarantees performance reliability even in challenging industrial and outdoor applications.

Key features include a single-channel, dual-path multiplexing topology, surface-mount form for robust assembly, and high electrical performance across all operating conditions. The PCA9540BDP,118 is part of the NXP PCA9540B series, known for dependable signal integrity in demanding environments. The TSSOP package type provides both mechanical stability and reduced parasitic effects, further enhancing circuit reliability.

This multiplexer integrates seamlessly into a range of use cases including test and measurement instrumentation, programmable logic controllers, communication interface routing, data logging modules, and lab automation systems. It is a critical building block for engineers and OEMs who require dependable logic-level switching and signal path control with compact packaging.

As an NXP original series IC, the PCA9540BDP,118 ensures high integration density, low power operation, and robust switching capability. Its standard surface-mount configuration allows rapid production scale-up and simplifies maintenance and device replacement for electronics manufacturers and industrial users alike.
