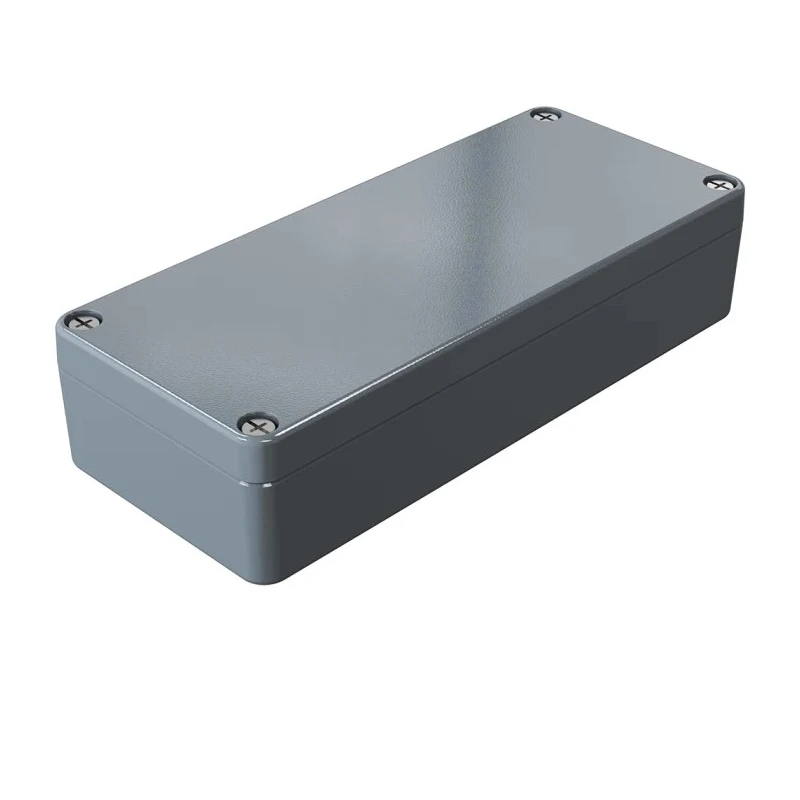

Rose Aluminium Standard Series Die Cast Aluminium Enclosure, IP66, IK09, Grey Lid, 150x64x34mm 01061503

Rose 01061503 Aluminium Standard Series Die Cast Enclosure is engineered to deliver reliable protection for delicate electronic components in demanding industrial environments. The enclosure is manufactured from die cast aluminium, offering exceptional resistance to impact, rust, and environmental factors, ensuring a long service life. Its compact dimensions of 150 mm length, 64 mm width, and 34 mm height make it the ideal choice for installations where space is limited and efficient protection is critical.

Designed for rugged applications, this enclosure features an IP66 ingress protection rating, safeguarding internal equipment against dust and high-pressure water jets. The IK09 mechanical protection rating further enhances the unit's ability to withstand significant physical impacts, making it suitable for both indoor and outdoor settings where reliability and durability are priority.

The grey lid and body create a visually cohesive appearance, while the polyurethane gasket ensures superior sealing against water, dust, and other contaminants. The enclosure is approved to UL 508 standards, signifying compliance with industrial safety regulations and suitability for control equipment.

With a wide operating temperature range from -40°C to +90°C, the enclosure is versatile for use across varying environmental conditions. Installation flexibility is provided through DIN rail and fixing plate mounting options, accommodating diverse industrial needs and panel integration scenarios.

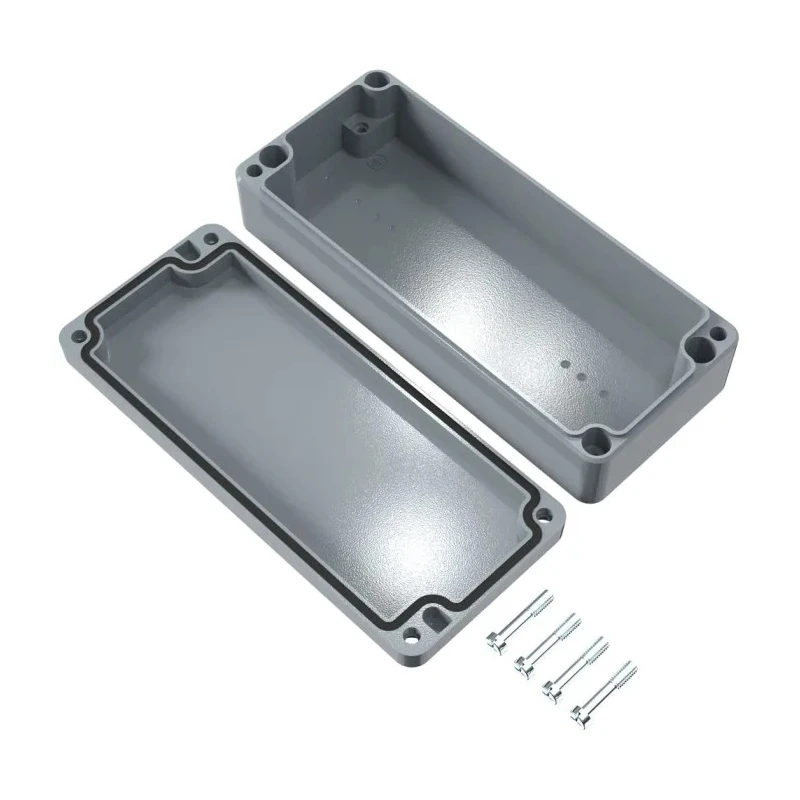

This enclosure comes equipped with earthing screws for effective grounding, as well as captive stainless steel screws to prevent tampering and secure the lid. The robust design, combined with careful attention to sealing and fastening, helps maintain the integrity of internal circuits and devices.

Applications include housing button switching elements, mechanical engineering controls, solar power battery modules, and traffic management systems. Its durability and protection make it a preferred solution for electronics exposed to industrial hazards or outdoor installations.
