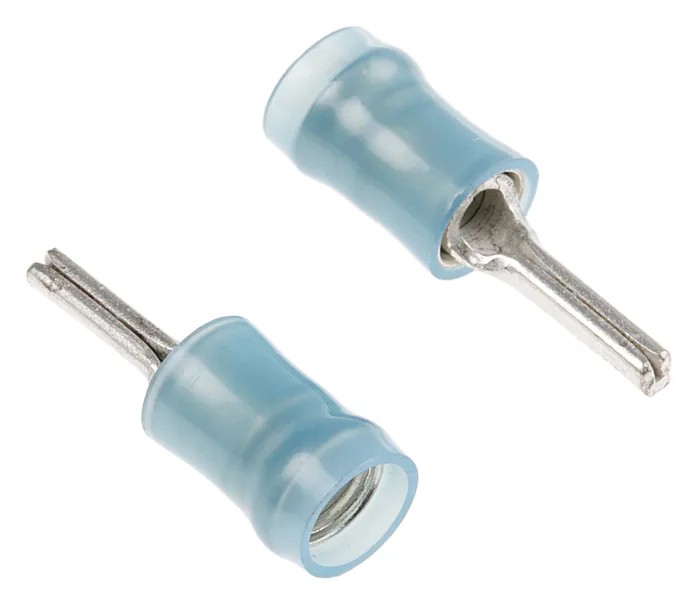

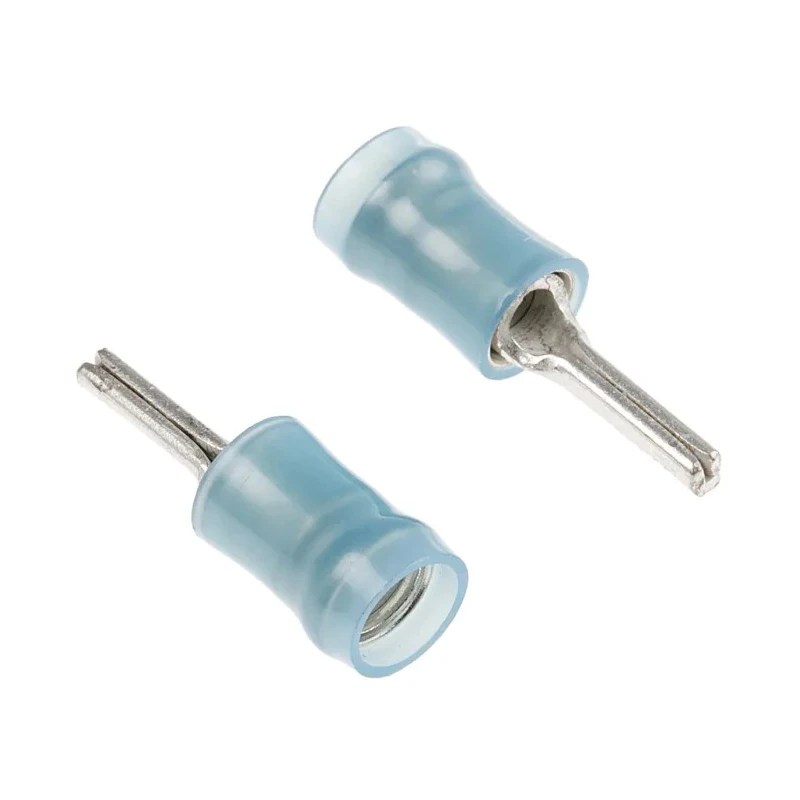

TE Connectivity PIDG Insulated Tin Crimp Pin Connector 16 AWG to 14 AWG 1.8 mm Pin Diameter Blue 165046
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 165046 |
| Insulation | Insulated |
| Overall Length | 20.3mm |
| Series | PIDG |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Pin Diameter | 1.8mm |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
Key Features
- Constructed with high conductivity copper for excellent electrical performance.
- Features a tin-plated contact for corrosion resistance.
- Insulated with durable nylon material and colour-coded blue for wire size identification.
- Pre-Insulated Diamond Grip (PIDG) design ensures uniform, reliable crimps.
- Serrations inside the wire barrel provide strong contact and tensile strength.
- Copper sleeve supports wire insulation and prevents fraying.
- Funnelled wire entry allows fast and easy wire insertion during assembly.
- Suitable for various industrial applications including instruments, lighting, and aerospace.
Product Description
TE Connectivity 165046 PIDG Insulated Tin Crimp Pin Connector is designed for secure and consistent wire termination in electronic and power applications. Rated for 16 AWG to 14 AWG wires, this connector features a 1.8 mm diameter pin making it ideal for efficient circuit connections. The crimp type termination ensures fast and reliable assembly with specialized tooling.
Constructed from high conductivity copper with tin plating on the contact, the connector offers enhanced conductivity and corrosion resistance. The insulated nylon sleeve is colour-coded blue to aid wire size and tooling identification, while providing mechanical support to prevent wire fraying during use.
The PIDG design incorporates serrations inside the wire barrel, which maximize contact area and tensile strength guaranteeing durable electrical and mechanical performance. The funnelled wire entry further improves insertion speed, suited for high volume manufacturing environments.
This connector complies with demanding industrial requirements and is widely used across instrumentation, lighting systems, power supplies, panel boxes, lifting equipment, motors, and aerospace industries. Although it meets rigorous performance standards, it does not have specific certifications listed.
High conductivity copper contact for superior electrical performance. Tin plating improves corrosion resistance and longevity. Colour-coded nylon insulation that supports wire durability and quick identification. Serrated wire barrel design enhances contact reliability and mechanical strength.
Funnelled entry streamlines wire insertion in high-speed production. Versatile usage across industrial, automotive, aerospace, and electrical control applications. Compact size with 20.3 mm overall length for space-efficient designs.
Reliably designed for 16 to 14 AWG wire sizes ensuring broad compatibility.
Available from TE Connectivity, this Crimp Pin Connector delivers consistent performance for complex electronic wiring. Explore more connectors and electronic components at EnvMart for all your industrial and manufacturing needs.
