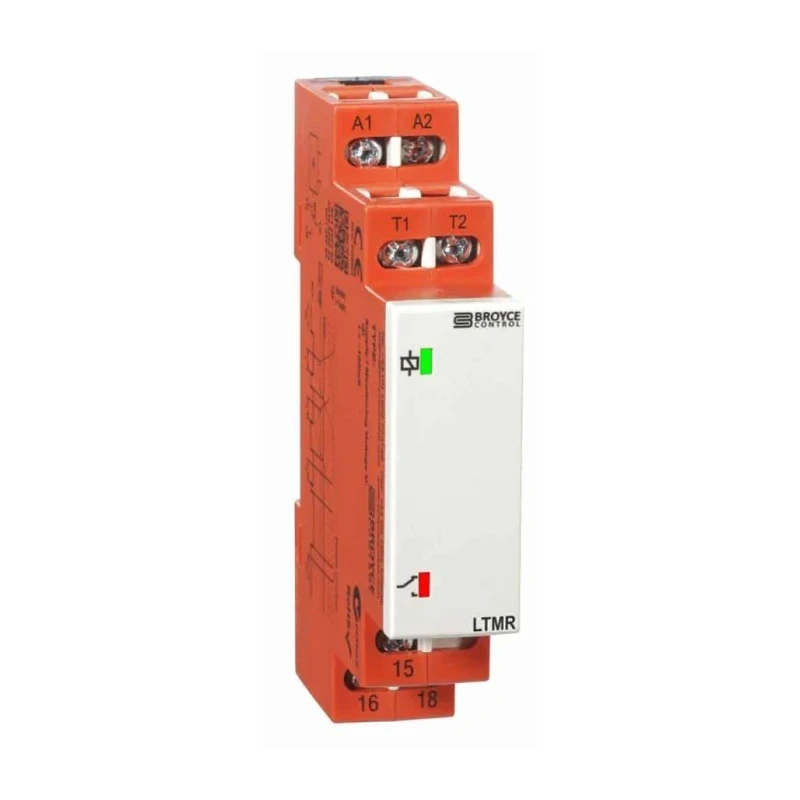

Broyce Control Monitoring Relay, SPDT Contact, DIN Rail Mount, 100, 230V AC Supply LTMR 100-230V AC/DC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 89mm |
| Length | 66.5mm |
| Model | LTMR 100-230V AC/DC |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | L |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Time Delay | 0.5 s |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Standards/Approvals | CMS, CE, RoHS, IEC, EMC |
| Contact Current | 5A |
| Supply AC Voltage | 100, 230V ac |
| Broyce Control Temperature Monitoring Relay, SPDT, DIN RailBrand | Broyce Control |
Key Features
- The relay operates with a supply voltage of 100 and 230V AC.
- Equipped with a 0.5 second time delay for accurate relay response.
- Features a screw terminal type for secure electrical connections.
- Designed to interface with PTC thermistors for motor temperature protection.
- Relay output is SPDT, supporting isolated auxiliary supply.
- Compact DIN rail design with a width of 17.5 mm for easy mounting.
- Operates reliably from -20°C to 60°C ambient temperatures.
- Contact current rating of 5A suitable for control applications.
Product Description
Broyce Control LTMR 100-230V AC/DC monitoring relay is an essential device for industrial and electrical automation systems requiring reliable temperature monitoring and motor protection. Featuring a Single Pole Double Throw (SPDT) contact configuration, this relay interfaces externally with PTC thermistors commonly embedded in motors to detect temperature rises effectively.
This relay monitors the resistance of the thermistor and energizes or de-energizes the relay based on temperature changes. It includes an automatic reset function which requires the resistance to drop below a release threshold before re-energizing, ensuring accurate protective control. The device is mounted on a DIN rail with a compact 17.5mm width for efficient panel installation.
Operating with a supply voltage range of 100 and 230 volts AC, the LTMR model provides a 0.5 second time delay for stable relay switching to prevent nuisance triggering. Its screw terminal type ensures robust and reliable electrical connections in industrial environments.
Operating temperatures between -20°C and 60°C make it suitable for a variety of ambient conditions in industrial, manufacturing, HVAC, and construction applications. A contact current rating of 5A supports common control and signaling circuits.
SPDT contact output with isolated auxiliary supply for versatile control integration. Over-temperature detection using external PTC thermistors for motor protection. Wide temperature range ensures operational stability in harsh environments.
Compact design compatible with standard DIN rail mounting systems. Certified to international standards including CMS, CE, RoHS, IEC, and EMC to assure product safety and reliability.
This Broyce Control monitoring relay is ideal for electrical control panels, automation systems, and industrial machinery requiring precise temperature monitoring and protective relay functions. Available with robust industry-standard mounting and connection features, it supports efficient installation and reliable operation.
Explore more Monitoring Relays and control devices in the Electronics & Electricals category at EnvMart, designed for industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range of 100 to 230V AC.
This model features a Single Pole Double Throw (SPDT) contact configuration.
The relay includes a time delay of 0.5 seconds for stable switching.
The maximum operating temperature is 60°C.
It is designed for DIN rail mounting with a compact width of 17.5 mm.
The contact current rating is 5A, suitable for control applications.
The dimensions are 89 mm in height, 66.5 mm in length, and 17.5 mm in width.
It features screw terminals for secure and reliable electrical connections.
The minimum operating temperature is -20°C.
It is certified to CMS, CE, RoHS, IEC, and EMC standards.
It is suitable for industrial, manufacturing, HVAC, and construction applications requiring temperature monitoring and motor protection.
It interfaces with PTC thermistors to detect temperature rises and energizes or de-energizes the relay based on temperature changes.
