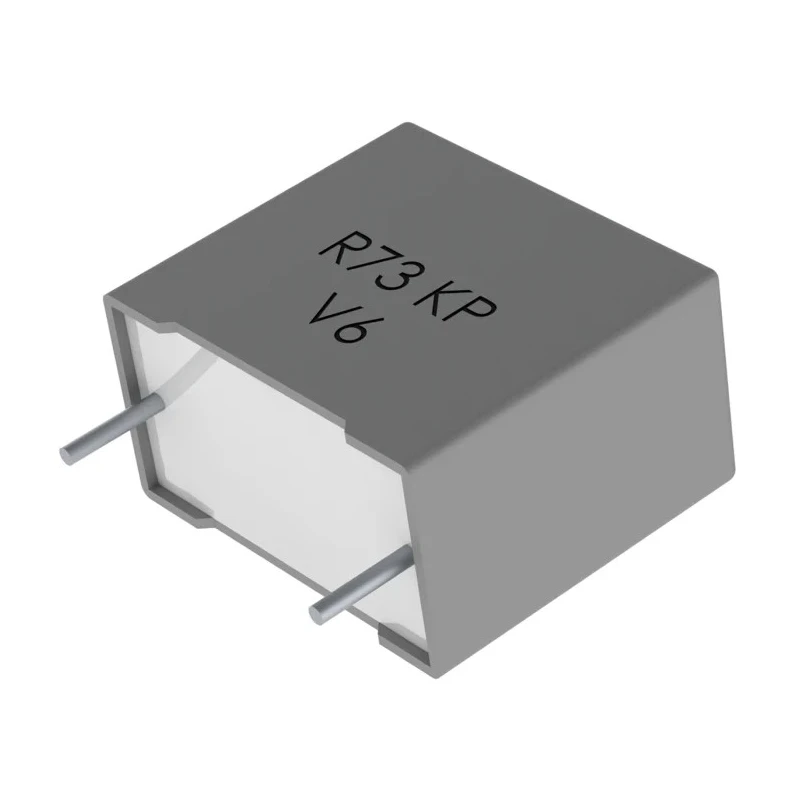

KEMET R73 Film Capacitor ±5% 22nF 1.6kV DC 450V AC Through Hole R73TN2220SE00J
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 18.5mm |
| Length | 26.5mm |
| Model | R73TN2220SE00J |
| Packaging | Bag |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | R73 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Lead Length | 4mm |
| Standards/Approvals | IEC 60286-2, RoHS |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 450V ac |
| Rated DC Voltage | 1.6kV dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Provides a capacitance value of 22nF for accurate filtering and timing circuits.
- Rated for high-voltage operation at 1.6kV DC and 450V AC.
- ±5% tolerance ensures reliable and consistent performance in electronic assemblies.
- Through-hole mounting design facilitates stable mechanical installation.
- Encapsulated in self-extinguishing plastic meeting UL94V-0 safety standard.
- Lead pitch of 22.5mm and lead diameter of 0.8mm for easy PCB integration.
- AEC-Q200 automotive standard, suitable for high-frequency and pulse handling applications.
- Wide temperature range from -55°C to 105°C supports operation in harsh environments.
Product Description
KEMET R73TN2220SE00J Film Capacitor is engineered for precision and reliability in demanding electronic circuits, offering a capacitance of 22nF combined with high voltage handling capabilities of 1.6kV DC and 450V AC.
This capacitor features a through-hole design, making it ideal for stable mechanical placement and secure soldering in printed circuit boards. With an encapsulated plastic case that complies with UL94V-0 self-extinguishing requirements, it provides robust safety and long-term durability for industrial, automotive, power electronics, and instrumentation projects.
The ±5% tolerance ensures accurate performance, maintaining consistent capacitance values under varying operating conditions. Its lead pitch of 22.5mm and lead diameter of 0.8mm facilitate straightforward PCB integration, while the 4mm lead length allows for flexible mounting.
Designed to meet the AEC-Q200 automotive standard, this capacitor is well suited for high-frequency, timing network, filter applications, and pulse handling requirements in environments where reliability is critical. Its wide operating temperature range from -55°C to 105°C enables versatile use in harsh and variable settings.
The R73 series is recognized for its quality and compliance with industry standards including IEC 60286-2 and RoHS. Applications include tuned circuits, timing networks, filtering, and high-performance pulse circuitry in industrial, laboratory, automotive, and commercial electronics.
For engineers and designers looking for robust, high-voltage, precision film capacitors, KEMET R73TN2220SE00J provides optimum performance and reliability. Explore more in the Film Capacitor category and KEMET brand catalog on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 22nF, making it suitable for accurate filtering and timing circuits.
It is rated for a maximum DC voltage of 1.6kV and an AC voltage of 450V.
The capacitor has a tolerance of ±5%, ensuring reliable and consistent performance in electronic assemblies.
The lead pitch is 22.5mm, and the lead diameter is 0.8mm, facilitating easy integration into printed circuit boards.
It operates within a temperature range of -55°C to 105°C, making it suitable for harsh environments.
This capacitor features a through-hole mounting design, which provides stable mechanical installation.
It complies with IEC 60286-2 and RoHS standards, ensuring it meets industry requirements.
The dimensions of this model are 18.5mm in height, 10mm in width, and 26.5mm in length.
The lead length is 4mm, allowing for flexible mounting options.
Yes, it meets the AEC-Q200 automotive standard, making it suitable for automotive and high-frequency applications.
The capacitor is packaged in a bag for distribution.
It is suitable for applications including tuned circuits, timing networks, filtering, and high-performance pulse circuitry.
