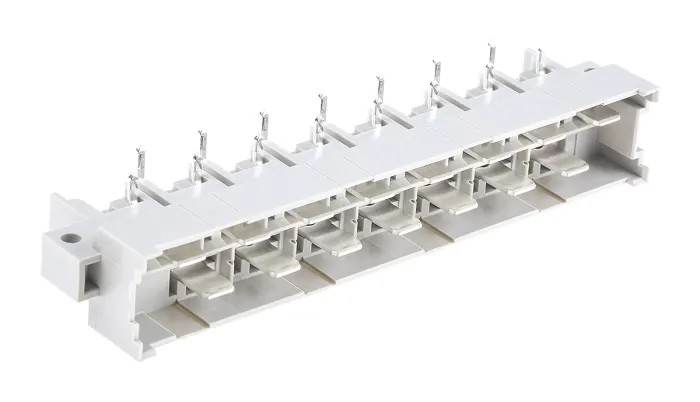

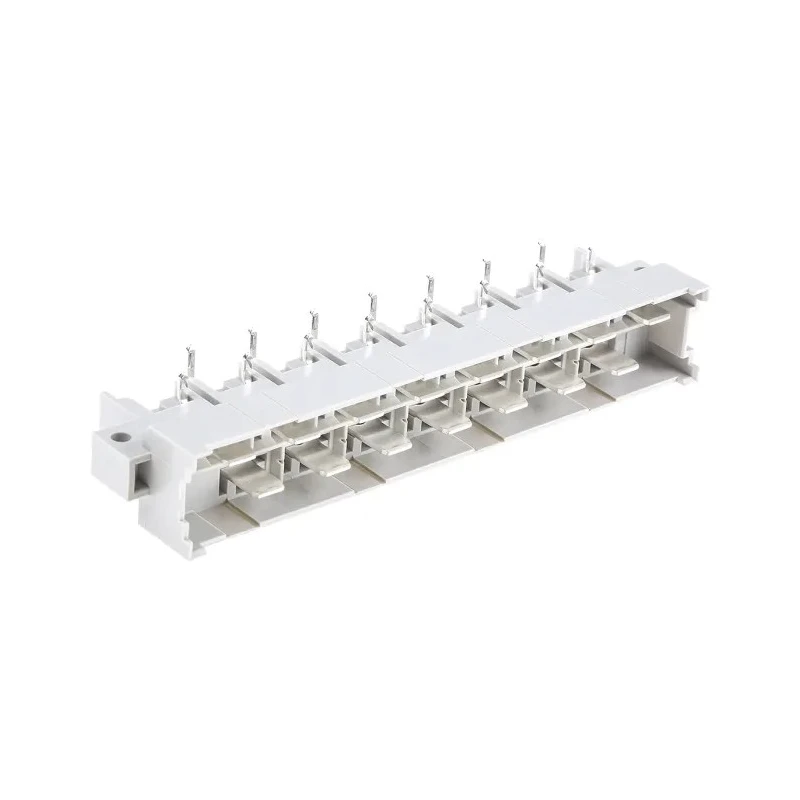

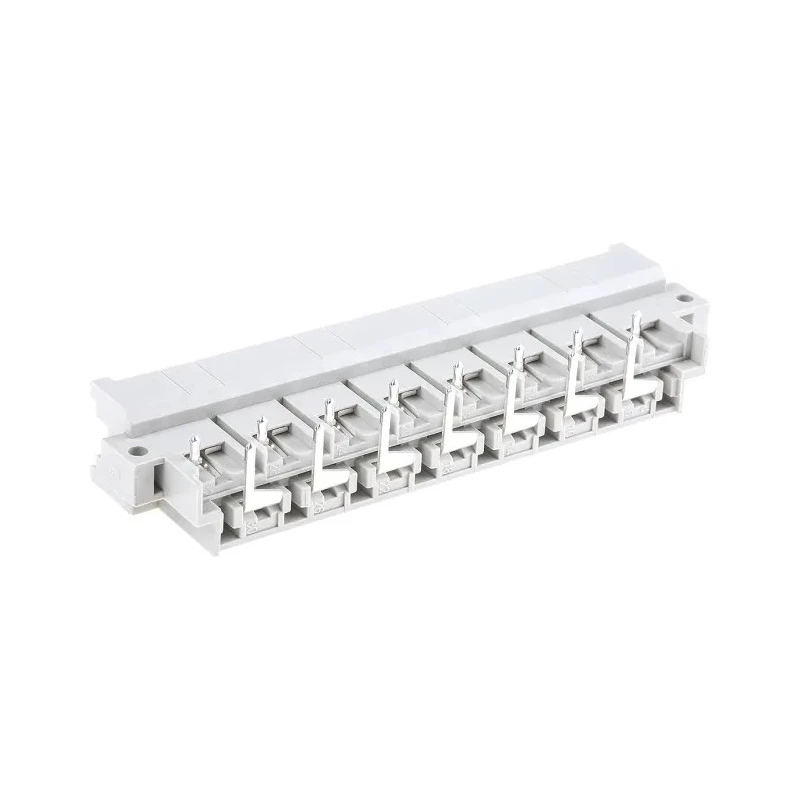

HARTING DIN 41612 Connector, 15 Way, 10.16 mm Pitch, Right Angle, Through Hole, Solder, H15, Class C1, Male 09061152911

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Connector, 15 Way, 10.16 mm Pitch, Right Angle, Through Hole, Solder, H15, Class C1, Male 09061152911

Name: HARTING DIN 41612 Connector, 15 Way, 10.16 mm Pitch, Right Angle, Through Hole, Solder, H15, Class C1, Male 09061152911
Brand: HARTING
SKU: 87480
Price: 14.87 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Romania
Brand	HARTING
Orientation	Right Angle
Current	15A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	H15
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	10.16mm
Contact Plating	Silver over Nickel
Number of Contacts	15
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	8mΩ
Row Loading	D/Z
ERNI 15 Way 10.16mm Pitch, 2 Row, Right Angle DIN 41612 Connector, PlugBrand	ERNI

Key Features

High-performance DIN 41612 connector with 15 contacts for versatile electronic applications.
Right-angle design ideal for compact installations and space-constrained systems.
Solder termination method ensures durable and reliable electrical connections.
Thermoplastic polybutylene terephthalate housing provides excellent insulation and temperature resistance.
Copper alloy contacts with silver over nickel plating offer outstanding electrical conductivity.
Withstands extreme operating temperatures from -55°C to +125°C for robust industrial environments.
Rated for 15A current, suitable for high current and demanding circuits.
Through hole mounting enables secure PCB integration in control panels and assemblies.

Product Description

The HARTING DIN 41612 Connector, model 09061152911, is engineered for critical electronic and industrial applications requiring reliable connectivity and robust mechanical performance. Featuring 15 male contacts arranged in two rows with a 10.16 mm pitch, this right-angle connector supports space-saving PCB layouts and efficient wiring management in compact enclosures.

Designed for through-hole mounting, the connector simplifies installation in control panels, automation systems, and electronic assemblies by providing strong mechanical fastening and electrical integrity. The solder termination method delivers permanent, low-resistance connections, enhancing signal stability and overall circuit reliability.

Its housing is crafted from durable thermoplastic polybutylene terephthalate, ensuring high insulation properties and resistance to heat, vibration, and environmental stressors. Copper alloy contacts are plated with silver over nickel to optimize conductivity and minimize contact resistance, meeting the demanding standards of industrial-grade connectors.

The connector is rated for up to 15A current, making it suitable for high-current and power-heavy applications such as machinery controls, automation modules, and data transmission interfaces. Operating across a wide temperature range from -55°C to 125°C, it is well-suited for extreme environments and mission-critical installations.

HARTING's DIN 41612 Series offers consistent performance, conforming to precise engineering specifications. The H15 subtype, D/Z row loading, and Class C1 designation ensure compatibility with standard backplane and rack systems used in professional electronic equipment.

This connector is widely used in industrial automation, laboratory instrumentation, mechanical devices, commercial control panels, and advanced electronic signal assemblies, where dependable mechanical and electrical performance is essential.

Explore more DIN 41612 Connectors and industrial-grade electronics on EnvMart from the HARTING brand for your next project.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a maximum current of 15A, making it suitable for high-current applications.

The contacts are arranged with a pitch of 10.16 mm, allowing for efficient space management in PCB layouts.

The housing is made from thermoplastic polybutylene terephthalate, while the contacts are copper alloy plated with silver over nickel for enhanced conductivity.

It can operate in extreme temperatures ranging from -55°C to 125°C, suitable for various industrial environments.

This connector features a through-hole mounting design, which provides secure integration into control panels and electronic assemblies.

It uses a solder termination method, ensuring permanent and low-resistance electrical connections.

The connector is equipped with 15 male contacts, arranged in two rows.

The maximum contact resistance is rated at 8 mΩ, which helps maintain signal integrity.

This model is designed with a right-angle orientation, ideal for compact installations.

It is widely used in industrial automation, laboratory instrumentation, and commercial control panels, where reliable connectivity is essential.

The connector features a D/Z row loading configuration, ensuring compatibility with standard backplane and rack systems.

The country of origin for this connector is Romania.
