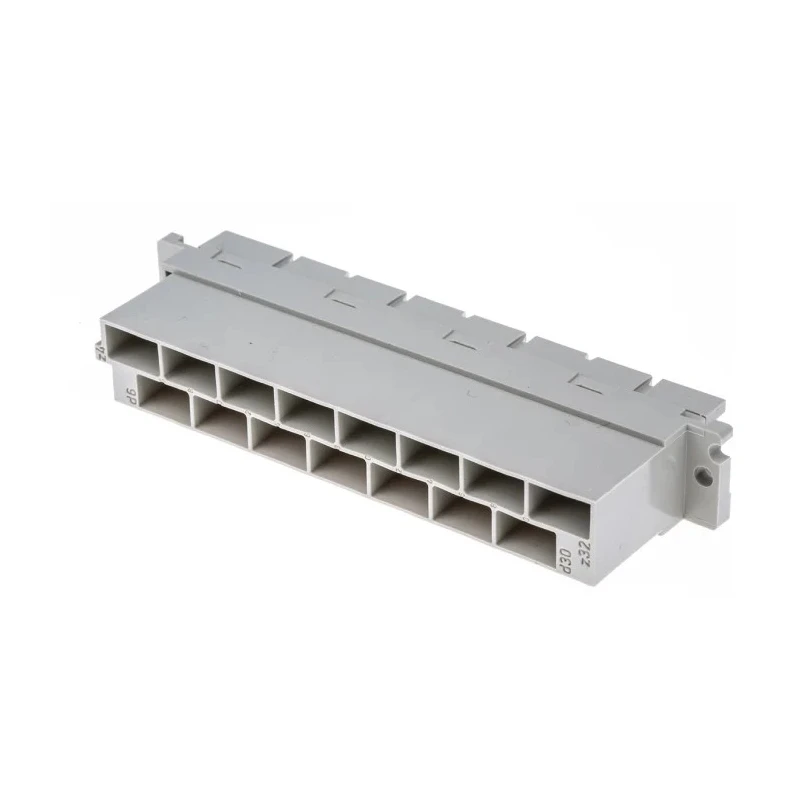

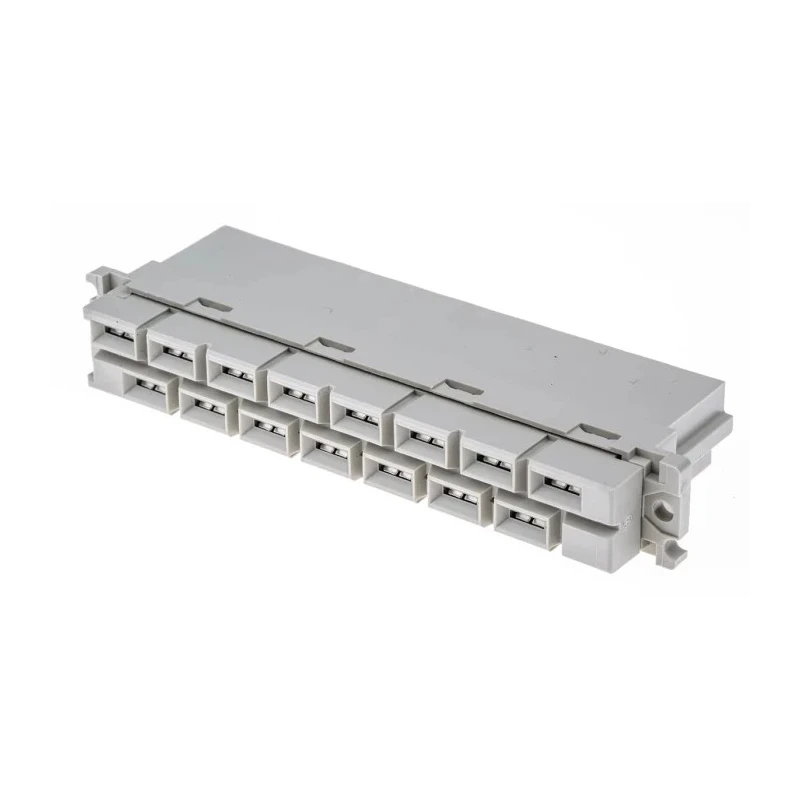

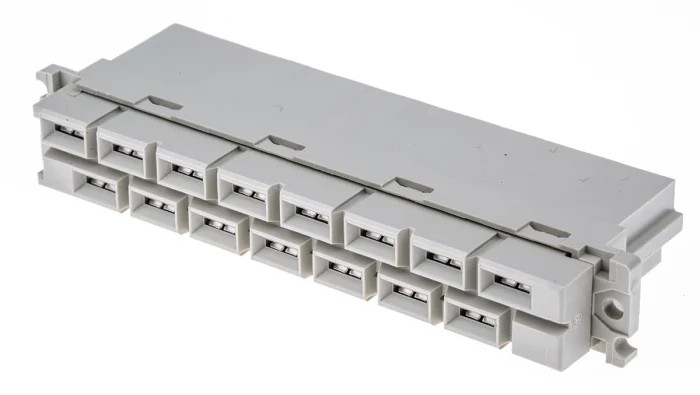

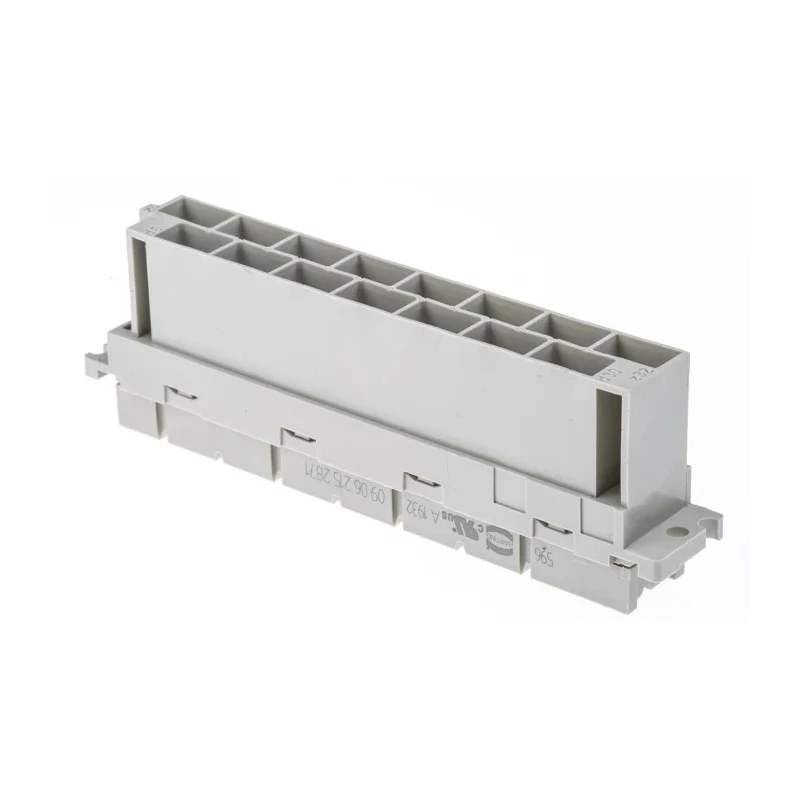

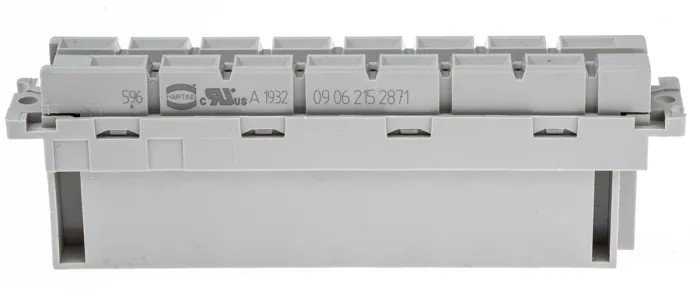

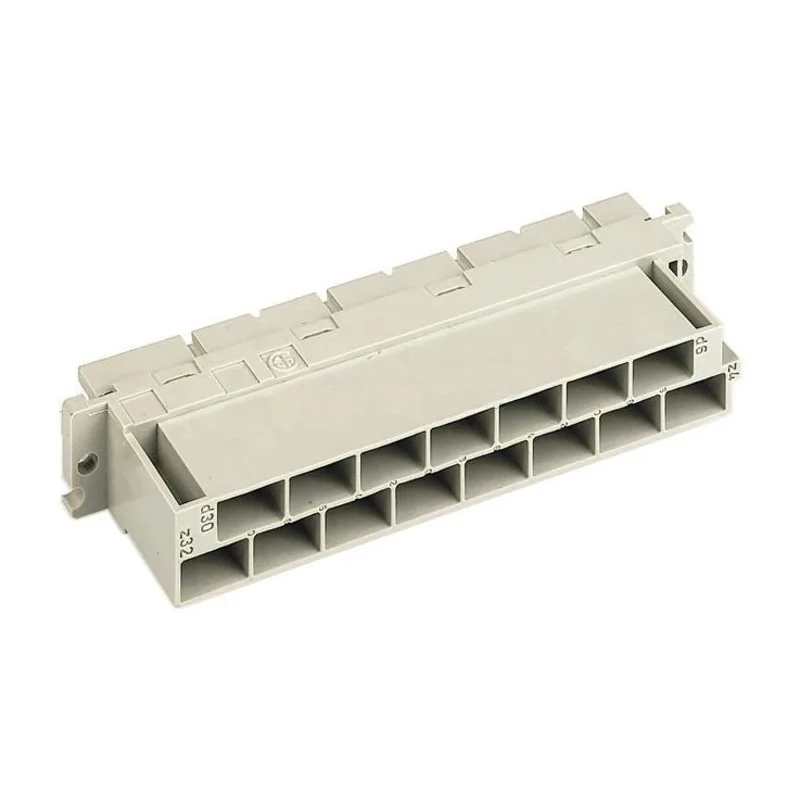

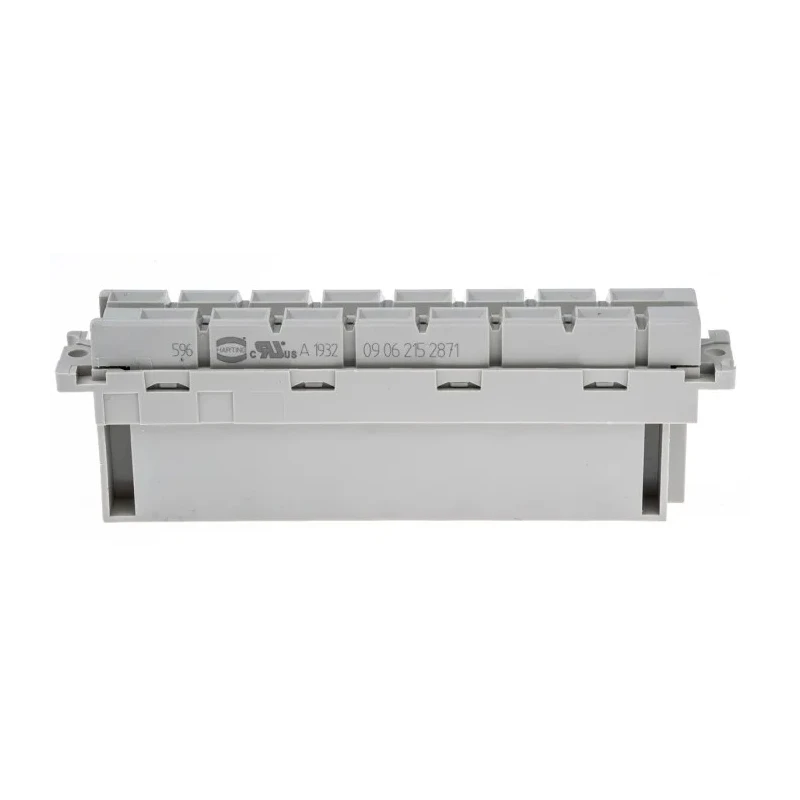

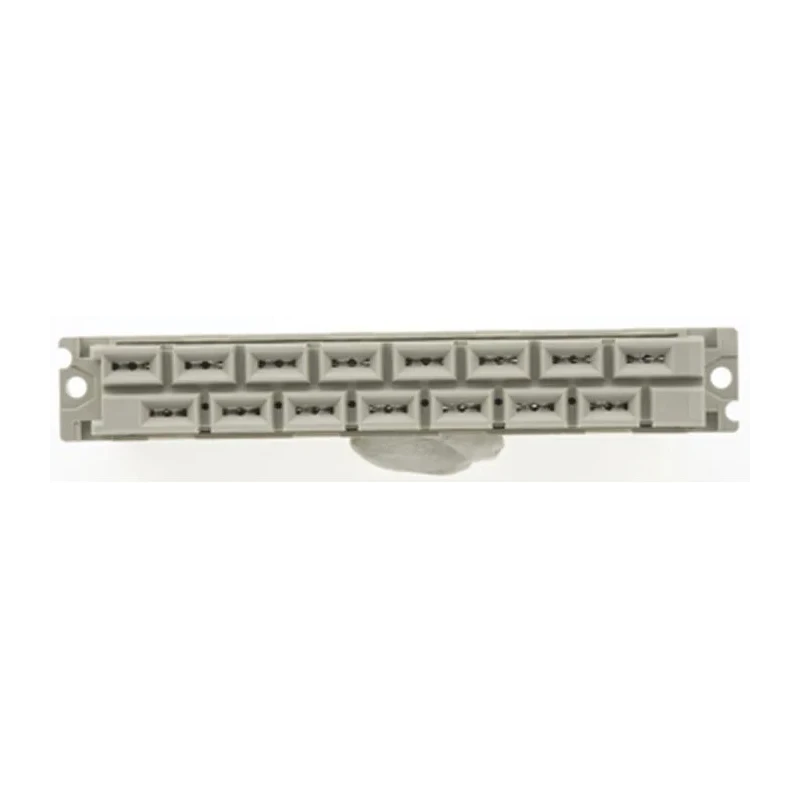

HARTING DIN 41612 Connector Female 15 Way 10.16 mm Pitch Type H15 Faston Class C1 Straight 09062152871

The HARTING DIN 41612 09062152871 is a female connector engineered for precision rack and panel interconnections in control and electronic assemblies. With its 15-way contact arrangement and D/Z row loading, this connector reliably distributes signals and power in automation systems, process controls, and industrial cabinets.

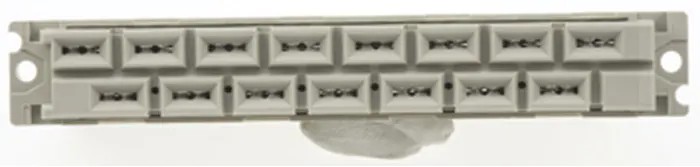

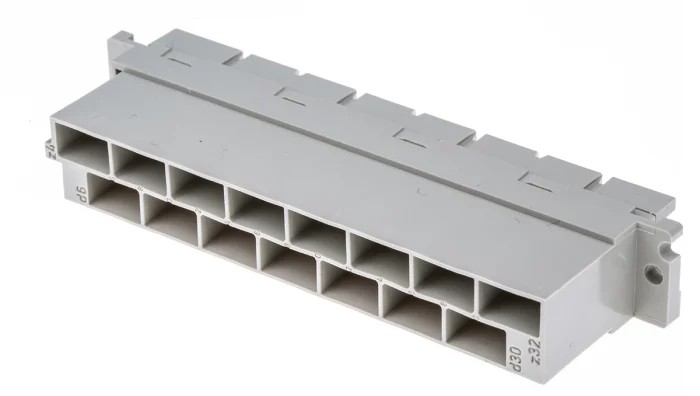

The connector’s two-row structure, each row spaced at 10.16 mm, allows installation in dense backplane configurations, supporting robust harnesses and modular equipment. The Faston termination design makes field installation straightforward, eliminating the need for soldering and providing quick replacements during maintenance cycles. Its straight orientation allows easy inline mating with compatible headers or panels.

Rated for 15A current capacity, the connector is well suited for applications requiring both power and signal paths, such as programmable logic controllers, interface boards, and industrial control racks. Insulating Polybutylene Terephthalate (PBT) housing maintains performance at temperatures ranging from -55°C to 125°C, ensuring reliability in adverse environments. The copper alloy contacts are silver plated for enhanced conductivity, corrosion resistance, and extended contact life, with a maximum resistance of 8 mΩ to minimize voltage drops.

Operation is stable across demanding thermal conditions, and the Class C1 designation indicates its suitability for numerous control, automation, and wiring scenarios. The D/Z loading arrangement provides the flexibility needed for mixed wiring patterns, making it ideal for custom harnesses and panel layouts. The female gender and straight mechanical orientation mean it's particularly useful for mating in rack assemblies or cabinet installations.

Common industrial use cases include rack-mounted control cabinets, signal and power links in automation equipment, wiring harnesses requiring robust current handling and contact finishes, and electrical assemblies needing a compact, resilient connector.

15 contacts arranged in two parallel rows for diverse wiring. Rated up to 15A for both signal and power connections. Faston termination enables tool-free field installation and fast replacement. Silver plating delivers improved conductivity and wear resistance.

Polybutylene Terephthalate housing tolerates elevated temperatures.
