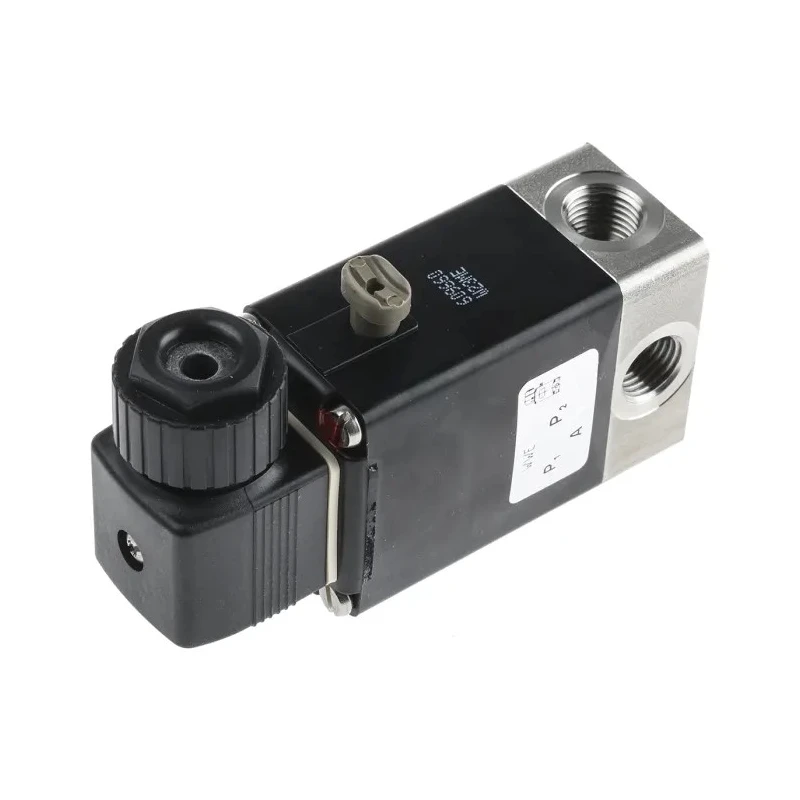

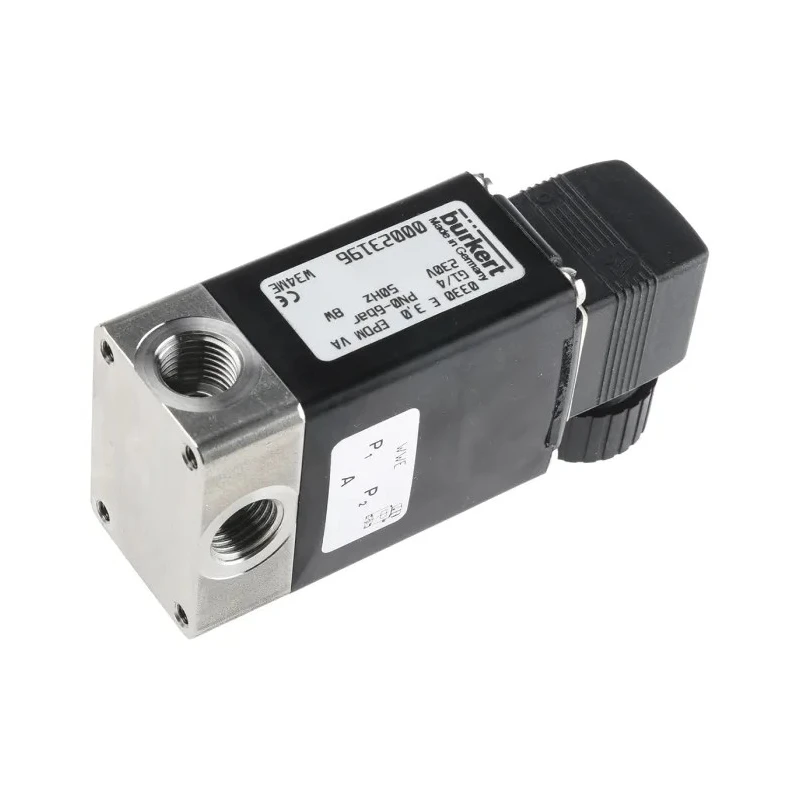

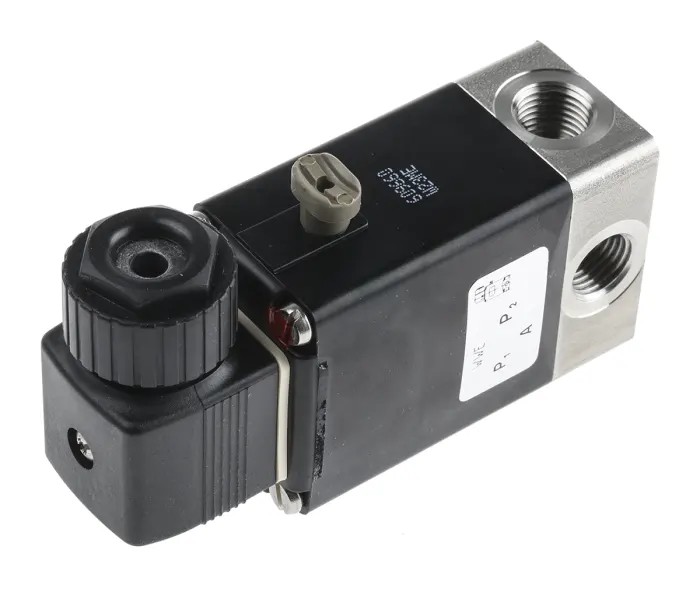

Burkert Solenoid Valve 3 Port NO/NC, Stainless Steel, 230V AC, 1/4 in, Model 021396

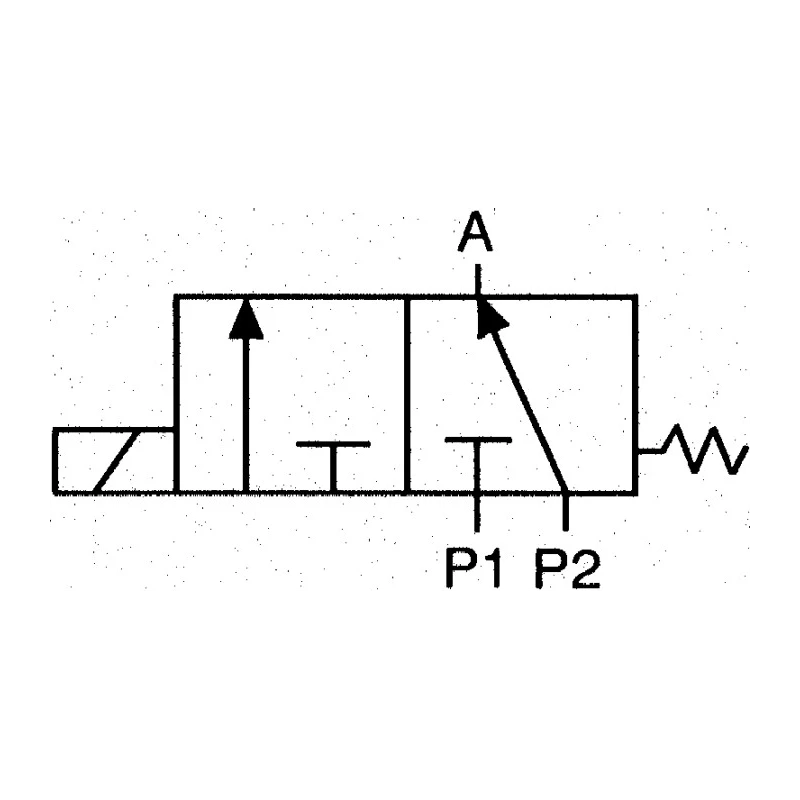

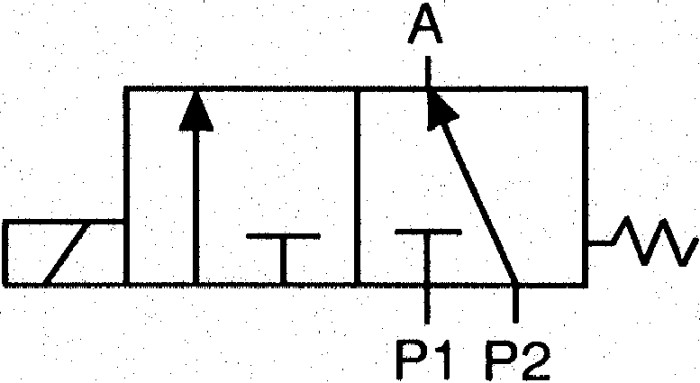

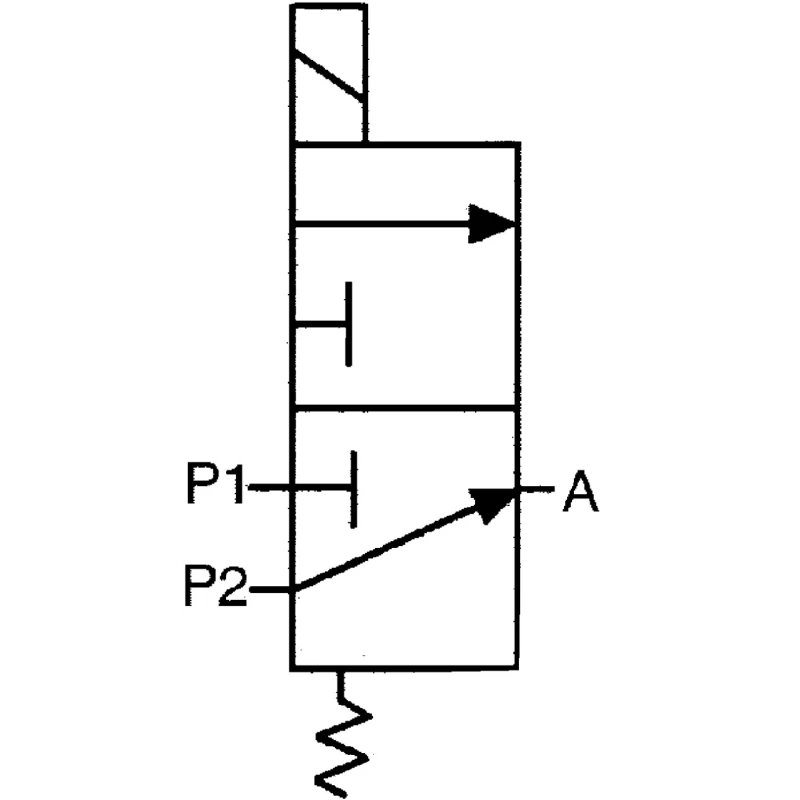

The Burkert 021396 Solenoid Valve is a precision-engineered solution for controlling the flow of gases and aggressive fluids in industrial applications. Featuring a three-port design, this valve provides efficient switching between normally open and normally closed states, offering flexibility for diverse process environments. Its stainless steel body ensures robustness and resistance to corrosion, making it suitable for demanding applications in water treatment, manufacturing, laboratory, and process automation sectors.

This valve operates on a 230V AC supply, making it compatible with standard electrical systems. The 1/4 inch BSP parallel port design allows for simple integration with stainless compression fittings, supporting seamless connection to piping systems common in fluid power setups. The IP65-rated, 3-pin DIN electrical connector is rotatable in 90° increments, enabling easy installation and cable management in crowded environments.

With a maximum operating pressure of 6 bar and a fluid temperature range from -30°C to +90°C, the Burkert 021396 is engineered for use with a range of gases and fluids. It delivers a flow factor Kv of 0.23 m³/h, supporting moderate throughput requirements in automated processes. The lockable manual override allows for manual control during maintenance or emergencies, enhancing operational flexibility.

Zero head pressure operation capability and the robust construction make this solenoid valve a reliable choice for critical industrial, laboratory, hazardous area (not certified), and HVAC systems. Its compact design, combined with high efficiency and durable performance, addresses a variety of commercial and manufacturing needs.

Applications for the Burkert 021396 include fluid automation, chemical dosing, water treatment, gas control, process engineering, laboratory fluid distribution, and system integration in commercial buildings. Its high-pressure operation and aggressive fluid handling are particularly suited for precision chemical and laboratory environments.

All technical details are professionally verified and factually supported. Explore more Solenoid Valves and Burkert automation solutions in the EnvMart catalog for robust industrial flow control.
