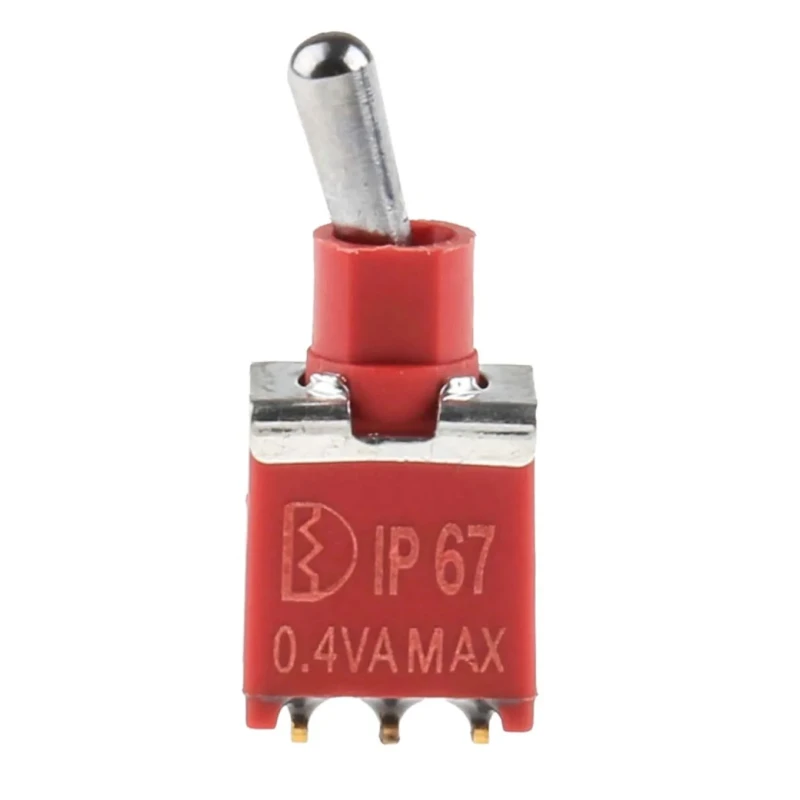

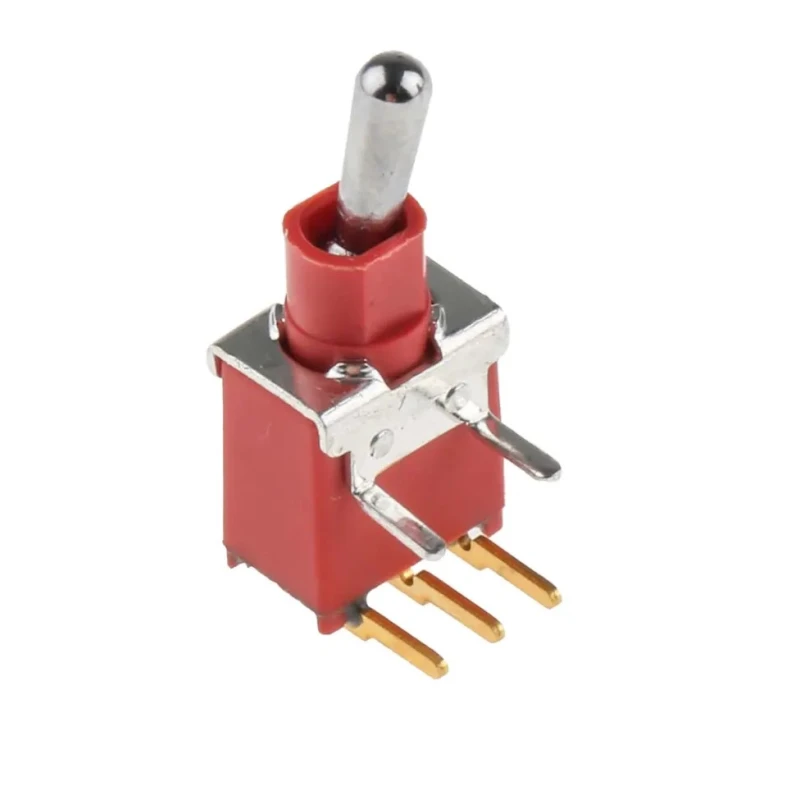

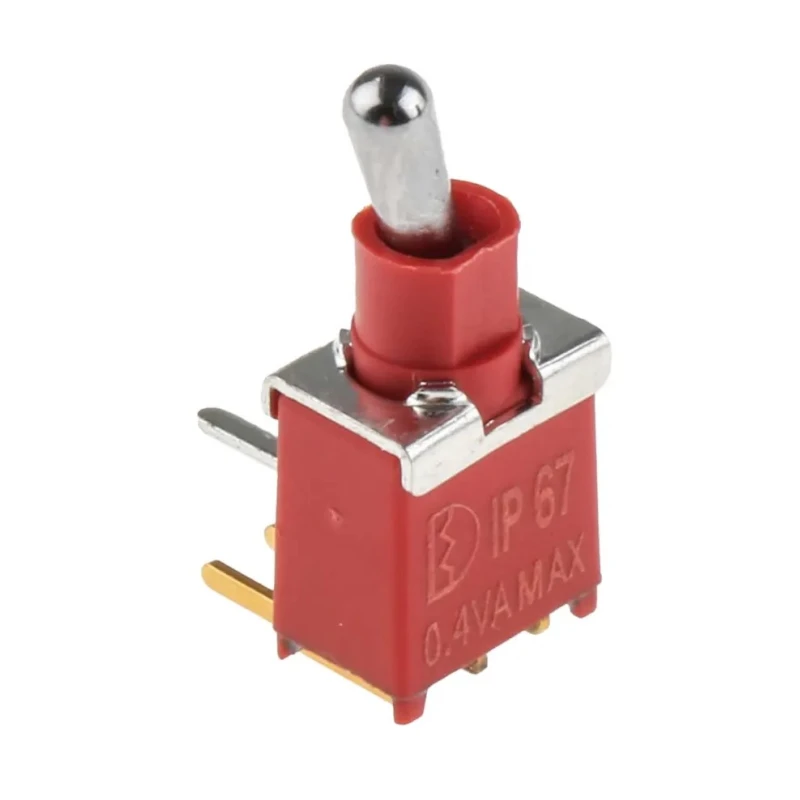

RS PRO Toggle Switch PCB Mount On-On SPDT Solder Terminal IP67 15V DC 240V AC 401-686

The RS PRO 401-686 Toggle Switch is a robust Single Pole Double Throw (SPDT) component designed for reliable control applications in industrial, marine, and vehicle environments. With its PCB mount configuration, this switch enables effective switching between two electrical circuits, making it highly versatile for assembly lines, equipment panels, and automation systems.

This On-On toggle switch offers latching operation, allowing for dependable circuit selection and mode toggling. The switch delivers a contact current rating of up to 400mA at a maximum of 15V DC and 240V AC, supporting both low-voltage and mains-powered devices. Its solder terminals, paired with epoxy-sealed through-hole construction, ensure secure and stable mounting on printed circuit boards.

Engineered with an IP67 ingress protection rating, the RS PRO 401-686 is resistant to dust and water immersion up to 1 meter for 30 minutes, making it suitable for use in demanding environments such as boating panels, marine equipment, and outdoor installations.

The actuator is constructed from durable brass and includes an O-ring seal for additional waterproofing. With an actuator length of 6.1 mm, the switch is ergonomically designed for easy operation. The gold-plated copper alloy contacts provide enhanced corrosion resistance, low contact resistance, and stable electrical performance.

The switch is rated for up to 30,000 mechanical cycles, ensuring long-term reliability. It operates effectively across a wide temperature range, from -30°C to +85°C, making it appropriate for varied climate conditions. The switch is RoHS, CE, CSA, and UL compliant, guaranteeing safety and high-quality standards for industrial use.

Common applications include panel controls, vehicle dashboard switches, industrial machinery controls, marine installations, and PCB-mounted modular controls. Its rugged sealing and durability make this switch a preferred choice for engineers seeking performance in critical and outdoor applications.

Single Pole Double Throw (SPDT) switch ideal for PCB mounting applications. On-On operation supports switching between two independent circuits. Rated to handle 400mA contact current at up to 15V DC or 240V AC. Solder terminals and epoxy-sealed through-hole construction ensure reliable installation.

Ingress protection IP67, suitable for harsh and wet environments. Brass actuator with O-ring sealing, actuator length 6.1 mm. Gold-plated copper alloy contacts provide corrosion resistance and stable performance. Mechanical life of 30,000 cycles for extended durability.

Operating temperature range from -30°C to +85°C. Latching operation, not illuminated; suitable for marine, industrial, and vehicle control panels. Explore more Toggle Switches and industrial switching solutions on EnvMart for reliable, high-performance components from RS PRO and other trusted brands.
