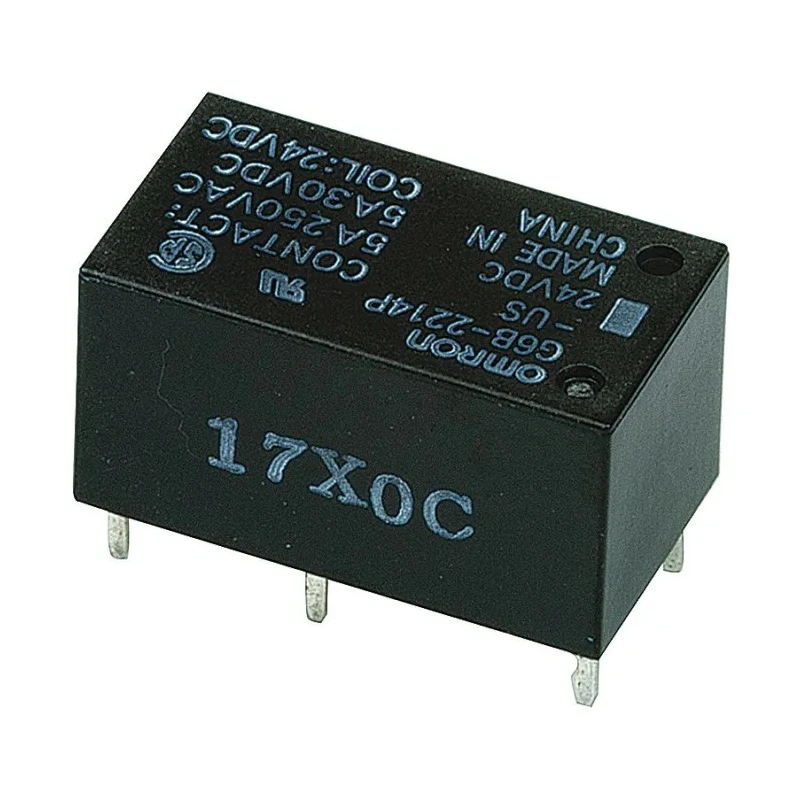

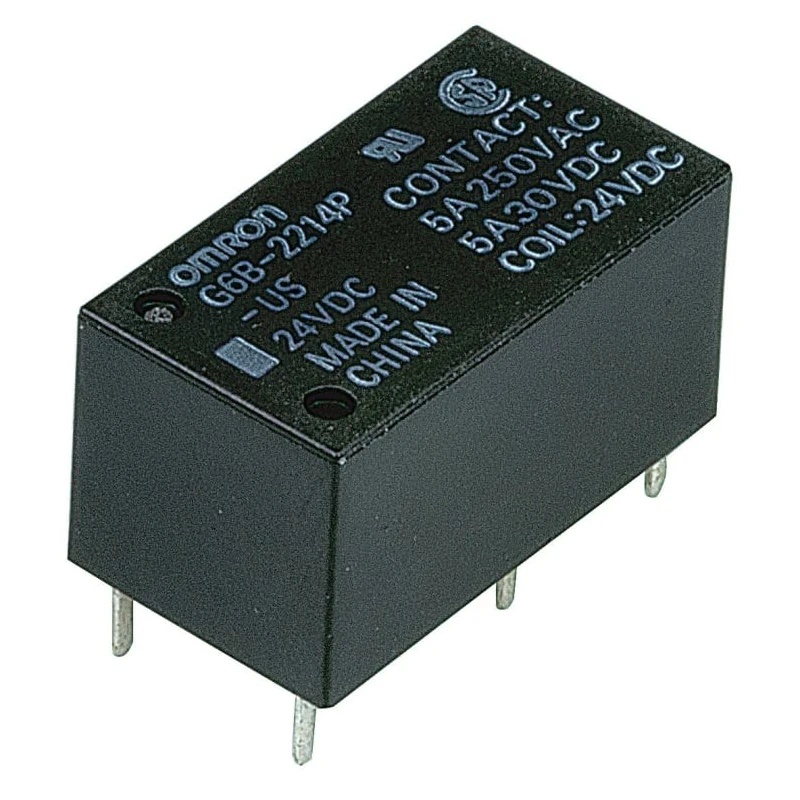

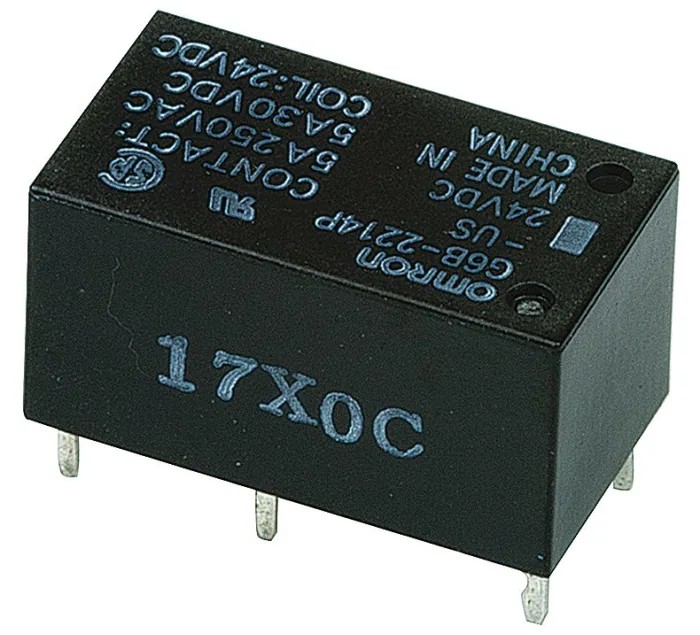

Omron PCB Power Relay 24V DC, 5A Switching Current, DPST, Solder Terminal, G6B-2214P-US DC24

The Omron G6B-2214P-US DC24 PCB Power Relay is expertly engineered for PCB mounting, offering a compact and efficient solution for electrical and automation circuit switching. As a member of the Omron G6B series, it incorporates a unique moving loop armature to minimize relay size, magnetic interference, and contact bounce time. This design ensures high reliability and consistent performance in demanding control circuits.

This relay features a 24V DC coil and DPST (Double Pole Single Throw) contact configuration, supporting a full 5A switching current. The contact material is silver alloy, combining excellent conductivity with long service life. With solder terminals, the relay is simple to integrate into PCB designs, promoting rapid assembly and reducing installation complexity.

The G6B-2214P-US DC24 relay boasts strong electrical isolation and a high dielectric strength, making it well-suited for industrial power management, control outputs, and signal switching within machinery or automation boards. It is fully sealed for enhanced protection against dust and environmental contaminants, maximizing operational reliability in harsh industrial and laboratory conditions.

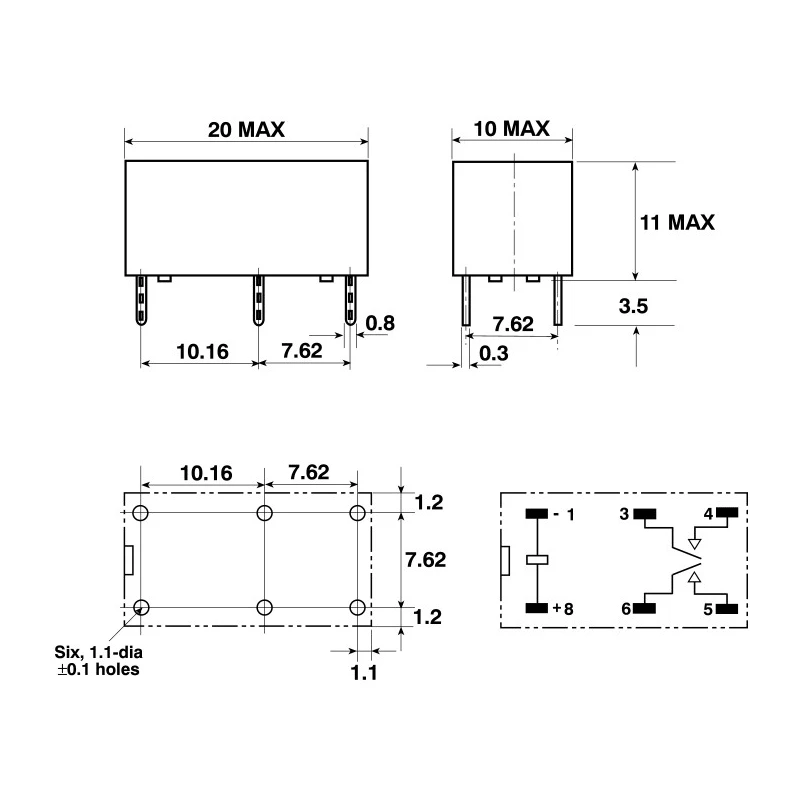

Thanks to its subminiature form factor measuring 20x10x10 mm, and low coil power consumption of only 200 mW, this relay is ideal for applications requiring high density installations or low energy usage, such as PLCs, controller outputs, sensors, or HVAC control panels.

The relay can switch AC voltages up to 380V and DC voltages up to 125V, making it adaptable to a wide range of signal and power switching tasks. Its operating temperature range from -25°C to 70°C, RoHS compliance, and robust construction add to its suitability for industrial, commercial, and laboratory environments.

Common application sectors include automation panels, instrumentation, HVAC controls, industrial machinery, and signal control systems within manufacturing, process automation, or lab facility settings.

This product does not include any additional mounting accessories or sockets. Please consult the datasheet for recommended PCB layouts and further integration guidelines. For more advanced power relay solutions, explore the Omron G6B series for different coil voltages and contact configurations.
