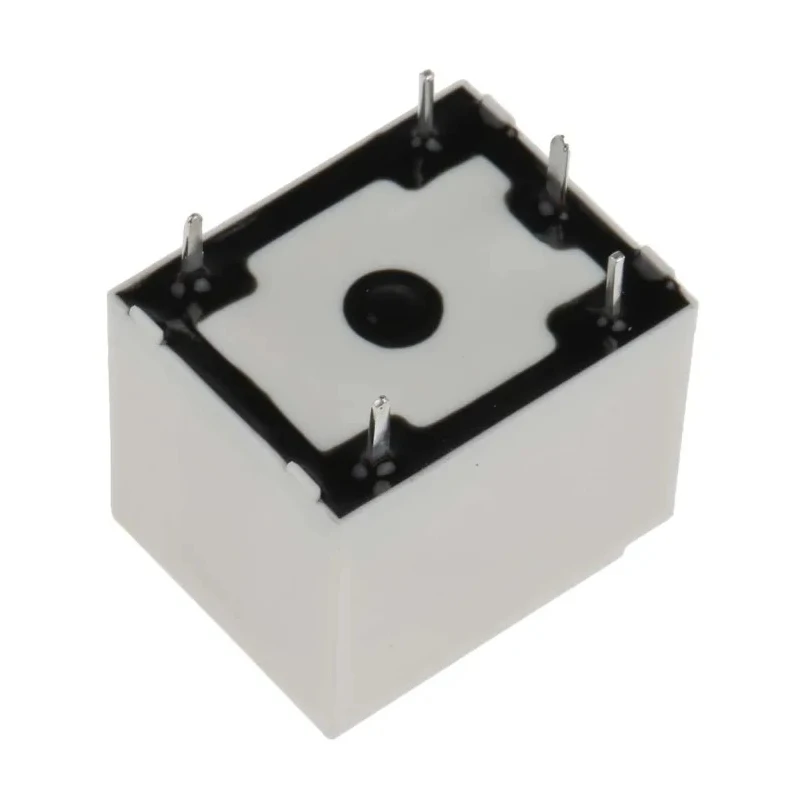

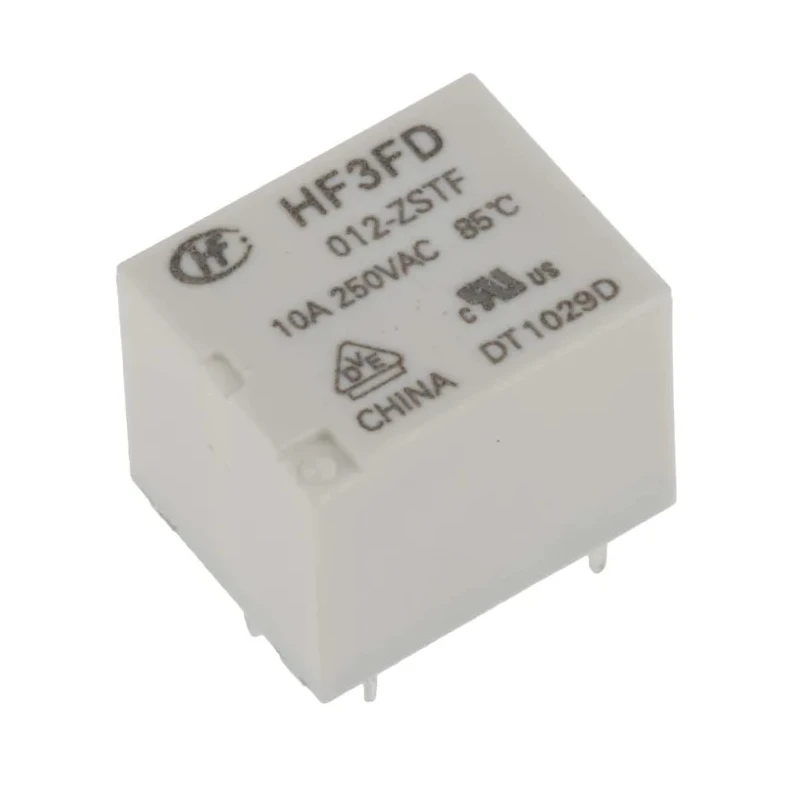

RS PRO PCB Power Relay 12V DC Coil 10A Switching Current SPDT 476-583

The RS PRO 476-583 PCB Power Relay is a versatile and reliable electromechanical component engineered for electronic control, automation, and switching applications. This relay features a 12V DC coil and is capable of handling a switching current up to 10 amperes, providing robust performance within a compact subminiature package. The single pole, double throw (SPDT) configuration allows for rapid and dependable switching, making it ideal for a wide variety of industrial, commercial, and consumer electronic systems.

Designed specifically for PCB mounting, its small footprint of 19 mm (length) by 15.2 mm (depth) by 15.5 mm (width) ensures optimal space efficiency on circuit boards. The device utilizes a solder terminal mounting system, providing secure and lasting electrical connections even under demanding operating conditions. The relay boasts a coil resistance of 400 ohms, a coil power rating of 360 mW, and can operate reliably across a wide ambient temperature range from -40°C to 105°C.

Manufactured to stringent safety standards, the RS PRO 476-583 relay meets RoHS compliance for environmental safety and UL94 V-0 flammability classification, ensuring its reliability in demanding environments. The contacts are composed of high-conductivity silver alloy, which ensures minimal contact resistance and a long operational life, even under repeated switching cycles. With a maximum switching voltage of 30V DC and 30V AC and a switching power capability of up to 2.77 kVA, this unit can be integrated into low-voltage power distribution, control logic, and signal switching applications.

The robust construction and subminiature, standard PCB layout make this relay suitable for applications such as industrial machinery control panels, automotive electronics, household devices, medical instrumentation, and telecommunications systems. The relay's non-latching mechanism returns to its default position after de-energization, which simplifies design in circuits that require automatic reset behavior.

Engineers and system designers can take advantage of the relay’s environmentally friendly design and competitive quality, ensuring reliable system operation. Its terminal compact size streamlines integration, while the resistance to high operating temperatures and wide ambient range mean it performs dependably even in harsh or variable climates.

In summary, the RS PRO PCB Power Relay 476-583 is a high-quality, versatile relay solution for demanding signal or low-power switching in applications ranging from industrial automation to high-performance consumer or medical equipment. It ensures both electrical performance and environmental responsibility, making it an excellent choice for new designs and equipment upgrades.
