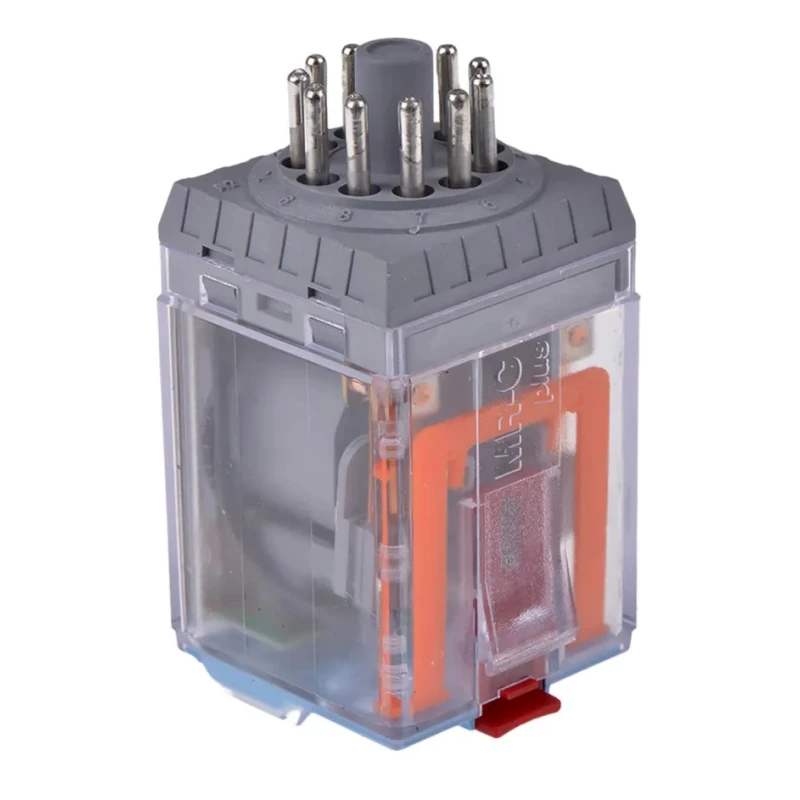

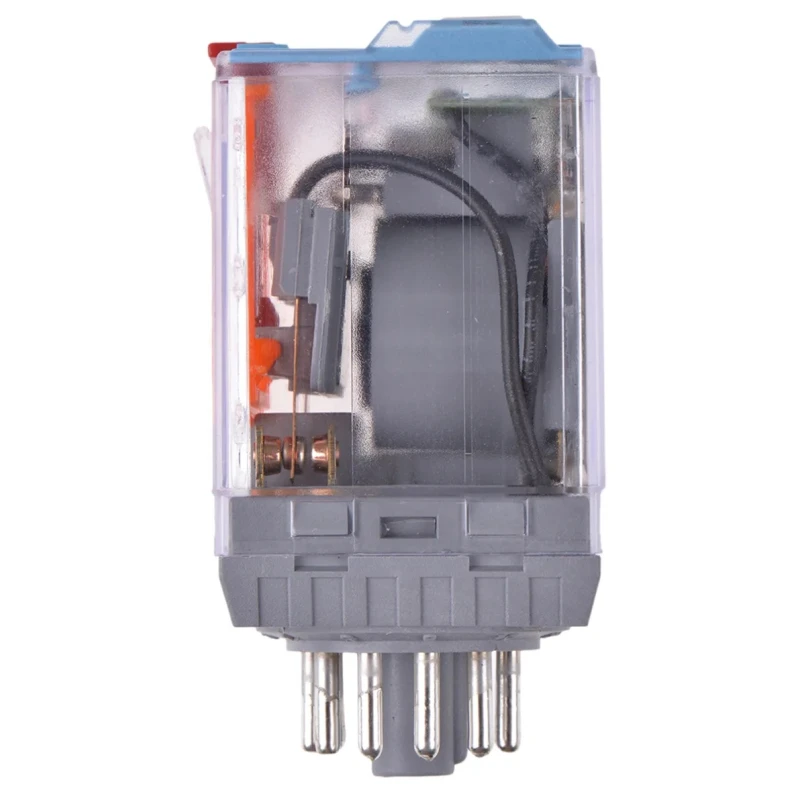

Releco PCB Power Relay 24V AC Coil 30A DPDT C3-R20 / AC 24 V

The Releco C3-R20 / AC 24 V PCB Power Relay is a high-performance industrial switching device specifically engineered for demanding electrical and automation applications. Designed with a 24V AC coil, it provides reliable control and actuation of circuits in control panels, machinery, and automated systems. This relay's robust design, including a generous 30A switching current capability, offers dependable operation even in environments with higher loads and frequent cycling.

Utilizing a double pole double throw (DPDT) contact configuration, the relay delivers flexibility in switching two independent circuits or reversing connections. The through-hole mounting terminal type ensures a secure connection onto printed circuit boards, suitable for both prototype and mass production setups. Measuring just 35mm in length and 66mm in height, the relay's compact form allows for installation where space is at a premium without compromising on electrical performance.

Engineered to perform across a broad temperature spectrum from minus 40°C up to 60°C, the relay is ideal for operation in a variety of environmental conditions, from cold storage facilities to electrically heated enclosures. Its contacts are manufactured from silver alloy, providing high electrical conductivity, reduced contact resistance, and extended lifespan during frequent actuation cycles.

Safety and user convenience are prioritized, as evidenced by the dual-function colour-coded test button - allowing either momentary testing or latching for maintenance purposes - and a mechanical flag indicator that provides clear, visual relay state identification. Rapid switching is assisted by the coil's efficient 1.5W power consumption, minimized coil resistance at 75Ω, and low-noise actuation.

The relay is rated for up to 240V AC switching and is fully compliant with recognized international safety and quality standards, including CSA, RoHS, IEC, EN, and UL certifications. This assures long-term reliability in industrial automation, process control, manufacturing equipment, HVAC panels, and electrical distribution boards.

The Releco C3-R20 / AC 24 V PCB Power Relay is an ideal choice for industrial engineers, panel builders, electrical system integrators, and OEMs looking for a reliable, high-capacity relay solution with proven engineering standards and robust construction.
