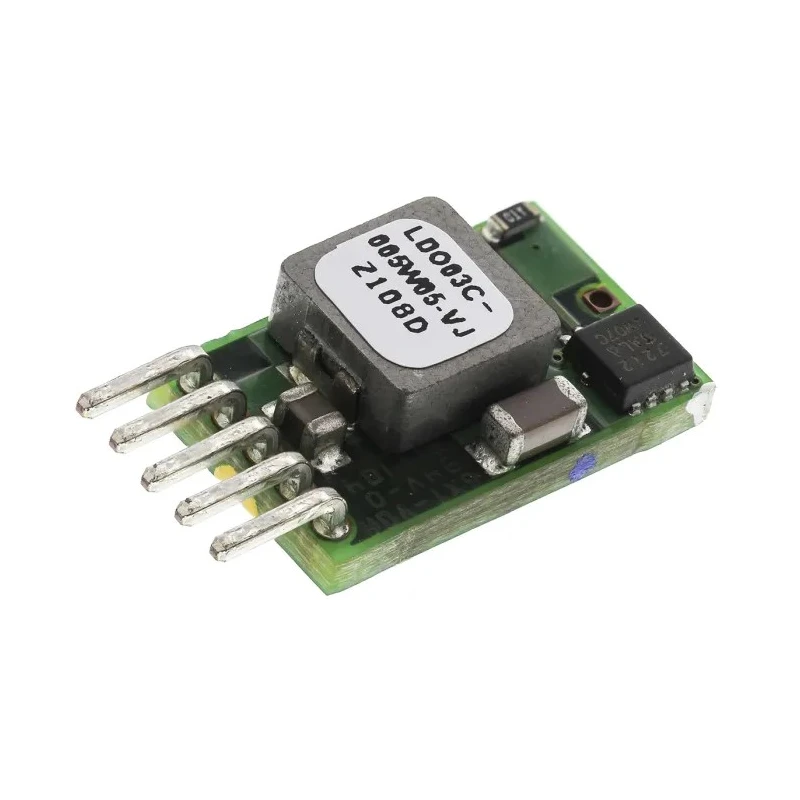

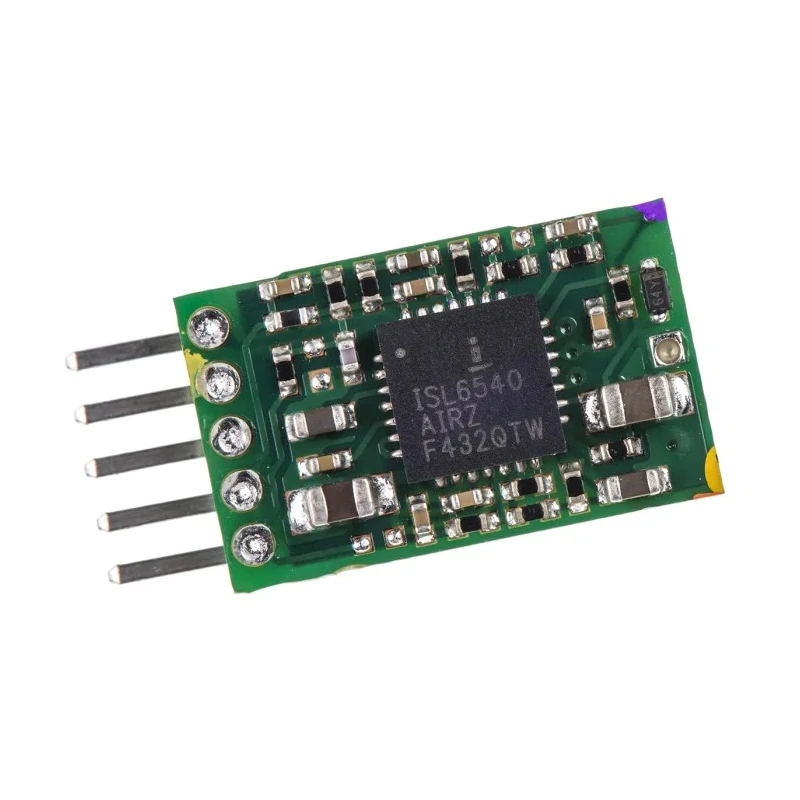

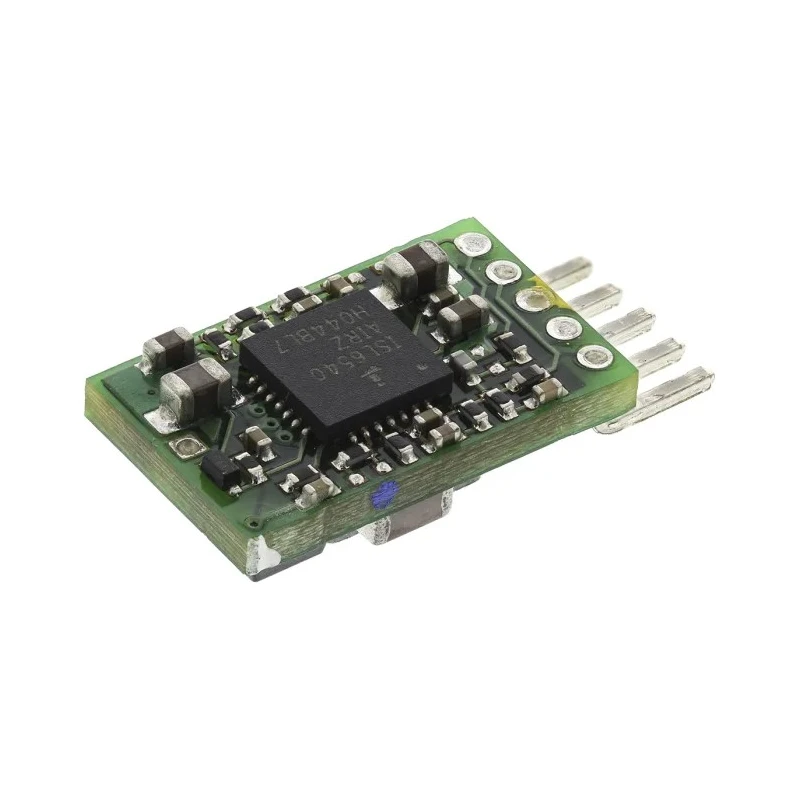

Artesyn / Advanced Energy DC/DC Converter , 0.59V, 5.1V DC Output, 3A, 13.8V Input, Through Hole, 70°C Max Temp LDO03C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Artesyn / Advanced Energy |
| Efficiency | 0.9% |
| Length | 9.4mm |
| Model | LDO03C |
| Depth | 15.49mm |
| Gross Weight | 1.7g |
| Width | 5.37mm |
| Mount Type | Through Hole |
| Series | LDO03C |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| MTBF | 10000000h |
| Number of outputs | 1 |
| Ripple and Noise | 25mV |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 13.8V |
| Standards/Approvals | UL/cUL 60950 |
| Minimum Input Voltage | 3V |
| Output Voltage 1 | 0.59, 5.1V dc |
| Output Current 1 | 3A |
| Output Voltage Adjustment Range | 0.59/5.1 V dc |
Key Features
- Non-isolated DC/DC converter for high-density power supply requirements.
- Provides dual output voltages of 0.59V and 5.1V DC and 3A output current.
- Wide 3V to 13.8V input voltage range enables flexible integration.
- Through-hole vertical mounting for robust PCB installation.
- Short circuit and over-voltage protection enhances device safety.
- Precise ripple and noise specification improves power quality.
- Adjustable output voltage via external resistors for application tuning.
- Operating temperature up to 70°C supports industrial environments.
Product Description
The Artesyn / Advanced Energy LDO03C-005W05-VJ is a versatile single-output DC/DC Converter designed for regulated, non-isolated power management across a wide range of electronic, laboratory, and industrial applications. With dual output voltages of 0.59V and 5.1V DC and a maximum output current of 3A, this converter supports high-density circuit requirements and demanding loads.
Featuring a broad input voltage range from 3V up to 13.8V DC, the LDO03C-005W05-VJ is ideal for systems where flexible power integration is critical. The vertical through-hole mounting design ensures a solid mechanical connection and simple integration into PCBs for manufacturing and prototyping use.
This converter offers power enable functionality, over-voltage and short-circuit protection, and an adjustable output voltage using external resistors to optimize performance for specific tasks. Its ripple and noise rating of 25mV ensures stable operation with sensitive electronics, and an efficiency rating of 0.9% supports low-power loss and heat generation.

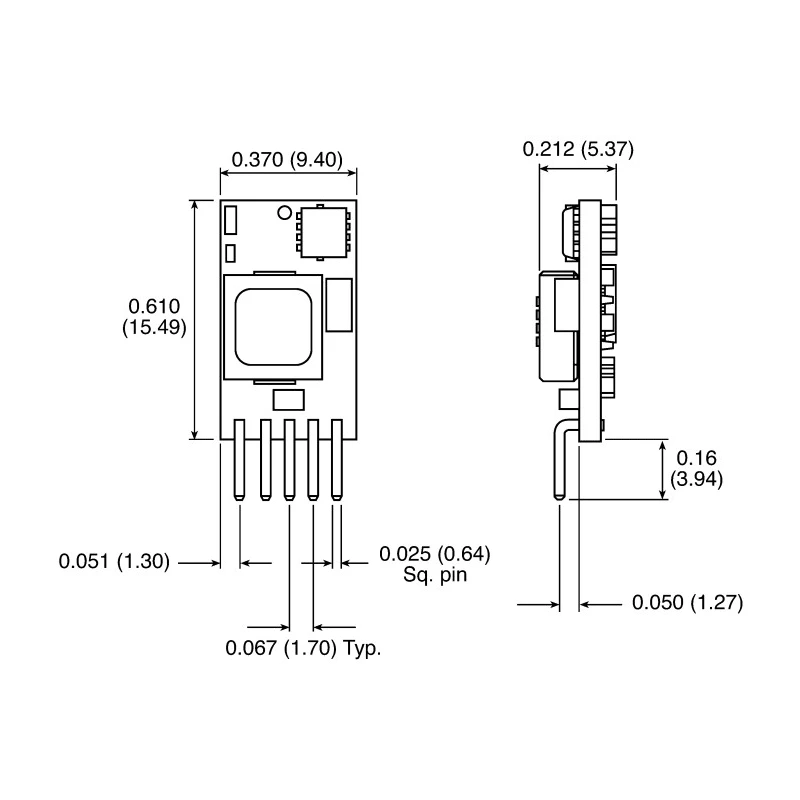

Industrial or laboratory users will appreciate the high MTBF value (10,000,000 hours), confirming extended reliability in mission-critical environments. The device can perform safely in temperature conditions from 0°C up to 70°C, making it suitable for harsh, continuous-duty applications. The compact product dimensions facilitate installation even on space-restricted boards: 9.4mm length, 5.37mm width, and 15.49mm depth, with a weight of only 1.7g.
Common use cases include embedded systems, test benches, industrial controls, laboratory power distribution, and high-reliability electronics. The converter meets UL/cUL 60950 standards for safety and is certified globally for professional applications.
This regulated DC/DC converter is a proven choice for engineers and manufacturers requiring industrial-grade power conversion. Explore more DC-DC Converters from Artesyn / Advanced Energy and related categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 3V to 13.8V DC, allowing for flexible integration into various systems.
This converter provides dual output voltages of 0.59V and 5.1V DC.
The maximum output current for this unit is 3A, suitable for high-density circuit requirements.
The efficiency rating of this DC/DC converter is 0.9%, which supports low power loss and heat generation.
The ripple and noise rating is 25mV, ensuring stable operation with sensitive electronics.
The dimensions of this model are 9.4mm in length, 5.37mm in width, and 15.49mm in depth, with a weight of 1.7g.
This unit features a through-hole vertical mounting design for robust PCB installation.
The maximum operating temperature for this converter is 70°C, making it suitable for industrial environments.
The Artesyn LDO03C-005W05-VJ meets UL/cUL 60950 standards for safety, ensuring compliance for professional applications.
Yes, the output voltage can be adjusted using external resistors to optimize performance for specific applications.
This converter has a mean time between failures (MTBF) of 10,000,000 hours, indicating extended reliability in critical applications.
This model is suitable for embedded systems, test benches, industrial controls, laboratory power distribution, and high-reliability electronics.
