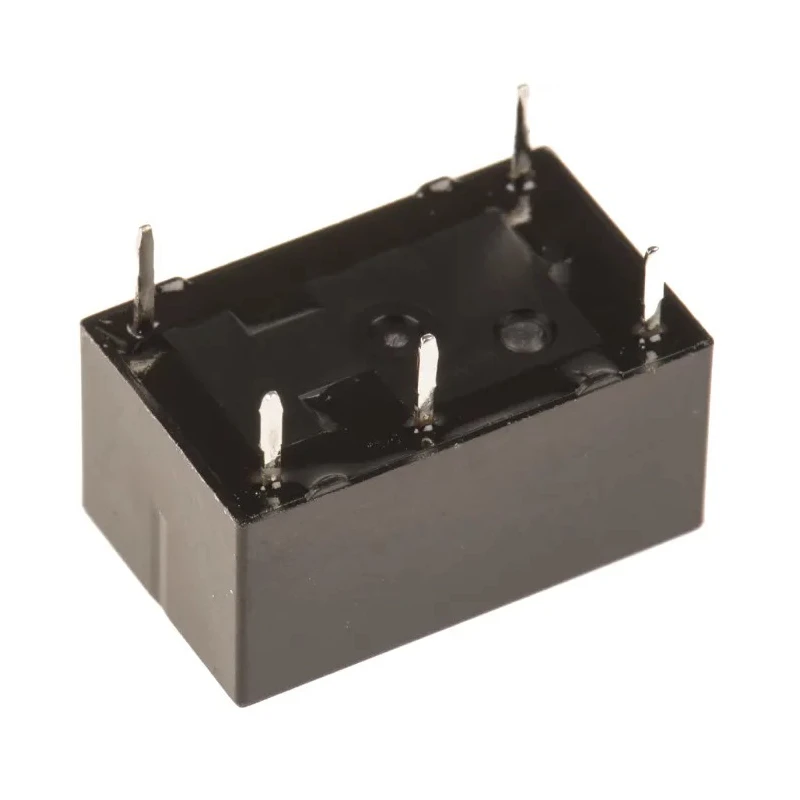

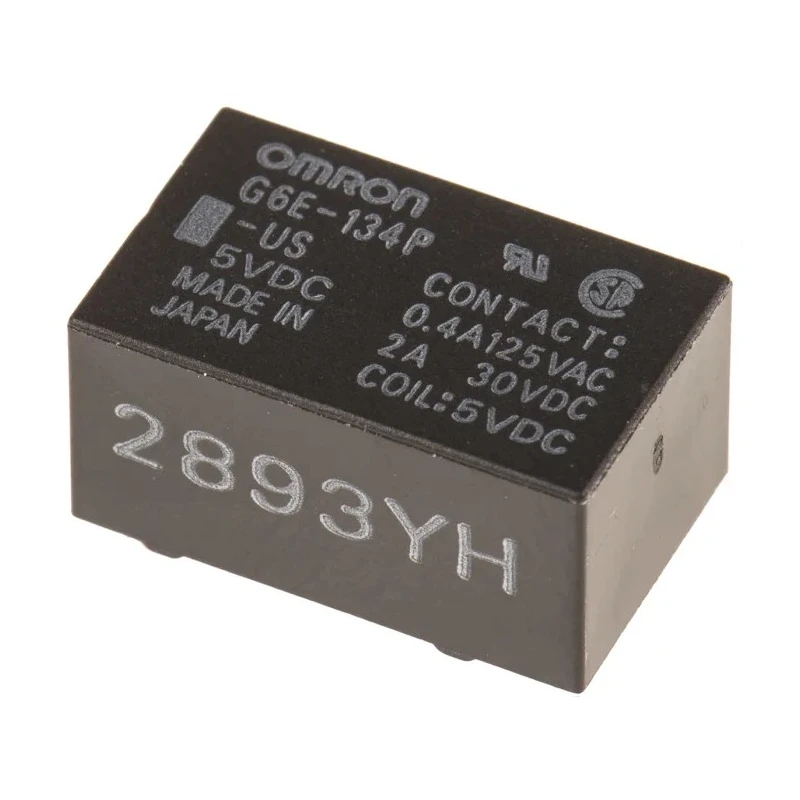

Omron PCB Power Relay, 5V DC Coil, 3A SPDT, Through Hole, Gold Plated Contacts, G6E-134P-US DC5

The Omron G6E-134P-US DC5 PCB power relay combines compact size, robust switching capability, and reliable construction to fulfill a wide variety of signal and low-power switching applications on printed circuit boards. Designed around a 5V DC coil, this relay provides efficient, low-voltage control ideal for interfaces driven by logic-level signals and microcontrollers.

This relay features a 3A maximum switching current and a single-pole double-throw (SPDT) contact configuration, delivering flexibility for switching circuits that require either normally open or normally closed functionality. The contacts are gold plated, ensuring superior conductivity and resistance to oxidation, which translates into a long operating life and reliable switching even at low currents or voltages.

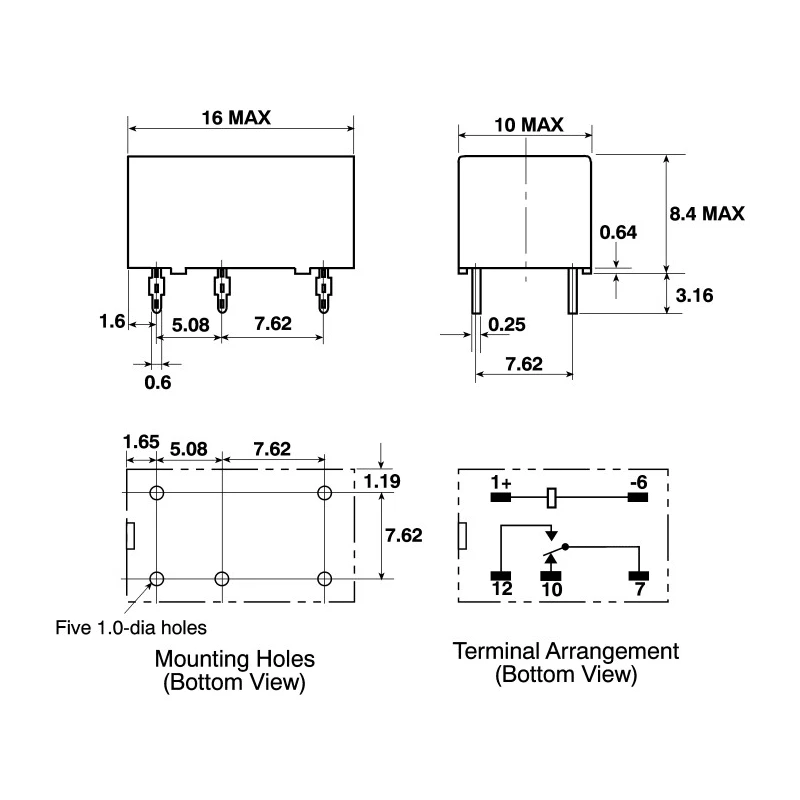

Built for through-hole PCB mounting, the G6E-134P-US DC5 is compact, measuring only 16mm in length, 10mm in width, and 8mm in height. Its fully sealed construction supports immersion cleaning after PCB assembly, making it suitable for automated manufacturing environments where component cleanliness is crucial. The relay is engineered for high sensitivity and stable operation, with a coil resistance of 125 ohms, minimizing power consumption during activation.

This relay boasts a wide operational temperature range, from -40°C up to +70°C, enabling reliable performance in both harsh industrial and demanding commercial settings. Its impulse withstand voltage meets FCC Part 68 requirements, furthering its suitability for telecommunication and control equipment.

Omron’s G6E series is known for stringent quality and globally recognized approvals, including RoHS compliance, as well as UL and CSA certifications (refer to datasheet for exact statuses). Applications range from industrial automation and instrumentation, to telecommunications, consumer electronics, and general-purpose electronic switching. The robust design, high switching reliability, and ease of PCB integration make this power relay ideal for engineers designing reliable circuits where compactness and performance are required.

Typical use cases include use in industrial control panels, signaling devices, test and measurement boards, as well as commercial and laboratory electronics where dependable low-power switching is needed. The inclusion of gold-plated contacts, immersion cleaning compatibility, and wide temperature tolerance ensure this relay meets professional standards for industrial, laboratory, automation, and commercial applications.
