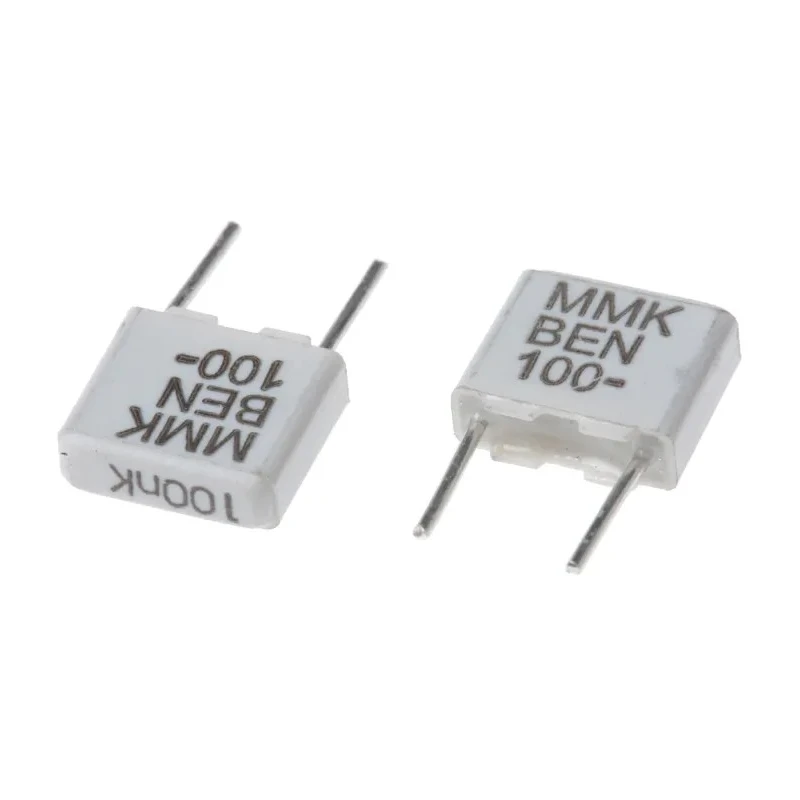

KEMET MMK Film Capacitor 100 nF, ±10%, 100 V DC 40 V AC Through Hole MMK5104K100J01L4BULK

Free Delivery in India | Lowest Global Shipping Charges

KEMET MMK Film Capacitor 100 nF, ±10%, 100 V DC 40 V AC Through Hole MMK5104K100J01L4BULK

Name: KEMET MMK Film Capacitor 100 nF, ±10%, 100 V DC 40 V AC Through Hole MMK5104K100J01L4BULK
Brand: KEMET
SKU: 85267



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Indonesia
Brand	KEMET
Height	6.5mm
Length	7.2mm
Model	MMK5104K100J01L4BULK
Packaging	Bag
Width	2.5mm
Mount Type	Through Hole
Series	MMK
Maximum Operating Temperature	100°C
Tolerance	±10 %
Electrode	Vacuum evaporated aluminium
Capacitance	100nF
Minimum Operating Temperature	-55°C
Terminal type	Wire
Lead Length	20mm
Standards/Approvals	IEC 60384-2, DIN 44122
Pin Count	2
Rated AC Voltage	40V ac
Rated DC Voltage	100V dc
Lead Pitch	5mm
Lead Diameter	0.5mm

Key Features

Capacitance value is 100 nF with a tolerance of ±10% for precise circuit performance.
Features through hole mounting and wire terminals for secure PCB integration.
Compact dimensions make it suitable for space-constrained designs.
Operates within a wide temperature range from -55°C to +100°C.
Metallized polyester film construction for reliable electrical properties.
Encapsulated in self-extinguishing, UL 94V-0 compliant material for safety.

Product Description

The KEMET MMK5104K100J01L4BULK film capacitor is an industrial-grade, general-purpose component designed to deliver high reliability and longevity in a variety of electronic circuits. With a capacitance of 100 nF and a tolerance of ±10%, this capacitor ensures precise functionality in signal coupling, bypassing, and other critical filtering applications. Its 100 V DC and 40 V AC voltage ratings enable use in devices powered by different supply standards, expanding its versatility for engineers and designers.

This capacitor utilizes metallized polyester film technology, providing stable electrical properties and minimizing signal loss. The through hole design, featuring wire terminals, supports robust installation onto printed circuit boards (PCBs), ensuring solid mechanical and electrical connections even in environments subject to vibration.

Dimensions of 7.2 mm in length, 2.5 mm in width, and 6.5 mm in height allow for easy integration into space-limited assemblies. The standard 5 mm lead pitch and 20 mm lead length facilitate compatibility with automatic insertion equipment and streamline production efficiency. With a lead diameter of 0.5 mm and a pin count of 2, the part is straightforward to mount and solder.

Reliability is enhanced by encapsulation in a self-extinguishing material compliant with UL 94V-0, providing superior safety and meeting international standards IEC 60384-2 and DIN 44122. The vacuum-evaporated aluminium electrodes further ensure consistent operation and low loss across the specified operating temperature range of -55°C to +100°C.

Industrial uses include general electronic equipment, bypassing, signal coupling, and high-reliability circuit assemblies in industrial, automotive, and control applications. This unit is supplied in bag packaging and is suitable for both prototyping and series production.
