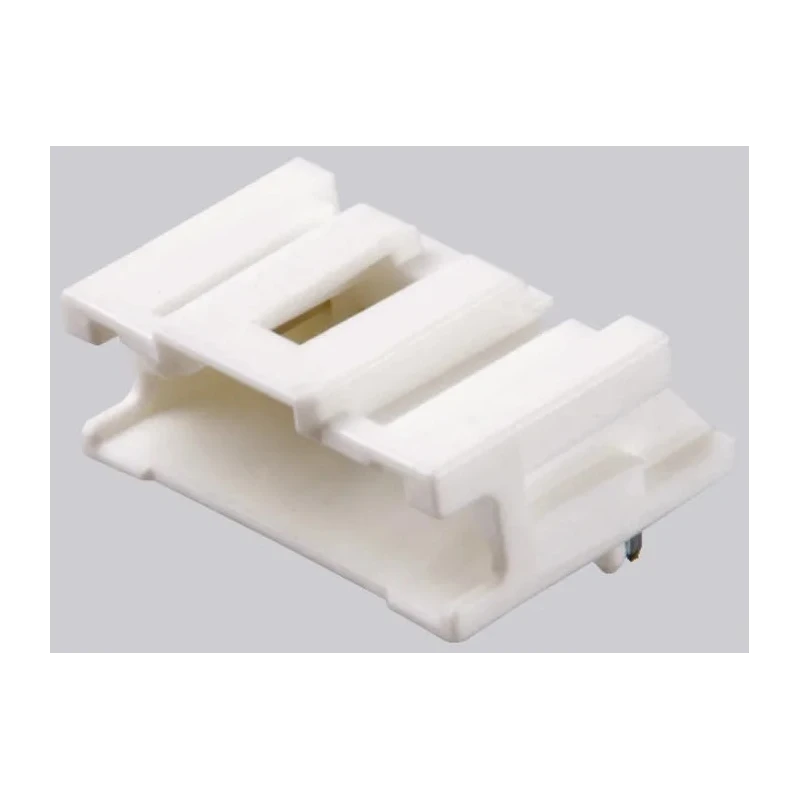

Molex MicroClasp Series Right Angle Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded, 250V, 3A 55935-0310
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Tin |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | UL 94V-0 (housing) |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- Features right angle through hole mounting for optimal PCB integration.
- Includes 3 male contacts in a single row configuration.
- 2 mm pitch ensures compatibility with compact board layouts.
- Rated for up to 3 A current and 250 V operation.
- Shrouded housing provides positive latch protection and secure mating.
- Constructed with tin-plated contacts for reliable conductivity and durability.
- Operates within a wide temperature range, from -40°C to 105°C.
Product Description
The Molex 55935-0310 PCB Header is a robust right angle, through hole connector specifically from the MicroClasp Series, engineered for demanding wire-to-board applications. This header integrates 3 male contacts in a single row within a shrouded enclosure, providing secure, low-profile connections perfectly suited for modern, compact electronic devices.
Designed with a 2 mm contact pitch, this header allows for efficient board space utilization and is compatible with high-density surface configurations. The through hole mounting not only ensures stable mechanical retention but also simplifies automated assembly processes for volume production.
Constructed from high-quality tin-plated materials, the contacts offer improved wear resistance and significant conductivity over extended use. The inner positive lock and housing lance system further enhance latch protection, providing secure mating, audible click feedback, and ease of assembly or disconnection without compromising terminal integrity.
This PCB header is rated for up to 3 amperes of current and can withstand a maximum operating voltage of 250 V. Its operational temperature range from -40°C to 105°C makes it suitable for applications subjected to extreme environmental conditions, such as industrial or automotive electronics, laboratory instrumentation, and high-performance computing modules.
The combination of a low insertion force terminal design, two-point contact geometry, and shrouded housing achieves reliable, high-quality connections while ensuring compatibility with established wire-to-board systems. The termination is optimized for soldered connections to PCB pads for long-lasting electrical and mechanical performance.
This type of header finds extensive use in industrial control equipment, commercial and household appliances, communications infrastructure, and process automation controls where reliable, high-density interboard connections are required.
Explore the full range of Molex MicroClasp PCB Headers, including variations in contact count, orientation, or mounting style, in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for up to 3 A of current and can withstand a maximum operating voltage of 250 V.
The contact pitch of this model is 2 mm, which ensures compatibility with compact board layouts.
It features 3 male contacts arranged in a single row configuration.
This model utilizes through hole mounting, providing stable mechanical retention and simplifying automated assembly processes.
It operates within a temperature range from -40°C to 105°C, making it suitable for extreme environmental conditions.
The contacts are constructed from tin-plated materials, which improve wear resistance and conductivity.
The termination type is optimized for soldered connections to PCB pads, ensuring long-lasting electrical and mechanical performance.
This model has a right angle orientation, which is designed for optimal PCB integration.
Yes, it complies with UL 94V-0 standards for the housing material.
It utilizes a wire-to-board connector system, suitable for various electronic applications.
The shrouded housing provides positive latch protection, ensuring secure mating and ease of assembly or disconnection.
