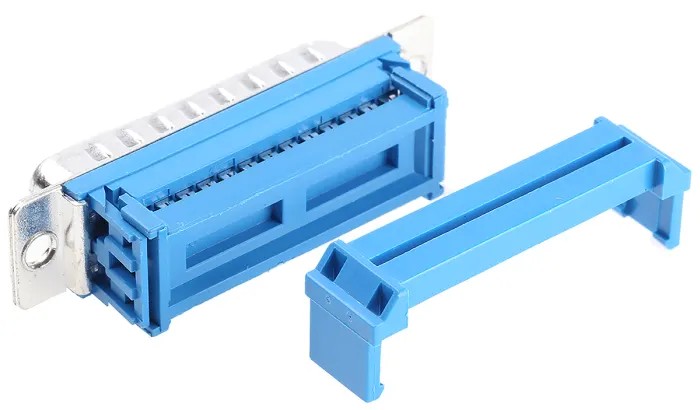

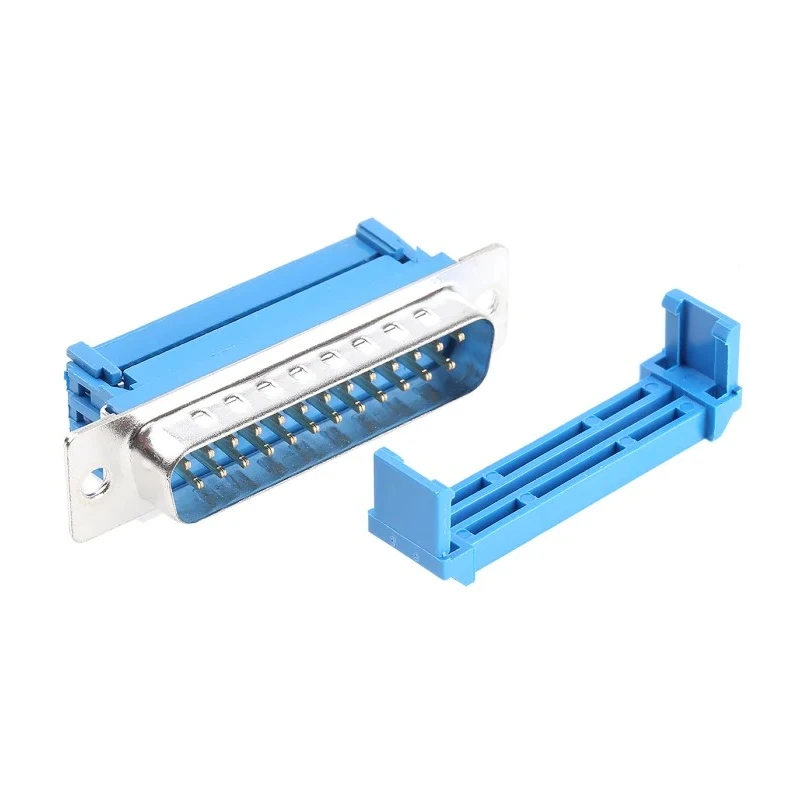

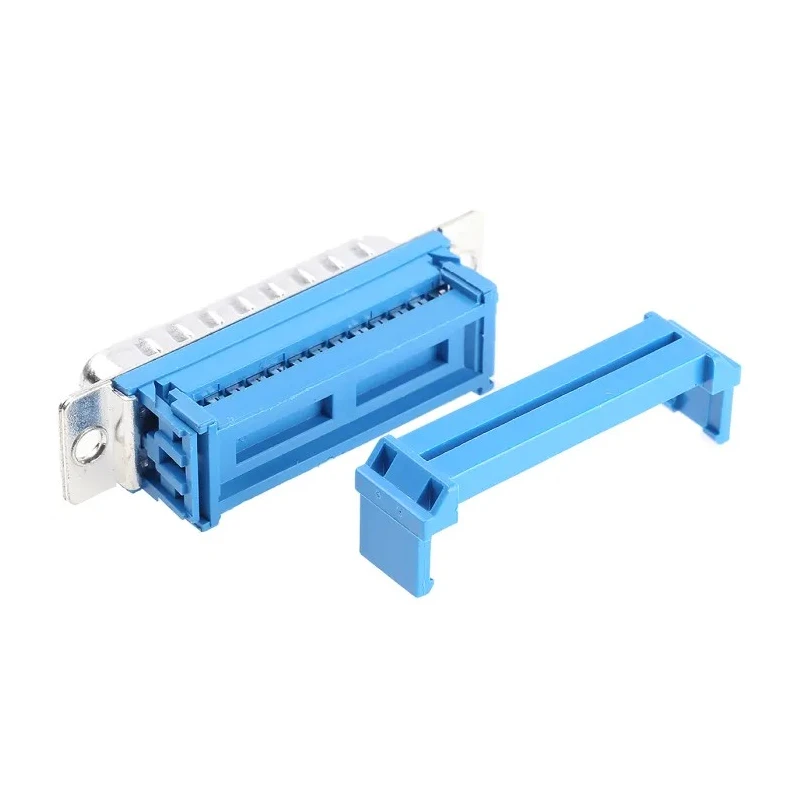

RS PRO 25 Way Straight Cable Mount D-Sub Connector Male, 1.27 mm Pitch, Steel Housing, 1A, 250V 136-471
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1A |
| Model | 136-471 |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.27mm |
| Contact Plating | Tin |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| RS PRO 25 Way Straight 1.27 mm Pitch Cable D-Sub Connector MaleBrand | RS PRO |
| 25 Way IDC D-sub Connector, Plug, PET ShellBrand | NEUTRAL |
Key Features
- Provides 25 contacts for reliable signal and power transmission.
- Features a straight orientation and cable mounting for easy installation.
- Steel housing offers enhanced durability and mechanical strength.
- Rated for a maximum current of 1A and voltage up to 250V.
- IDC termination allows fast and efficient wiring.
- Copper alloy contacts ensure high conductivity and heat resistance.
- Contacts plated with tin to resist corrosion and rust.
- Operating temperature range from -55°C to 105°C.
Product Description
RS PRO 136-471 is a 25-way straight cable mount D-Sub connector, designed for robust and reliable connections in electronics, industrial automation, and computing equipment. With a 1.27 mm pitch, this male connector is suitable for applications requiring high-density contact layouts and dependable performance in signal or low-power lines.
Constructed from steel, the housing delivers strong mechanical integrity, preventing damage under stress and repeated usage. The copper alloy contacts provide high electrical conductivity and are plated with tin for optimal corrosion protection. This combination ensures consistent current flow and minimal maintenance over time.
The connector supports a maximum current rating of 1A and voltage up to 250V, making it ideal for a range of instrumentation, control devices, and communications systems. The IDC (insulation displacement connector) termination streamlines installation, allowing quick, tool-free wiring without soldering. The straight orientation and cable mounting type facilitate easy integration into harness assemblies or PCB interfaces.
Engineered for reliability, the RS PRO 136-471 operates across a temperature range of -55°C to 105°C, accommodating both demanding industrial and laboratory environments. Its male D-Sub design follows universal connector standards for compatibility with a broad array of sockets and device housings.
Applications include data transmission, signal interface wiring, machine controls, laboratory instrumentation setups, and commercial electronic assemblies. The connector's compact pitch (1.27 mm) ensures efficient use of board/cable space, particularly valuable in densely packed systems.
Key features such as steel housing, tin-plated copper alloy contacts, and cable-mount male configuration promote long-term operational stability. Use RS PRO series D-sub connectors when you need a reliable, high-density solution for electronic connectivity.
Explore more D-Sub Connectors in the Electronics & Electricals category from the RS PRO brand on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 1A and a voltage of up to 250V.
This model features a contact pitch of 1.27 mm, suitable for high-density layouts.
The housing is made of steel, while the contacts are made from copper alloy and are tin-plated for corrosion resistance.
It operates within a temperature range of -55°C to 105°C, making it suitable for various environments.
This connector uses IDC (insulation displacement connector) termination, allowing for quick and efficient wiring without soldering.
It supports cable mounting, facilitating easy integration into harness assemblies or PCB interfaces.
This model has 25 contacts, providing reliable signal and power transmission.
The connector has a straight orientation, which aids in installation and integration.
It is suitable for applications including data transmission, signal interface wiring, machine controls, and laboratory instrumentation setups.
This connector features male contacts, designed to fit into corresponding female sockets.
The country of origin for this connector is China.
This is a D-Sub connector, specifically a 25-way male connector designed for reliable connections in electronic applications.
