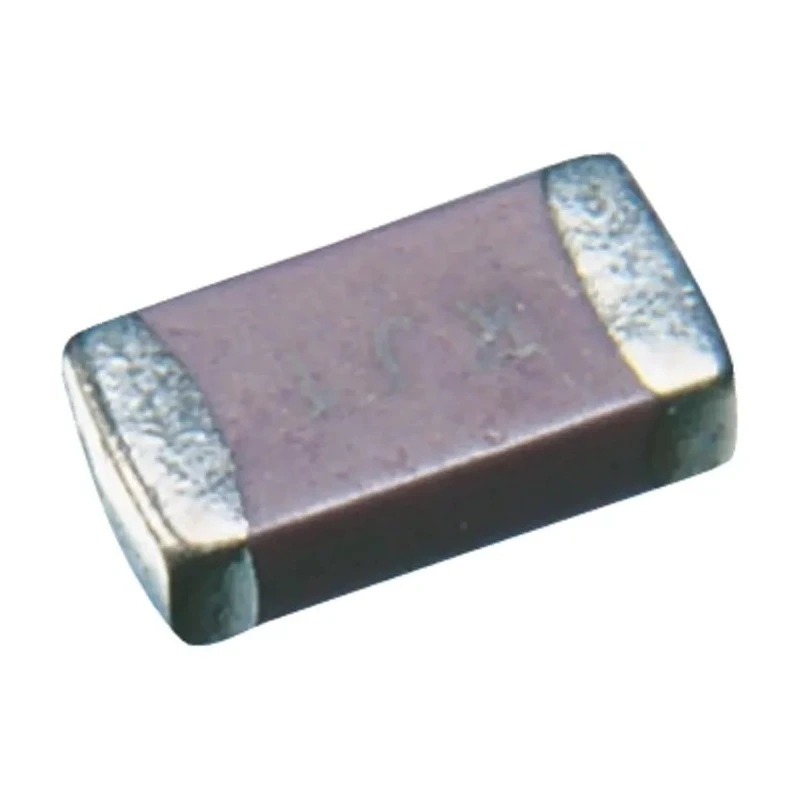

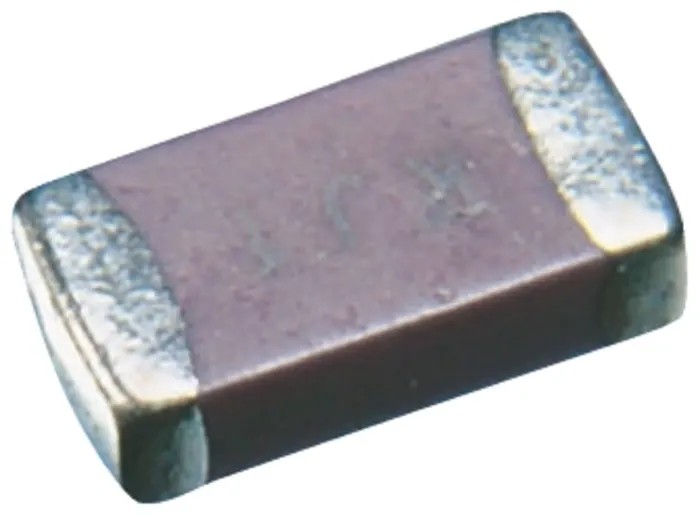

Vishay Multilayer Ceramic Capacitor 100pF, 1kV DC, ±5% Tolerance, C0G Dielectric Surface Mount 1812 VJ1812A101JXGAT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV dc |
| Brand | Vishay |
| Height | 2.18mm |
| Length | 4.5mm |
| Model | VJ1812A101JXGAT |
| Packaging | 7 in Reel/Paper Tape |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | VJ |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 150°C |
| Tolerance | ±5 % |
| Capacitance | 100pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, JEDEC JS709A, IEC 61249-2-21 |
| Package/Case | 1812 |
| Dielectric | C0G |
Key Features
- Offers high voltage capability with 1kV DC rating for demanding circuit applications.
- Compact 1812 package with surface mount design for automated PCB assembly.
- C0G (NP0) dielectric ensures ultra-stable capacitance and low dissipation factor.
- ±5% tolerance provides precision and reliability for critical electronic circuitry.
- Operating temperature range from -55°C to 150°C accommodates various environments.
- RoHS, JEDEC JS709A, and IEC 61249-2-21 standards compliance enhances suitability for industrial use.
- Reliable noble metal electrode (NME) system for long-term performance.
- Ideal for timing, tuning, decoupling, filtering, and surge suppression applications.
Product Description
The Vishay VJ1812A101JXGAT is a high-quality multilayer ceramic chip capacitor designed for surface mount installation in demanding electronic circuits. It features a capacitance value of 100pF and a maximum voltage rating of 1kV DC, making it suitable for timing, tuning, decoupling, filtering, and surge suppression applications across a wide range of industrial and commercial environments.
This capacitor uses a C0G (NP0) dielectric, known for its ultra-stable performance, very low temperature coefficient of capacitance, and minimal dissipation factor. These characteristics ensure reliable operation, ideal for precision sensor, scanner, and high-voltage circuitry where stability is critical. The ±5% tolerance allows for accurate circuit performance and greater confidence in end-product reliability.
The surface mount termination design (1812 package) supports automated production processes, with compact dimensions of 4.5mm length, 3.2mm width, and 2.18mm height. The device's operational temperature range covers -55°C to 150°C, ensuring its suitability for harsh environments encountered in industrial, laboratory, and commercial applications.
Reliability is further assured by the use of a noble metal electrode (NME) system, combined with compliance to RoHS, JEDEC JS709A, and IEC 61249-2-21 standards. This ensures safety and long-term performance in demanding scenarios.
Application areas include timing and tuning circuits, sensor and scanner electronics, decoupling and filtering in signal paths, surge suppression, and high-voltage use cases. The VJ commercial series provides reliability for industrial, laboratory, and manufacturing settings.
Offers high voltage capability with 1kV DC rating for demanding circuit applications. Compact 1812 package with surface mount design for automated PCB assembly. C0G (NP0) dielectric ensures ultra-stable capacitance and low dissipation factor.
±5% tolerance provides precision and reliability for critical electronic circuitry. Operating temperature range from -55°C to 150°C accommodates various environments. RoHS, JEDEC JS709A, and IEC 61249-2-21 standards compliance enhances suitability for industrial use.
Reliable noble metal electrode (NME) system for long-term performance. Ideal for timing, tuning, decoupling, filtering, and surge suppression applications. Explore more Vishay capacitors and passive components for advanced industrial electronics at EnvMart.
Explore more products in our Multilayer Ceramic Capacitor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100pF.
It has a maximum voltage rating of 1kV DC.
This capacitor has a tolerance of ±5%.
The operating temperature range is from -55°C to 150°C.
It uses a C0G (NP0) dielectric, which ensures ultra-stable capacitance and low dissipation factor.
The dimensions of the 1812 package are 4.5mm in length, 3.2mm in width, and 2.18mm in height.
This model features a surface mount design.
It complies with RoHS, JEDEC JS709A, and IEC 61249-2-21 standards.
It is suitable for timing, tuning, decoupling, filtering, and surge suppression applications.
This capacitor is packaged in a reel/paper tape format, with 7 units per reel.
The country of origin for this capacitor is India.
It utilizes a reliable noble metal electrode (NME) system for long-term performance.
