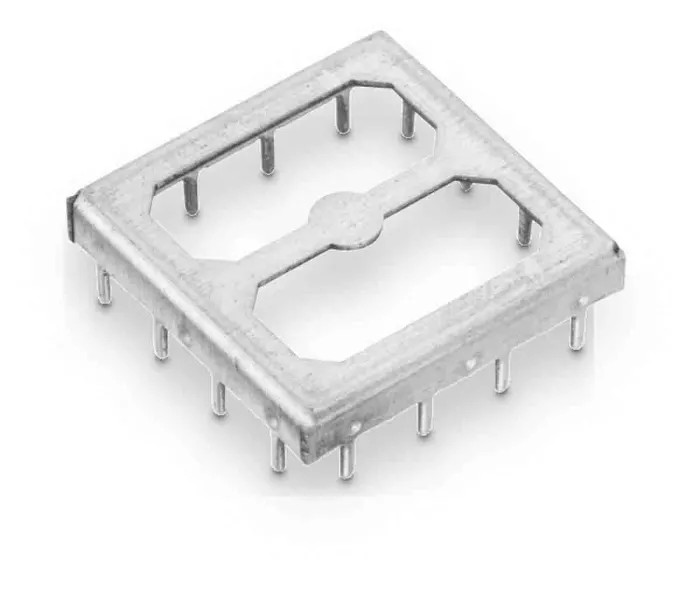

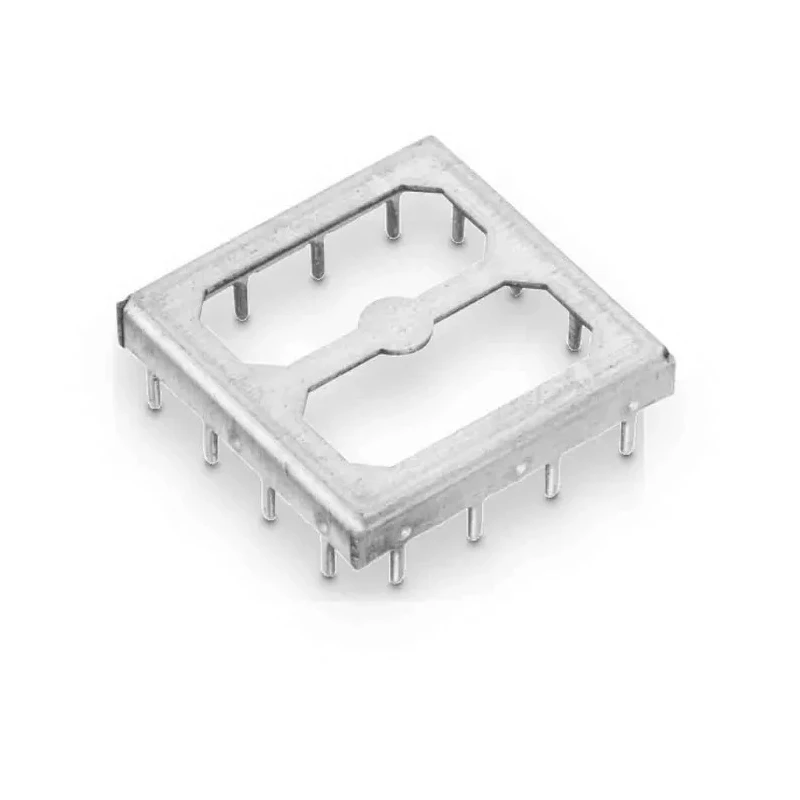

Wurth Elektronik WE-SHC Tin Plated Steel Shielding Enclosure, 3mm Internal Height, 20mm × 20mm, Model 36503205S
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Body Material | Tin Plated Steel |
| Model | 36503205S |
| Series | WE-SHC |
| Internal Width | 20mm |
| Internal Height | 3mm |
| Shielding | Shielded |
| Standards/Approvals | REACH, RoHS |
| Internal Length | 20mm |
Key Features
- Constructed from durable tin plated steel for enhanced EMI protection.
- Internal dimensions measure 20mm by 20mm with an internal height of 3mm.
- Suitable for through-hole (THT) mounting on PCBs.
- Efficiently shields RF input, output, and amplifier stages to minimize interference.
- Designed for reliable operation within temperature range of -40°C to +125°C.
- Compliant with REACH and RoHS standards for environmental safety.
- Packaged in tape and reel format for automated soldering processes.
- Ideal for high-sensitivity applications including communications and signal processing electronics.
Product Description
The Wurth Elektronik WE-SHC Tin Plated Steel Shielding Enclosure, model 36503205S, is a precision-engineered EMI shield designed for PCB assemblies requiring robust protection against electromagnetic interference. It features a tin plated steel construction, offering strong durability and efficient shielding capabilities while maintaining compact internal dimensions of 20mm × 20mm with a 3mm internal height.
This enclosure is specially suited for through-hole (THT) frame mounting. Its grid frame design is optimized for easy installation and secure fit on printed circuit boards. By encasing critical RF input, output, and amplifier stages, it ensures reduced susceptibility to environmental noise and radio frequency interference, supporting reliable operation in sensitive electronic applications.
The enclosure is packaged in tape and reel format, making it compatible with automated pick and place soldering lines. Its wide operating temperature range of -40°C up to +125°C enables use in demanding environments including industrial, telecommunications, and laboratory electronics. The tin plated steel body maximizes corrosion resistance and signal isolation, making it a preferred choice for designers and engineers building high-performance circuits.
Adherence to REACH and RoHS environmental standards ensures compliance with industry regulations, promoting safe application in commercial and industrial installations. The 36503205S enclosure series is part of the WE-SHC family from Wurth Elektronik, recognized for its quality and reliability in PCB shielding solutions.
Typical use cases include PCB assemblies in communication devices, RF modules, laboratory instrumentation, industrial automation, and signal processing electronics where stringent EMI protection is necessary. Its compact form factor makes it ideal for densely populated boards and sensitive analog or digital circuits.
For broader selection, similar models are available for varied PCB layout requirements. Browse EnvMart's 'Electrical Enclosures' category for additional shielding solutions from Wurth Elektronik and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The internal dimensions of this model are 20mm in width, 20mm in length, and 3mm in height.
It is constructed from tin plated steel, which provides enhanced durability and EMI protection.
This enclosure operates reliably within a temperature range of -40°C to +125°C.
Yes, it is compliant with REACH and RoHS standards, ensuring environmental safety.
It is packaged in tape and reel format, making it suitable for automated soldering processes.
This model supports through-hole (THT) mounting on printed circuit boards.
It is ideal for high-sensitivity applications including communications, RF modules, and signal processing electronics.
This enclosure provides effective shielding against electromagnetic interference (EMI) and radio frequency interference (RFI).
The external dimensions are not provided; however, the internal dimensions are 20mm x 20mm with a height of 3mm.
This enclosure is part of the WE-SHC series from Wurth Elektronik.
The country of origin for this model is China.
Yes, there are similar models available that cater to varied PCB layout requirements.
