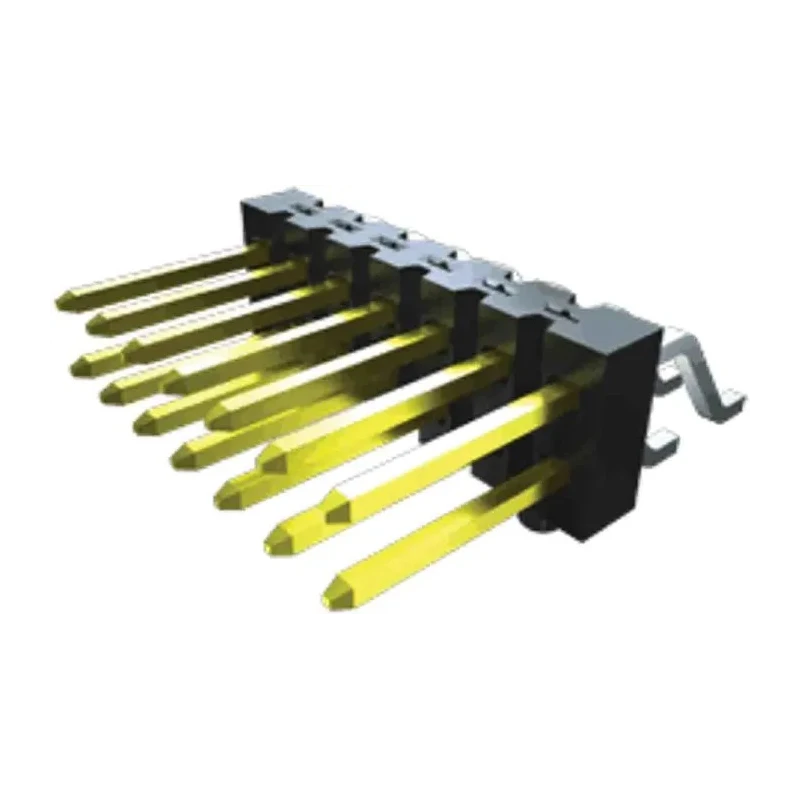

Samtec TSM Series Vertical Surface Pin Header, 6 Contacts, 2.54 mm Pitch, 2 Rows, Unshrouded, 5.4A, 475V, TSM-103-03-L-DV-A

The Samtec TSM-103-03-L-DV-A is a high-quality vertical surface mount pin header engineered for reliable board-to-board connections in PCB designs. This component features 6 contacts arranged in 2 rows with a standard pitch of 2.54 mm, offering straightforward compatibility with a wide range of applications.

The pin header utilizes a robust construction, combining phosphor bronze contacts plated with gold for excellent electrical conductivity and corrosion resistance, ensuring a stable connection under varying environmental conditions. The housing is constructed from black liquid crystal polymer, providing mechanical strength and maintaining dimensional stability throughout thermal cycling.

Designed for board-to-board connector systems, this unshrouded pin header is ideal for compact, high-density electronic circuits. It can handle a maximum current of 5.4A and a voltage rating up to 475V, supporting both power and signal transmission lines in advanced circuit layouts. The vertical mount orientation streamlines PCB assembly in industrial, laboratory, and commercial electronics.

With an operating temperature range spanning from -55°C to 125°C, this connector is suitable for demanding environments including industrial automation, telecommunications, instrumentation, and manufacturing controls. It features solder termination for reliable surface mounting, and is RoHS compliant as per technical evidence.

The 2.54 mm pitch ensures standardization across PCB designs, while the male contact gender facilitates straightforward interconnection with female headers or sockets. Applications include embedded systems, signal distribution networks, PCBs for instrumentation, control systems, and general-purpose electronic devices.

Samtec's TSM series is known for its precision and reliability, making the TSM-103-03-L-DV-A an excellent choice for engineers seeking a dependable PCB header for new designs or replacement parts.

Vertical surface mounting simplifies automated PCB assembly processes. Durable materials and gold plating maximize lifespan and connectivity quality. Wide temperature range ensures readiness for industrial and harsh environments.

Supports robust current and voltage requirements for advanced electronics. Solder termination for secure installation on PCB pads and tracks.

This product is commonly used in industrial PCB designs, laboratory measurement equipment, manufacturing control circuitry, communications, and signal distribution systems. Explore more Samtec PCB headers and connectors in the Electronics & Electricals category for expanded design possibilities.
