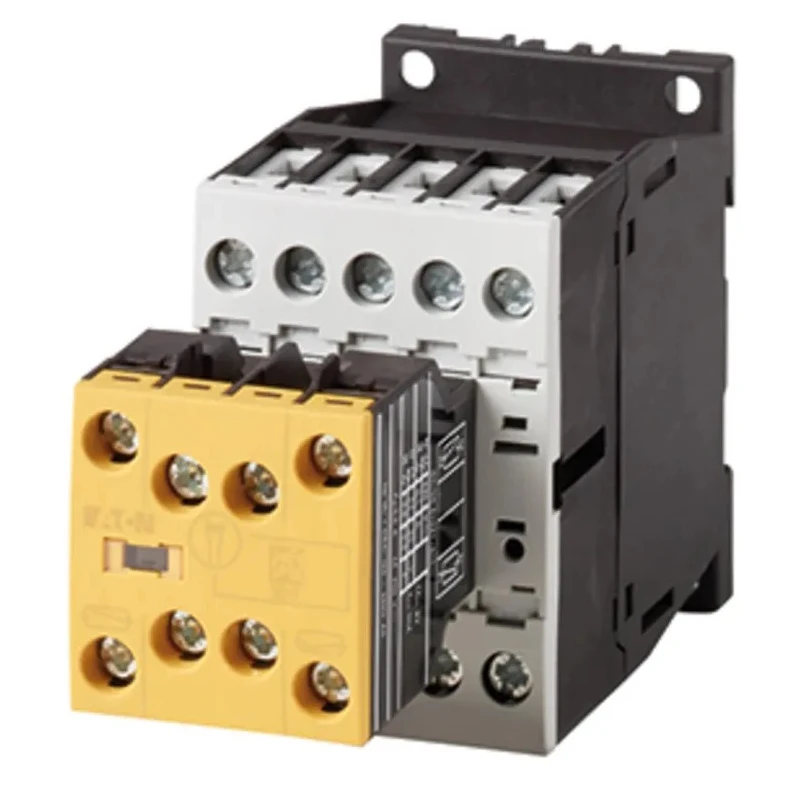

Eaton DILAS Contactor 120V AC Coil 4-Pole 4A 1.4W 415V AC Table Mount 4 NO/4 NC 191700 DILAS-44(110V50HZ,120V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Safety |
| Length | 45mm |
| Model | 191700 DILAS-44(110V50HZ,120V60HZ) |
| Depth | 68mm |
| Width | 117mm |
| Mount Type | Table |
| Series | DILAS |
| Power Rating | 1.4W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 4 |
| Standards/Approvals | CSA, IEC, UL |
| Contact Voltage | 415V ac |
| Coil Voltage | 120V ac |
| Normal State Configuration | 4 NO/4 NC |
| Contact Current | 4A |
| Number of Auxiliary Contacts | 8 |
| Auxiliary Contact Configuration | 4 NO/4 NC |
| Operational Current Ie | 50A |
| Control Circuit Voltage Uc | 230V |
| Contactor Application | Contactor Relay, Safety |
| Eaton DILM Contactor, 110 Coil, 4 A, 230 V, 400 VBrand | Eaton |
Key Features
- Features a 120V AC coil for reliable control operations.
- Four-pole design with 4A contact current, suitable for medium-load switching.
- Provides 4 NO and 4 NC contact configurations for versatile circuit design.
- Operates at 1.4W power rating for energy-efficient performance.
- Supports up to 415V AC contact voltage, ideal for industrial applications.
- Mounts securely to the table, with screw clamp terminals for easy wiring.
- Integrates mirror contacts and interlocked opposing contacts for safer machine control.
- Includes a top-mounted, non-detachable auxiliary contact to enhance monitoring and status indication.
Product Description
The Eaton 191700 DILAS-44(110V50HZ,120V60HZ) Power Contactor is engineered for demanding electrical automation and control applications. This contactor features a robust 120V AC coil with a four-pole configuration, delivering reliable switching for circuits up to 4A and 415V AC. With a compact 1.4W power requirement, it is optimized for energy efficiency without compromising operational capacity.
Designed for versatility, the 4 NO and 4 NC contacts support flexible circuit designs, making it suitable for industrial setups requiring reliable switching and redundancy. The screw clamp terminals allow for strong and secure wiring, and the table mount type ensures easy integration into control panels and machinery.
This contactor incorporates integrated mirror contacts and interlocked opposing contacts, enhancing the safety of machine-control circuits. The built-in inspection window above the switch-position indicator permits real-time monitoring of operational status, preventing accidental manual activations. Its auxiliary contacts - eight in total, divided evenly between NO and NC - further extend monitoring and control capabilities.
Withstanding temperatures from -25°C to 60°C, the Eaton DILAS contactor excels in harsh environments, including manufacturing, electrical automation, and process industries. Highlighted in yellow for quick identification and equipped with a top-mounted, non-detachable auxiliary contact, it facilitates emergency-stop and controlled start operations, meeting stringent safety requirements (category 4 applications).
Compliant with CSA, IEC, and UL standards, this product assures quality, safety, and international compatibility. Its 45mm length, 117mm width, and 68mm depth allow for efficient panel space utilization. The contactor is made in Romania, providing assured European manufacturing standards.
Typical use cases include industrial automation, machine safety control, HVAC systems, power distribution, and relay applications across commercial and manufacturing facilities. For high-performance contactors and related automation gear from Eaton, explore more in the Power Contactors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 120V AC.
It supports a maximum contact voltage of 415V AC.
The contact current rating is 4A.
This model includes a total of 8 auxiliary contacts, configured as 4 NO and 4 NC.
The dimensions are 45mm in length, 117mm in width, and 68mm in depth.
It operates within a temperature range of -25°C to 60°C.
It uses screw clamp terminals for secure wiring.
The power rating is 1.4W.
This contactor is designed for table mounting.
It complies with CSA, IEC, and UL standards.
The normal state configuration includes 4 normally open (NO) and 4 normally closed (NC) contacts.
It is suitable for applications in industrial automation, machine safety control, HVAC systems, and power distribution.
