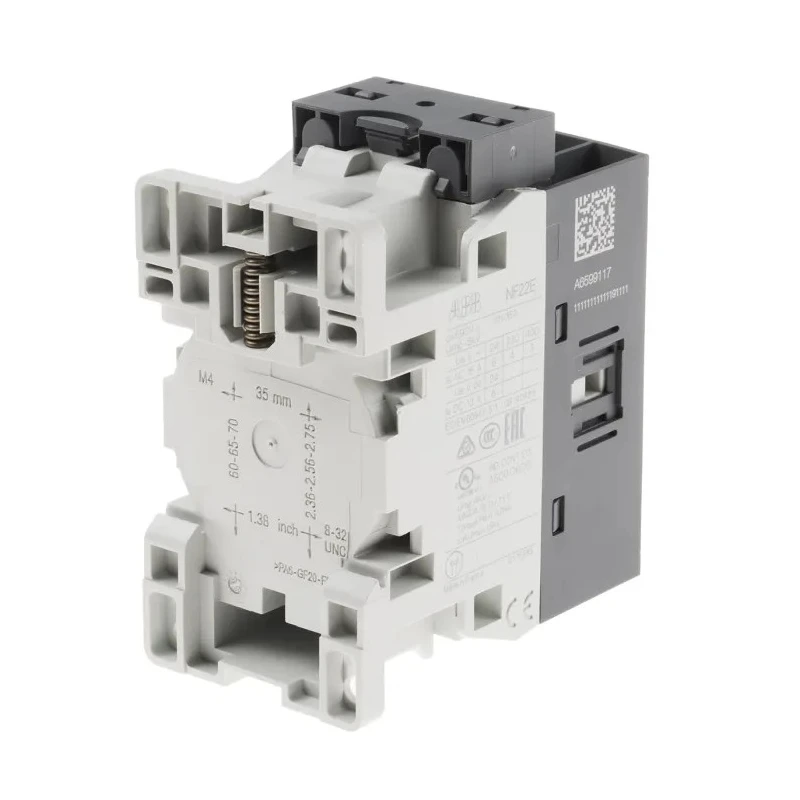

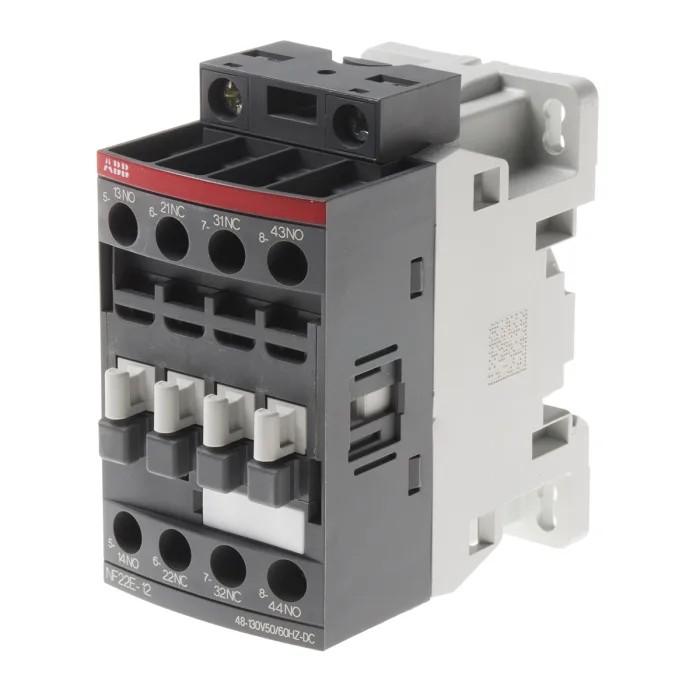

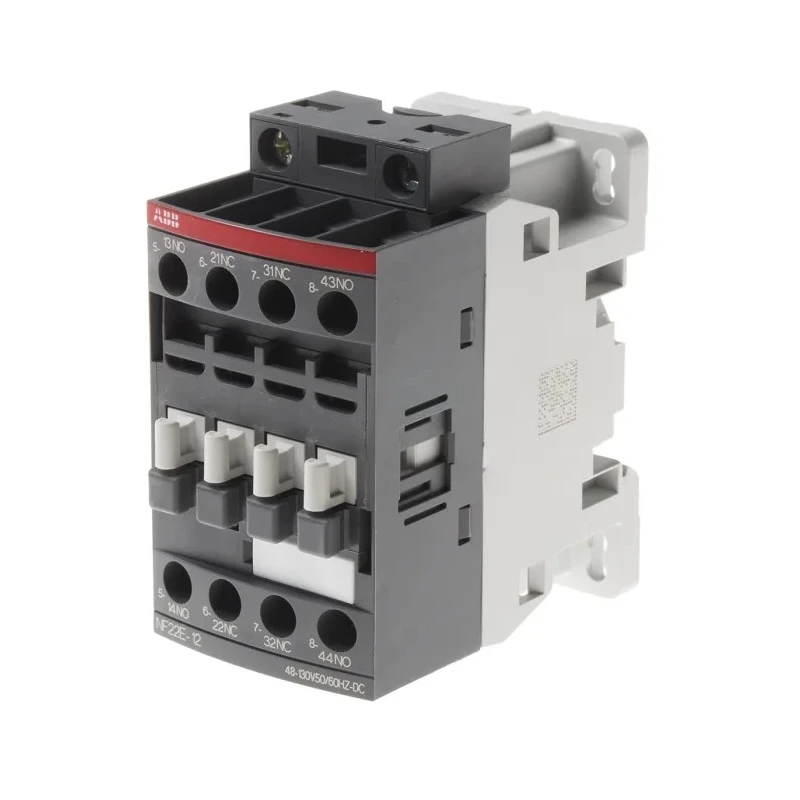

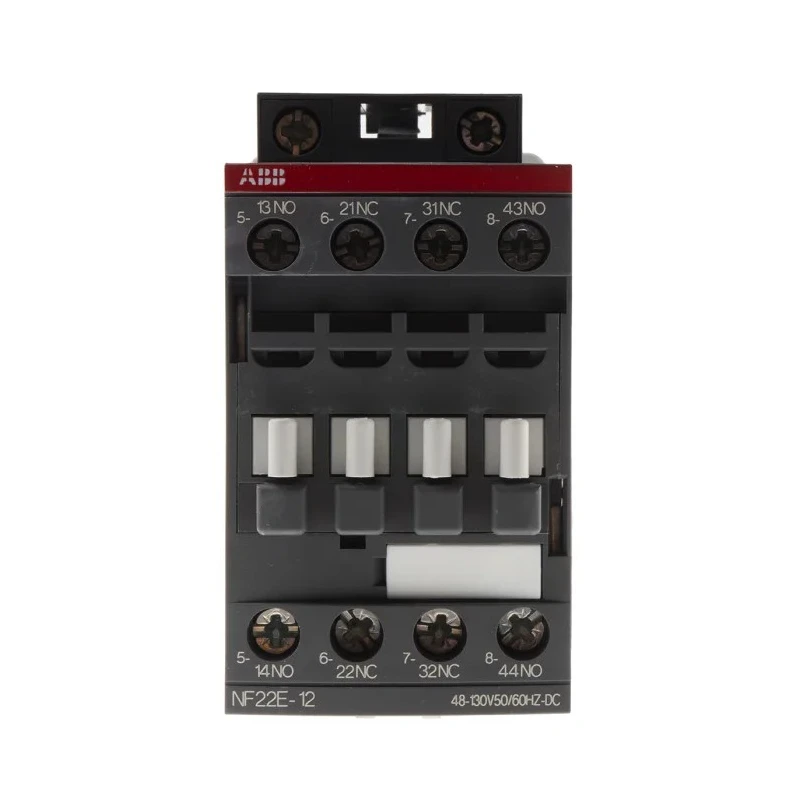

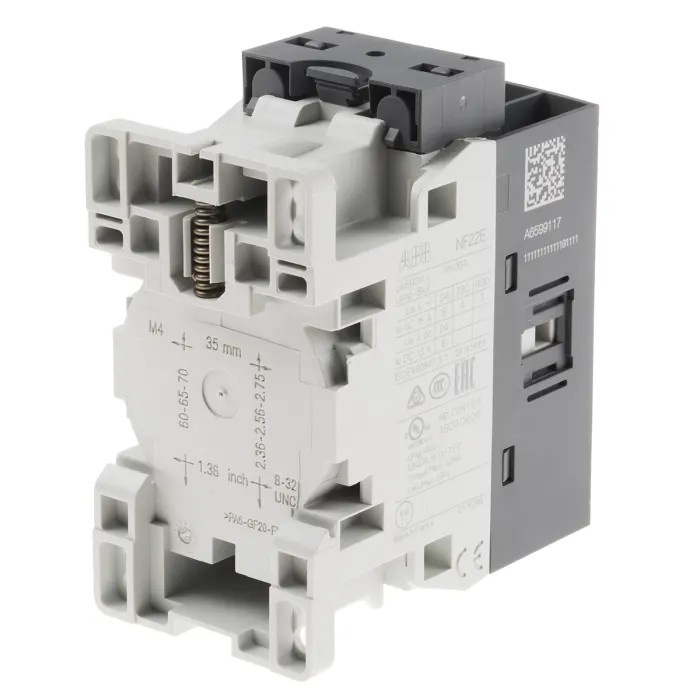

ABB NF Contactor Relay, 110V AC Coil, 4-Pole, 6A Contact Current, 2 NO/2 NC Auxiliary Contacts 1SBH137001R1222 NF22E-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Function | Overload Protection, Self Locking, Straight, Motor Protection |
| Length | 80mm |
| Model | 1SBH137001R1222 NF22E-12 |
| Depth | 77mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | NF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, IEC, NEMA, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 2 NO/2 NC |
| Contact Current | 6A |
| Number of Auxiliary Contacts | 4 |
| Operational Current Ie | 2A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Latching Contactor |
Key Features
- The relay features a 110V AC coil for integration in standard control networks.
- Four poles support switching loads up to 6A at 690V AC voltage.
- Includes 2 normally open and 2 normally closed auxiliary contacts for enhanced control flexibility.
- Screw terminals ensure secure and vibration-resistant wiring connections.
- DIN rail mounting allows quick panel installation and optimal space use.
- Operates from -40°C up to 70°C suitable for harsh industrial environments.
- Certified to IEC, UL, CSA, and NEMA standards ensuring compliance with industrial regulations.
Product Description
ABB 1SBH137001R1222 NF22E-12 Contactor Relay is a robust, DIN-rail mountable device designed primarily for motor control and protection applications in industrial and automation settings. It operates with a 110V AC coil voltage and provides 4 poles capable of switching 6A currents at up to 690V AC, making it ideal for reliable load handling in demanding environments.
The relay includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts enhancing control and signaling flexibility. Screw terminal connections facilitate secure wiring that withstands vibration and electrical noise.
Engineered for durability, this contactor relay functions effectively within a broad temperature range from -40°C to 70°C, suitable for installation in harsh industrial environments. Its DIN rail mounting design enables fast and standardized panel installation while conserving space.
Applications include motor control panels needing latching contact functionality, automation racks requiring auxiliary feedback, small machinery overload protection, and retrofit replacements of screw-terminal relays. This contactor relay complies with relevant industrial standards including IEC 60947-5-1, UL 508, CSA C22.2 No.14, ensuring trusted operational safety and reliability.
The relay features a 110V AC coil for integration in standard control networks. Four poles support switching loads up to 6A at 690V AC voltage. Includes 2 normally open and 2 normally closed auxiliary contacts for enhanced control flexibility.
Screw terminals ensure secure and vibration-resistant wiring connections. DIN rail mounting allows quick panel installation and optimal space use. Operates from -40°C up to 70°C suitable for harsh industrial environments.
Certified to IEC, UL, CSA, and NEMA standards ensuring compliance with industrial regulations. Discover more high-quality contactors and control gear for industrial applications at EnvMart, your reliable source for electrical automation components.
Explore more products in our Contactors & Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor relay is 110V AC, allowing for integration in standard control networks.
This model can handle a maximum contact current of 6A.
It operates within a temperature range of -40°C to 70°C, making it suitable for harsh industrial environments.
This contactor relay features 4 poles, which support switching loads effectively.
It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for enhanced control flexibility.
The dimensions of this model are 80mm in length, 77mm in depth, and 45mm in width.
This relay is designed for DIN rail mounting, allowing for quick installation and optimal space usage.
It is certified to IEC, UL, CSA, and NEMA standards, ensuring compliance with industrial regulations.
This relay can switch loads at a maximum voltage of 690V AC.
It is suitable for motor control panels, automation racks requiring auxiliary feedback, and small machinery overload protection.
This model uses screw terminal connections, which provide secure and vibration-resistant wiring.
The operational current rating for this relay is 2A.
