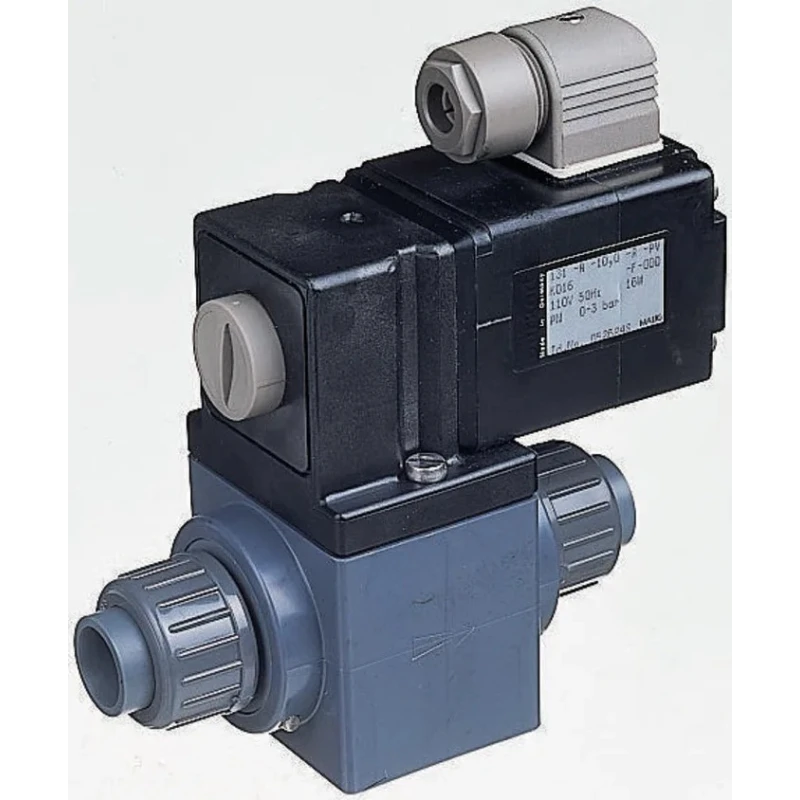

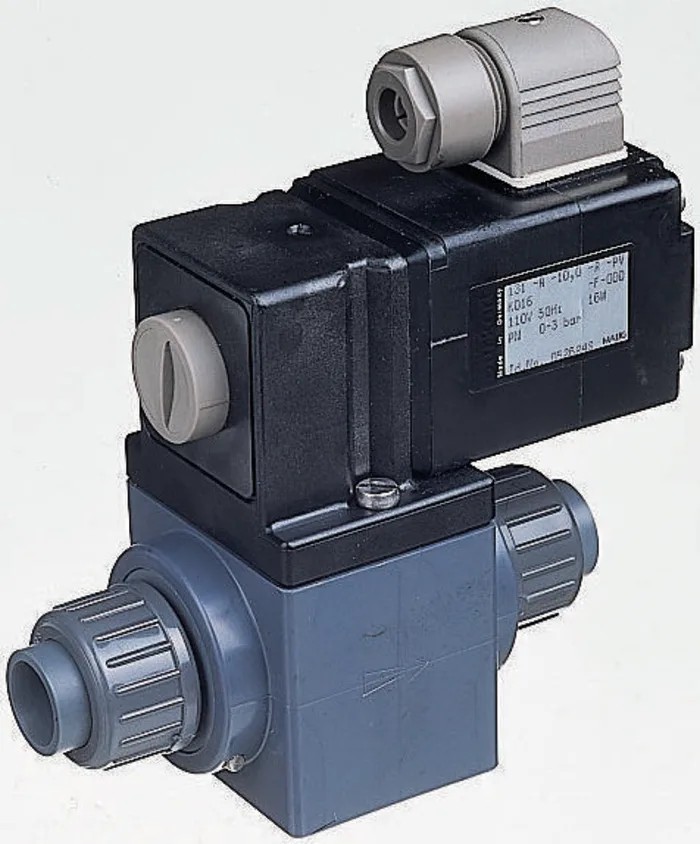

Burkert Solenoid Valve, 2 Port, NC, 110V AC, PVC Body, 10mm Orifice, 3 Bar Max Pressure, Series 0131 052624

The Burkert Solenoid Valve, model 052624, is a high-performance direct-acting valve specifically engineered for demanding applications where control of aggressive gases and liquids is required. With a rigid Polyvinyl Chloride (PVC) body and a 10mm orifice diameter, this valve is part of the renowned Burkert Series 0131, offering reliability in both fluid and chemical environments.

This solenoid valve operates at 110V AC, providing rapid switching and robust performance in industrial settings. The valve is designed with a separate diaphragm that completely isolates the actuator from the fluid, ensuring that internal components are protected from contamination and corrosion, except in cases involving sharp solids or long fibres. Non-metallic internal parts are used to further safeguard against media degradation.

The 2-port configuration allows for flexible integration into pipeline systems where precise media control is necessary. Its normally closed (NC) default position ensures safety in shut-off scenarios and supports operational security. The valve is capable of handling a maximum operating pressure of 3 bar and features a flow factor (Kv) of 2 m³/h, making it suitable for both high-throughput and delicate dosing operations.

For ease of use, the Burkert 052624 is equipped with a lockable manual override, providing operators with hands-on control during maintenance or system checks. The outlet thread follows the G standard, and servo assist is enabled to support reliable actuation without the need for differential pressure.

Protection class IP65 offers excellent resistance to dust and water, further assuring the product’s suitability in industrial environments such as water treatment, chemical cleaning, washing, food and beverage industries, photochemistry, and electroplating systems. A robust HP-coil is rated at 100W inrush and 9W hold, ensuring sustained electromagnetic control during prolonged operation.

Applications span water treatment, aggressive media distribution, chemical process systems, and environments requiring high corrosion resistance. This solenoid valve is manufactured in Germany, reflecting international standards and Burkert’s reputation for quality in fluid handling solutions.

Direct-acting solenoid valve designed for aggressive gases and liquids. Polyvinyl Chloride rigid body ensures durability and resistance to chemicals. Suitable for applications such as water treatment, chemical cleaning, and food processing.

Separate diaphragm isolates actuator from fluid, enhancing reliability. Supports maximum operating pressure of 3 bar for versatile use. Lockable manual override feature for operational safety and flexibility. Flow factor of 2 m³/h for efficient fluid management.

Protection class IP65 for robust environmental safety. No differential pressure required for switching. Explore the full range of Burkert Solenoid Valves on EnvMart for industrial fluid control, offering international quality and reliability in aggressive media handling.
