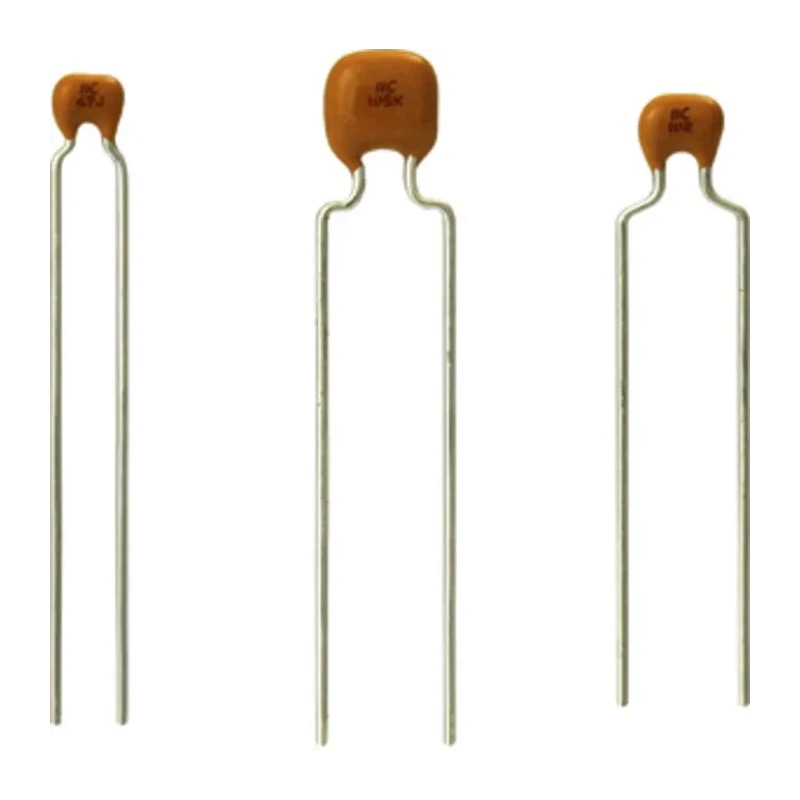

Vishay Multilayer Ceramic Capacitor 10nF 50V ±10% X7R Through Hole Radial K103K15X7RF5TL2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V dc |
| Brand | Vishay |
| Height | 4mm |
| Length | 4mm |
| Model | K103K15X7RF5TL2 |
| Packaging | Tape & Reel |
| Width | 2.6mm |
| Mount Type | Through Hole |
| Series | K |
| Termination Type | Radial |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | EN, UL, RoHS, EIA, IEC |
| Lead Diameter | 0.5mm |
| Dielectric | X7R |
| Suppression Class | Class II |
| Lead Spacing | 2.5mm |
| Seated Plane Height | 1.6mm |
Key Features
- Provides stable 10nF capacitance ideal for coupling and decoupling in electronic circuits.
- Designed for 50V DC operation with X7R temperature stable dielectric.
- Radial lead through-hole mounting for secure installation and ease of use.
- Compact 4 mm × 2.6 mm body for high density circuit board layouts.
- ±10% tolerance ensures consistent and predictable performance.
- Suited for general purpose applications requiring stability over temperature range.
- Complies with EN, UL, RoHS, EIA, and IEC standards for quality assurance.
Product Description
The Vishay K103K15X7RF5TL2 is a high reliability multilayer ceramic capacitor engineered for general and industrial-purpose electronic assemblies. It delivers a nominal capacitance of 10 nanofarads (nF) and is rated for a maximum DC voltage of 50V, making it ideal for a wide range of analog and digital applications where reliable signal coupling, decoupling, and temperature stability are essential.
This component features X7R dielectric, ensuring stable electrical characteristics across a temperature range from -55°C to 125°C, with a capacitance tolerance of ±10%. The through hole radial construction provides sturdy PCB mounting, while its 4 mm length, 2.6 mm width, and a height of 4 mm allow it to fit easily into compact layouts. The lead spacing of 2.5 mm and lead diameter of 0.5 mm further facilitate straightforward assembly on standard boards.
Thanks to its compliance with EN, UL, RoHS, EIA, and IEC standards, the capacitor is suitable for industrial, commercial, and high-volume manufacturing environments. It is widely used in temperature compensation circuits, coupling and decoupling filters, and other general-purpose electronic applications where reliability and performance are key.
A robust X7R ceramic dielectric ensures high capacitance retention over a broad temperature range. The device supports tape and reel packaging for efficient automated assembly. With a suppression class II rating, this capacitor is built to handle higher safety requirements in critical circuit positions.
The Vishay K103K15X7RF5TL2 is utilized in numerous industries including consumer electronics, telecommunications, industrial automation, instrumentation, medical equipment, and automotive subsystems not requiring automotive-qualified components. It is especially favored where compactness, endurance, and reliability are required on crowded PCBs.
Explore more Vishay Multilayer Ceramic Capacitors and related passive components for optimized electronic designs within our curated industrial and electronics component catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a nominal capacitance of 10 nanofarads (nF).
It is rated for a maximum DC voltage of 50V.
The capacitor features an X7R dielectric, which provides stable electrical characteristics across a wide temperature range.
The dimensions are 4 mm in length, 2.6 mm in width, and 4 mm in height.
It operates within a temperature range of -55°C to 125°C.
It is packaged in tape and reel format, which facilitates efficient automated assembly.
The tolerance for this model is ±10%.
This capacitor features a through hole radial mounting type for secure installation.
It complies with EN, UL, RoHS, EIA, and IEC standards.
The lead spacing is 2.5 mm, with a lead diameter of 0.5 mm.
It is suited for general-purpose applications requiring stability over temperature, such as coupling and decoupling in electronic circuits.
This capacitor has a suppression class II rating, indicating it is built to handle higher safety requirements in critical circuit positions.
