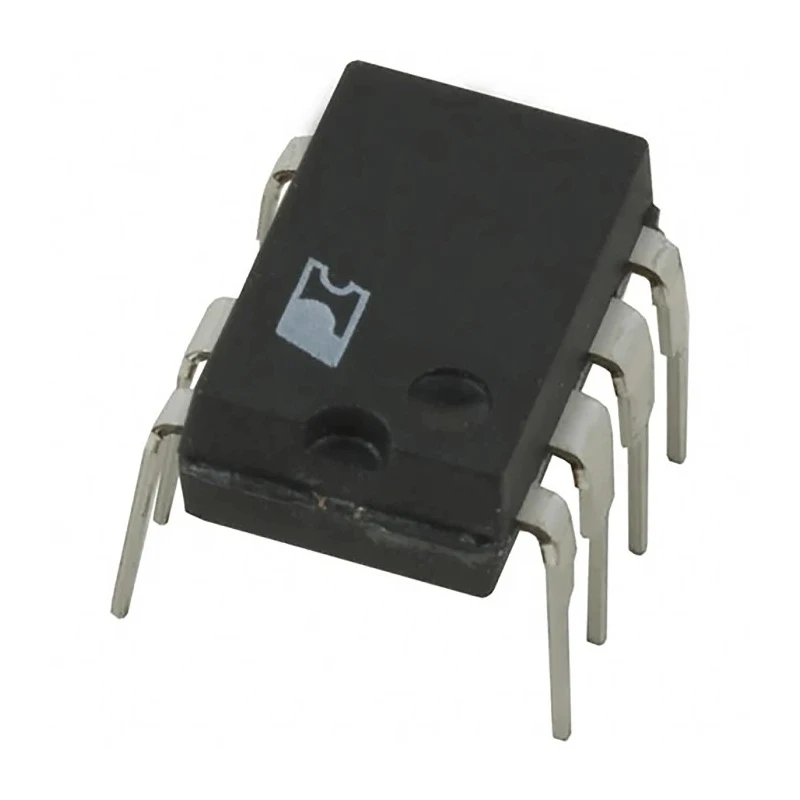

Power Integrations Buck Converter Through Hole 700V 80mA DIP-B LNK302PN
Specifications
| Country of Origin | China |
|---|---|
| Brand | Power Integrations |
| Efficiency | 75% |
| Length | 9.83mm |
| Model | LNK302PN |
| Depth | 6.6mm |
| Width | 3.68mm |
| Mount Type | Through Hole |
| Series | LNK302 |
| Output Current | 80mA |
| Maximum Operating Temperature | 150°C |
| Package Type | DIP-B |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 265V ac |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 85V ac |
| Number of Pins | 8 |
| Output Voltage 1 | 700V |
| Output Voltage 2 | -0.3V |
Key Features
- Delivers step-down DC voltage conversion up to 700V output.
- Supports maximum output current of 80mA suitable for low power applications.
- High efficiency operational design with up to 75 percent efficiency.
- Through hole package type DIP-B allows easy PCB mounting.
- Wide operating temperature range from minus 40°C up to 150°C.
- Designed with integrated MOSFET, oscillator and control IC for enhanced performance.
- Supports buck, buck-boost and flyback topologies for versatile power designs.
- Compliant with RoHS standards for environmentally responsible manufacturing.
Product Description
Power Integrations LNK302PN Buck Converter is a high-performance, step-down voltage regulator designed for electronic applications demanding efficient operation under varying conditions. It offers a single output channel with a maximum output voltage of 700V and output current of 80mA, making it ideal for low power, non-isolated power supply implementations.
This buck converter utilizes a through hole DIP-B package, simplifying integration into PCB assemblies and ensuring reliable long-term operation. The device incorporates a 700V power MOSFET, oscillator, and control logic onto a monolithic IC, providing tight tolerances, high efficiency (up to 75 percent), and negligible temperature variation across its wide operating range from minus 40°C to 150°C.
With support for buck, buck-boost, and flyback topologies, engineers can deploy the LNK302PN in diverse power conversion applications. It features robust system-level protections including thermal overload, output short circuit, and open loop protections. Fast turn-on is ensured by high bandwidth, with no voltage overshoot and rapid response to load changes.
The device integrates built-in current limit, hysteretic thermal protection, and frequency jittering to enhance reliability and stability, especially in capacitor-fed and linear power supply replacements. It is fully compliant with RoHS standards, making it suitable for eco-conscious product applications.
Delivers step-down DC voltage conversion up to 700V output. Supports maximum output current of 80mA suitable for low power applications. High efficiency operational design with up to 75 percent efficiency. Through hole package type DIP-B allows easy PCB mounting.
Wide operating temperature range from minus 40°C up to 150°C. Designed with integrated MOSFET, oscillator and control IC for enhanced performance. Supports buck, buck-boost and flyback topologies for versatile power designs.
Compliant with RoHS standards for environmentally responsible manufacturing. Applicable for industrial, electronic, laboratory, and commercial PCB-based low power supply systems. Browse more Power Integrations converters in EnvMart's DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 700V.
It supports a maximum output current of 80mA, making it suitable for low power applications.
This unit has an operational efficiency of up to 75 percent.
The operating temperature range is from -40°C to 150°C.
It utilizes a through hole DIP-B package type for easy PCB mounting.
The minimum input voltage is 85V AC and the maximum is 265V AC.
This converter supports buck, buck-boost, and flyback topologies for versatile power designs.
It provides a single output channel.
The dimensions are 9.83mm in length, 6.6mm in depth, and 3.68mm in width.
Yes, it is compliant with RoHS standards for environmentally responsible manufacturing.
It features thermal overload, output short circuit, and open loop protections for enhanced reliability.
The country of origin for this model is China.
