Rigol DP900 Series Programmable Linear DC Power Supply Triple Output 210 W 32 V | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

RIGOL Programmable Linear DC Power Supplies DP900 Series

Name: RIGOL Programmable Linear DC Power Supplies DP900 Series
Brand: Rigol
SKU: 73319
Price: 573.31 USD
Availability: InStock



Category DC Power Supply Brand Rigol

Model

DP932E DP932U

Number of Channels

Total Power

Output per Channel

Programming Resolution

Display Resolution

Readback Resolution

Specifications

Country of Origin	India
Brand	Rigol
Operating Temperature	0℃ to 40℃
Storage Temperature	-40℃ to 60℃
Calibration Interval	12 months
Humidity	5% to 80% RH
Altitude	Less than 1500 m
Model	DP900 Series
IP Rating	IP20
Weight	9.15 kg
AC Input	100 V/120 V/220 V/230 V ±10%
Interfaces	USB Device, USB Host (2x), LAN, Digital I/O
Touch Screen	4.3 inch, Color LCD
Form Factor	3U, 1/2-rack
Number Of Channels	3 (independent, isolated)
Protection	OVP/OCP/Over Temperature
Overvoltage Category	OVC II
Product Condition	New
MPN	DP900 Series
Dimensions (W×H×D)	239 × 157 × 419 mm
Total Output Power	210 W
Programming Accuracy (CH1/CH2 Voltage)	0.05% + 10 mV
Minimum Dwell Time	100 ms
Transient Response Time	Less than 50 μs
CH1 Output	0–32 V / 0–3 A
CH2 Output	0–32 V / 0–3 A
CH3 Output	0–6 V / 0–3 A
Series Mode Voltage	64 V
Parallel Mode Current	6 A
Programming Accuracy (CH1/CH2 Current)	0.2% + 5 mA
Readback Accuracy (CH1/CH2 Voltage)	0.05% + 10 mV
Readback Accuracy (CH1/CH2 Current)	0.15% + 5 mA
Output Ripple and Noise	Less than 350 μVrms / 2 mVpp
Waveform Points	512 arbitrary
Maximum Input Power	650 VA

Key Features

Rigol DP900 Series Programmable Linear DC Power Supply offers high-precision triple output with excellent accuracy, ideal for laboratory and industrial use.

Triple output with three fully isolated channels for flexible testing.
Delivers up to 210 W total output power supporting simultaneous multi-channel requirements.
Wide voltage (up to 32 V) and current (up to 3 A) ranges per channel for diverse applications.
4.3-inch color LCD touch screen for intuitive control and display.
Low output ripple and noise with advanced transient response time under 50 μs.
Supports internal series and parallel configuration to extend voltage or current range.
Comprehensive programming and readback accuracy up to 0.05% + 10 mV.
Equipped with USB Device & Host, LAN, and Digital I/O interfaces for versatile connectivity.
Automatic protection including over voltage, over current, and over temperature for hardware safety.

Product Description

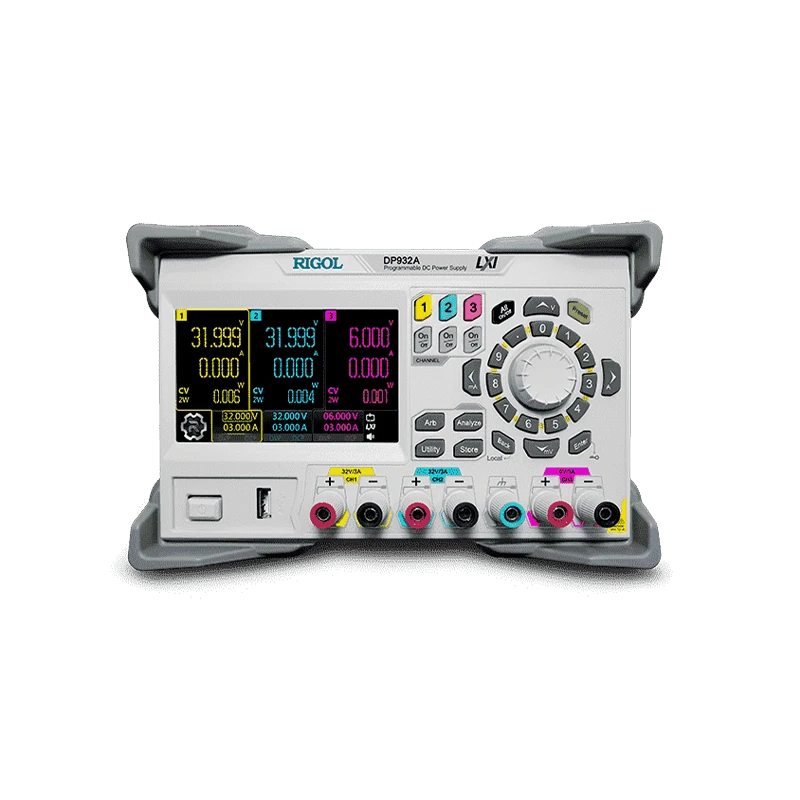

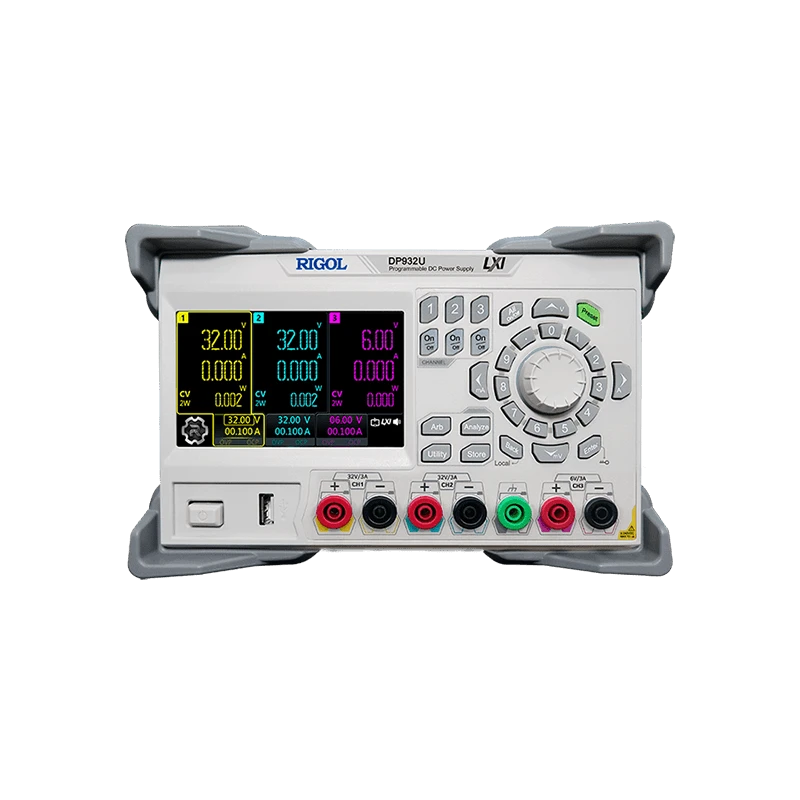

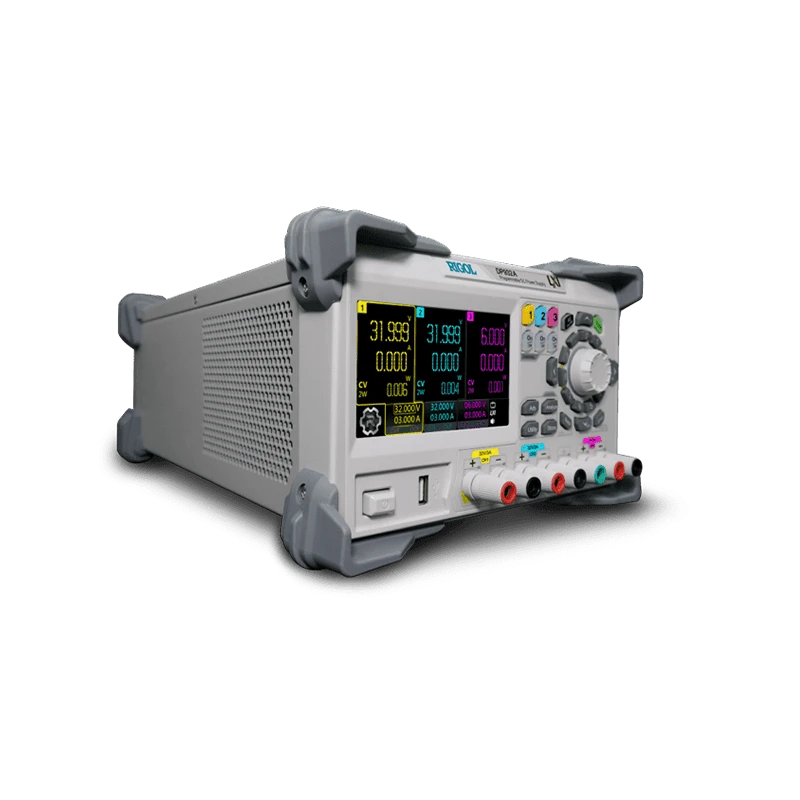

Rigol DP900 Series Programmable Linear DC Power Supply is a high-precision triple output instrument designed for laboratory, R&D, higher education, electronic design, and manufacturing use. It features three fully isolated channels, each capable of outputting up to 32 V and 3 A (or 6 V/3 A for CH3), providing up to 210 W total power for versatile testing requirements.

The 4.3-inch color touch screen offers an intuitive user interface, while 512-point arbitrary waveform generation allows advanced signal control. The DP900 Series achieves exceptional programming accuracy of up to 0.05% + 10 mV, low output ripple (<350 μVrms/2 mVpp), and <50 μs transient response times, making it ideal for demanding test environments. Internal series and parallel configurations allow CH1 and CH2 to operate at up to 64 V or 6 A, offering expanded flexibility.

Triple output with three independent, fully isolated channels (CH1: 0–32 V/3 A, CH2: 0–32 V/3 A, CH3: 0–6 V/3 A).
Maximum total output power up to 210 W, with series mode up to 64 V and parallel mode up to 6 A.
High programming accuracy (0.05% + 10 mV for CH1/CH2 voltage; 0.2% + 5 mA for current).
Low ripple and noise—less than 350 μVrms/2 mVpp; transient response under 50 μs.
Comprehensive protection includes OVP, OCP, and over temperature.

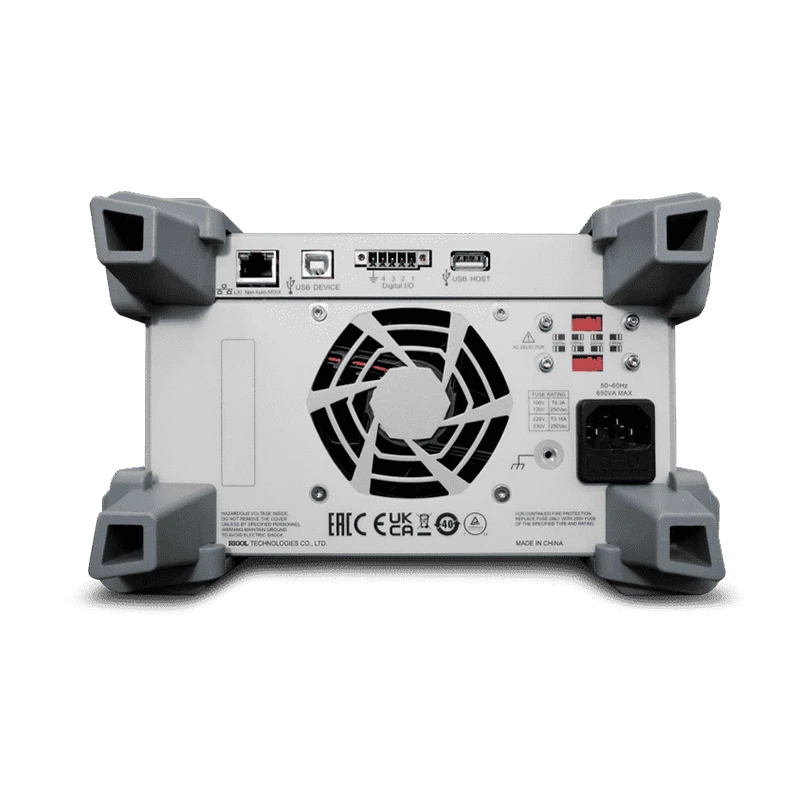

Connectivity: USB Device, USB Host (2x front/rear), LAN, Digital I/O.
4.3-inch color LCD touch screen for easy parameter setting and monitoring.
3U, 1/2-rack form factor for convenient integration, with robust 9.15 kg construction.
Advanced features: 512 arbitrary points waveform, 100 ms minimum dwell time, and data logging.
Suitable for laboratory, electronics, education, design, and industrial equipment testing.

Mechanical dimensions: 239 mm × 157 mm × 419 mm (W × H × D). Weight: 9.15 kg. AC Input: 100 V/120 V/220 V/230 V ±10%, max input power 650 VA. Operating temperature range: 0℃ to 40℃; IP20 rating. Origin: India.

For more laboratory power solutions, explore the Rigol range and Measuring & Testing Instruments on EnvMart.

RIGOL Programmable Linear DC Power Supplies DP900 Series

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

Frequently Asked Questions

The Rigol DP900 Series offers a total output power of up to 210 W, allowing for versatile testing across its three channels.

The Rigol DP900 Series features three independent and fully isolated channels, providing flexibility for various applications.

Each of the first two channels (CH1 and CH2) can output 0–32 V and up to 3 A, while the third channel (CH3) outputs 0–6 V and 3 A.

Yes, the Rigol DP900 Series includes automatic protection features such as over voltage, over current, and over temperature to ensure hardware safety.

The programming accuracy for voltage on CH1 and CH2 is 0.05% + 10 mV, while for current it is 0.2% + 5 mA.

The Rigol DP900 Series is equipped with a 4.3-inch color LCD touch screen for intuitive control and parameter monitoring.

The transient response time of the Rigol DP900 Series is less than 50 μs, making it suitable for demanding test environments.

Yes, the Rigol DP900 Series includes connectivity options such as USB Device, USB Host, LAN, and Digital I/O for versatile integration.

The dimensions of the Rigol DP900 Series are 239 mm × 157 mm × 419 mm, and it weighs 9.15 kg.

The Rigol DP900 Series is manufactured in India.
