RIGOL DS7000 Series Digital Oscilloscope | DS7014 | DS7024 | DS7034 | DS7054

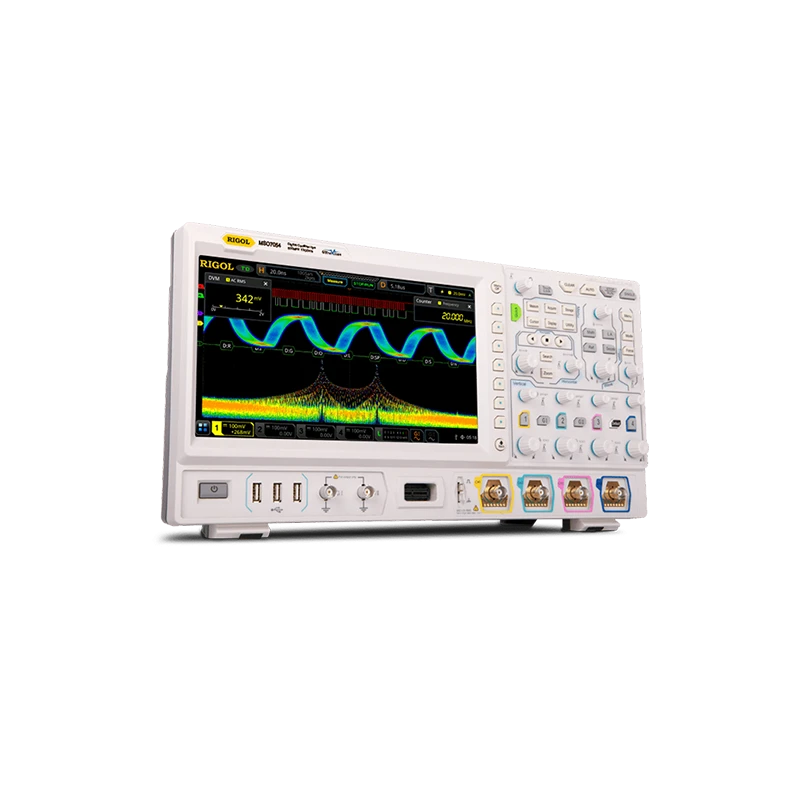

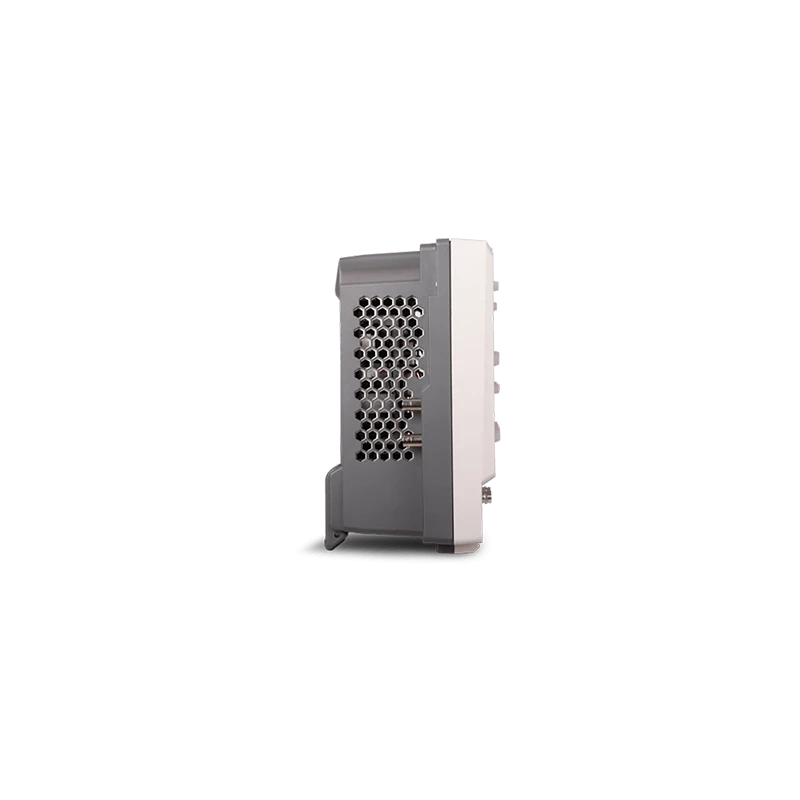

The RIGOL DS7000 Series Digital Oscilloscope, available in DS7014, DS7024, DS7034, and DS7054 models, is a high-performance laboratory and industrial measuring instrument built on RIGOL’s UltraVision II architecture. Designed for advanced signal analysis, waveform testing, circuit debugging, and electronic-system validation, the series is suitable for R&D laboratories, power-electronics testing, industrial automation, automotive electronics, manufacturing, and educational applications.

The DS7000 Series provides four analog input channels, one external trigger input, and model-specific bandwidth options up to 500 MHz. Its bandwidth can be upgraded through software when additional measurement capability is required. A real-time sampling rate up to 10 GSa/s enables precise capture of fast signal transitions and high-frequency events.

Standard memory depth of 100 Mpts supports long-duration waveform acquisition, while optional upgrades extend the memory to 250 Mpts or 500 Mpts. A waveform capture rate of at least 600,000 waveforms per second and hardware waveform recording of at least 450,000 frames help users identify intermittent faults, timing errors, signal anomalies, and rare events that may be missed by conventional oscilloscopes.

• Analog bandwidth options up to 500 MHz
• Four analog input channels and one external trigger input
• Real-time sampling rate up to 10 GSa/s in single-channel operation
• Standard memory depth of 100 Mpts
• Optional memory upgrades to 250 Mpts or 500 Mpts
• Waveform capture rate of at least 600,000 waveforms per second
• Hardware waveform recording of at least 450,000 frames
• Peak detection for glitches as short as 400 ps
• More than 41 automatic waveform measurements
• FFT spectrum analysis with up to 1 Mpts
• Advanced triggering, search, navigation, and mathematical functions
• Pass/fail testing for production and quality-control applications
• Integrated digital voltmeter and frequency counter
• Protocol-analysis capabilities for serial communication testing

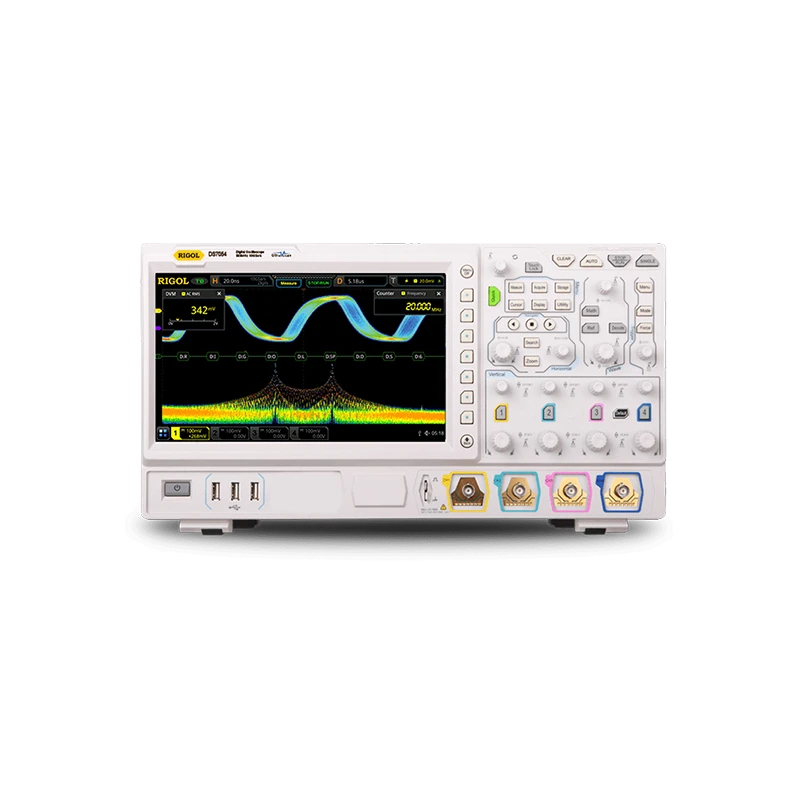

• 10.1-inch capacitive multi-touch display with 1024 × 600 resolution

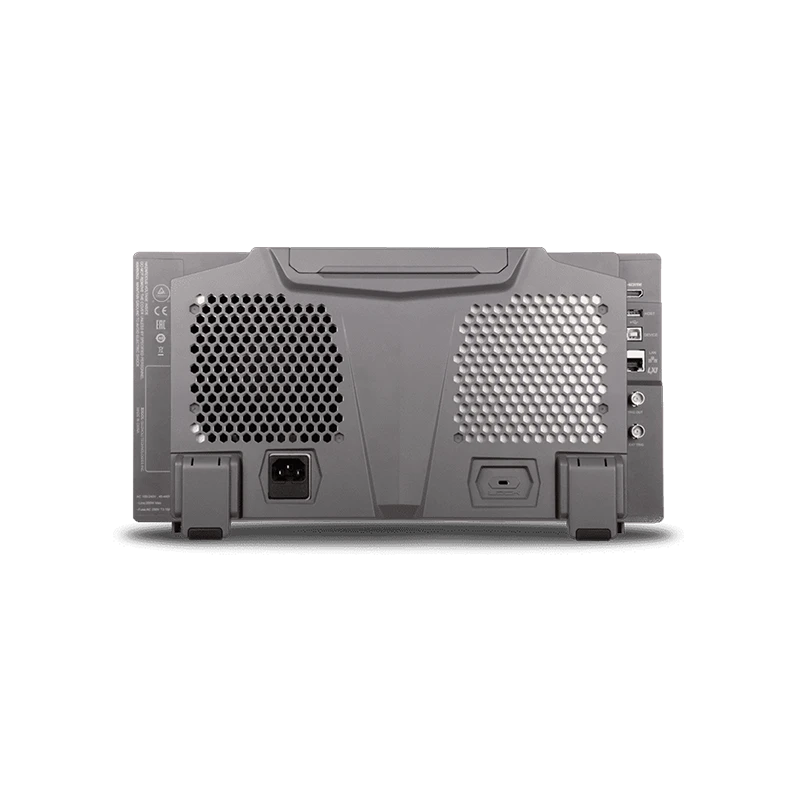

• Four USB Host ports, Gigabit LAN, HDMI, TRIG OUT, and pass/fail output
• Optional USB-GPIB support for automated test systems
• Rack-mountable 6U design for laboratory and industrial installations

The large capacitive touchscreen provides clear waveform visualisation and convenient access to measurement, triggering, analysis, and storage functions. Its enhanced FFT, full-memory hardware measurements, and advanced search tools help engineers analyse both time-domain and frequency-domain signals efficiently.

The oscilloscope operates from a 100–240 V AC power supply and is designed for stable operation from 0°C to 50°C. With dimensions of approximately 410 × 224 × 135 mm and a weight below 3.9 kg, it is suitable for benchtop use as well as rack-mounted test environments. Package contents may include the main oscilloscope, compatible probes, interface cables, power cord, and user documentation, depending on the selected model and supplier configuration.

Typical applications include embedded-system debugging, analog circuit analysis, power-supply validation, industrial-control troubleshooting, automotive-electronics testing, electronic product development, manufacturing quality assurance, equipment maintenance, and laboratory research.

Available Models: DS7014 | DS7024 | DS7034 | DS7054
