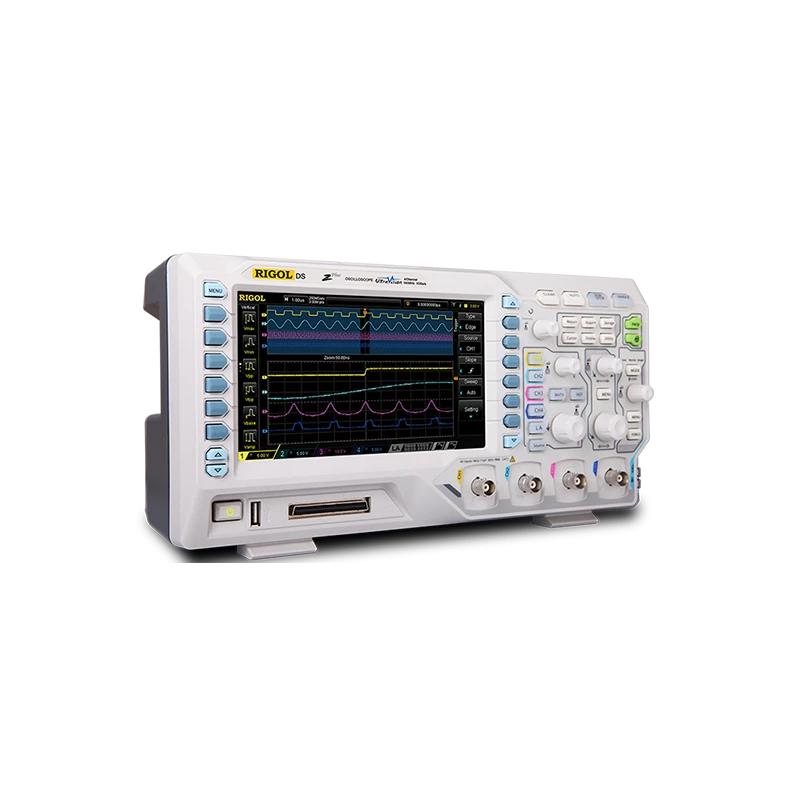

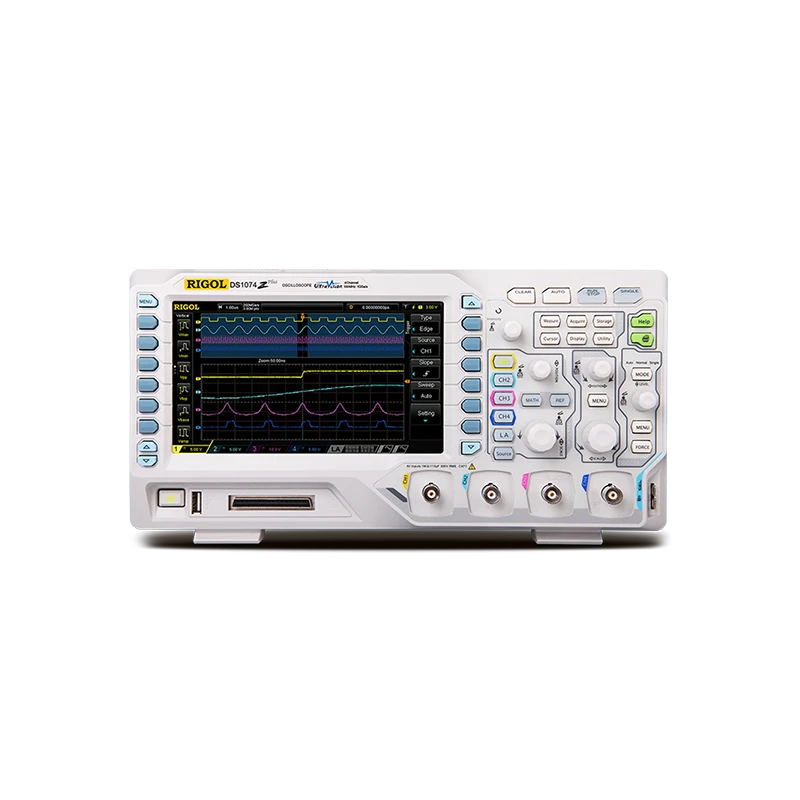

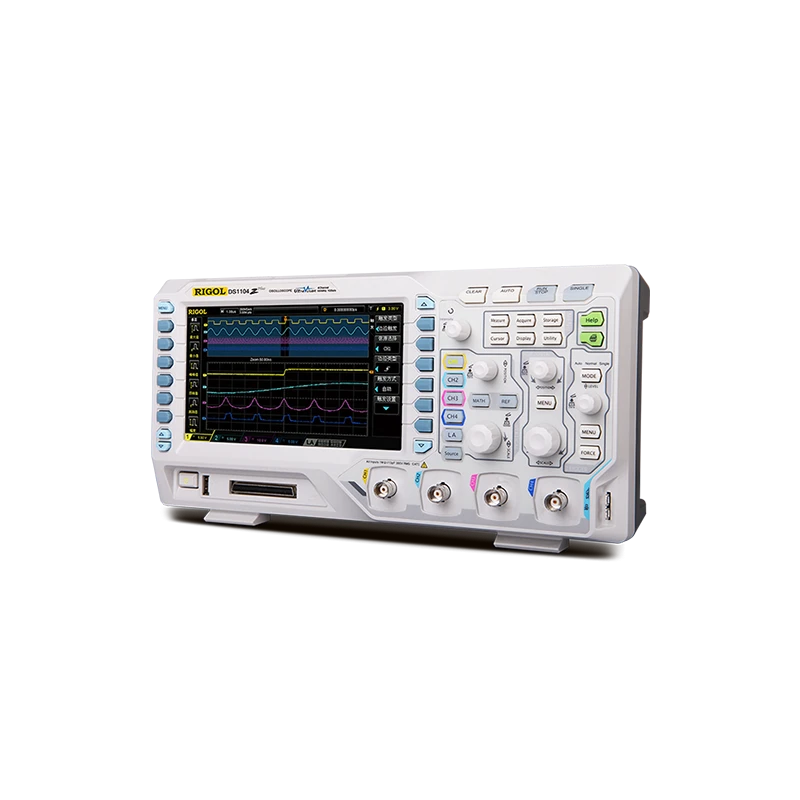

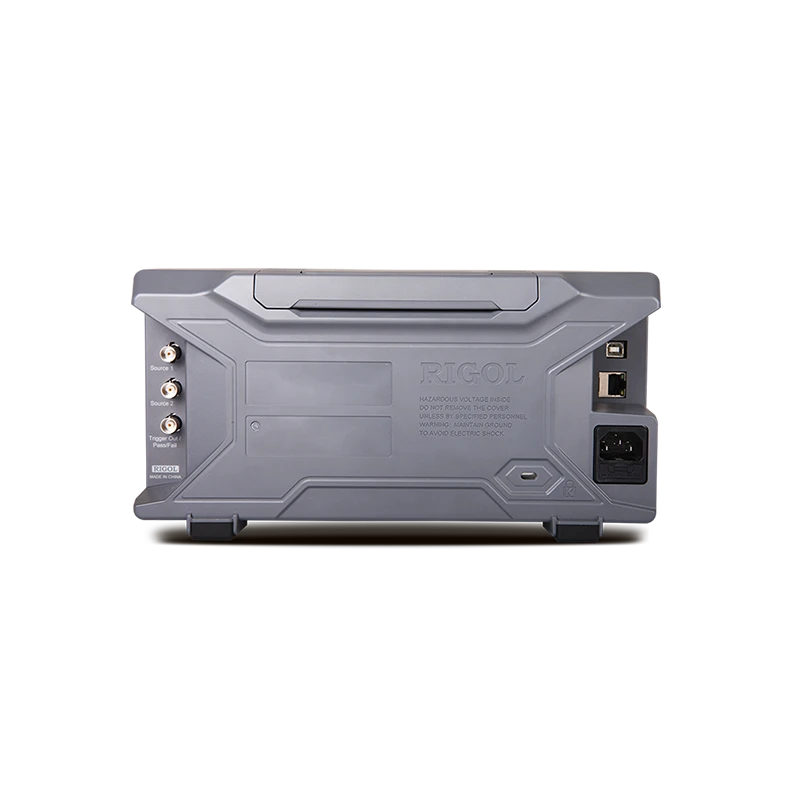

RIGOL DS1000Z Series Digital Oscilloscope | DS1054Z | DS1074Z Plus | DS1074Z-S Plus | DS1104Z Plus | DS1104Z-S Plus
Model
Analog Bandwidth
Analog Channels
Specifications
| Country of Origin | China |
|---|---|
| Power Consumption | Max. 50 W |
| Brand | Rigol |
| Power Supply | 100–240 V AC, 45–440 Hz |
| Operating Temperature | 0°C to +50°C |
| Dimensions | 313.1 × 160.8 × 122.4 mm |
| Model | DS1000Z Series |
| Weight | 3.2 kg |
| Input Impedance | 1 MΩ ±1% || 15 pF ±3 pF |
| Waveform Capture Rate | Up to 30000 wfms/s |
| Maximum sample rate | 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (three/four-channel) |
| Memory Depth | Up to 24 Mpts (single-channel); 12 Mpts (dual); 6 Mpts (three/four) |
| Timebase Range | 5 ns/div to 50 s/div |
| Rise Time | 3.5 ns (100 MHz), 5 ns (70 MHz), 7 ns (50 MHz) |
| Trigger Types | Edge, Pulse, Runt, Window, Slope, Video, Pattern, etc. |
| Bandwidth Limit | 20 MHz |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Product Condition | New |
| Bandwidth Options | DS1054Z – 50 MHz; DS1074Z Plus – 70 MHz; DS1104Z Plus – 100 MHz |
| Analog Channels | 4 |
| Timebase Accuracy | ≤±25 ppm |
| Digital Channels | 16 (Optional, Plus models) |
| Waveform Recording & Playback | Up to 60000 frames |
| Built-in Signal Generator | Dual 25 MHz (on -S Plus models) |
| Recommended Calibration Interval | 18 months |
Key Features
Rigol DS1000Z Series Digital Oscilloscope provides up to 100 MHz bandwidth and fast real-time sampling for precise electronic signal analysis in research, development, and laboratory environments.
- Features UltraVision technology with a deep memory and intensity-graded display.
- Offers 4 analog input channels and optional 16 digital channels on Plus models.
- Supports a real-time sampling rate up to 1 GSa/s and memory depth up to 24 Mpts.
- Includes advanced hardware real-time waveform recording and replay up to 60000 frames.
- Provides comprehensive triggering and serial bus decoding capabilities.
- Signal generator and mixed-signal analysis options available in Plus and S Plus models.
- Includes a 7-inch color TFT display with 800×480 resolution.
- Wide applications in electronics design, embedded system debugging, and educational labs.
Product Description
The RRIGOL DS1000Z Series Digital Oscilloscope, available in DS1054Z, DS1074Z Plus, DS1074Z-S Plus, DS1104Z Plus, and DS1104Z-S Plus models, is a versatile electronic test and measurement instrument designed for circuit analysis, embedded-system debugging, laboratory testing, and engineering education. Built on RIGOL’s UltraVision technology, the series combines deep memory, fast waveform capture, advanced triggering, and clear waveform visualisation in a compact benchtop design.
The DS1000Z Series provides up to 100 MHz analog bandwidth, real-time sampling rates up to 1 GSa/s, and four analog input channels for analysing multiple signals simultaneously. Plus models support 16 optional digital channels with a compatible logic probe, allowing mixed-signal testing of analog and digital circuits within a single platform.
With memory depth up to 24 Mpts in single-channel operation and waveform capture rates up to 30,000 waveforms per second, the oscilloscope can record long signal sequences and identify intermittent faults, glitches, timing errors, and signal abnormalities. Waveform recording and playback of up to 60,000 frames further support detailed event analysis and troubleshooting.
- Analog bandwidth options up to 100 MHz
- Four analog input channels
- Real-time sampling rate up to 1 GSa/s
- Memory depth up to 24 Mpts
- Waveform capture rate up to 30,000 waveforms per second
- Optional 16 digital channels on compatible Plus models
- Edge, pulse, runt, video, and serial-bus triggering
- Protocol decoding for RS232/UART, I²C, and SPI
- Waveform recording and playback up to 60,000 frames
- FFT, integration, differentiation, and filtering functions
- Seven-inch TFT LCD with intensity-graded waveform display
- USB Host, USB Device, LAN, LXI, and AUX connectivity
- Maximum power consumption of 50 W
- Universal 100–240 V AC input
Compatible S Plus models feature an integrated dual-channel 25 MHz signal generator, supporting stimulus-response testing, circuit validation, and practical electronics education. Advanced mathematical analysis and FFT functions help users examine waveform behaviour in both time and frequency domains.
The RIGOL DS1000Z Series Digital Oscilloscope is suitable for industrial R&D, embedded-system development, power-electronics testing, electronic manufacturing, equipment maintenance, academic laboratories, engineering training, and general-purpose signal measurement.
Available Models: DS1054Z | DS1074Z Plus | DS1074Z-S Plus | DS1104Z Plus | DS1104Z-S Plus
Explore more RIGOL digital oscilloscopes, mixed-signal oscilloscopes, laboratory instruments, and electronic test equipment in the Oscilloscope category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DS1000Z Series offers a maximum bandwidth of up to 100 MHz, depending on the model.
The Rigol DS1000Z Series features 4 analog input channels, with optional 16 digital channels available on Plus models.
The oscilloscope supports a maximum sample rate of 1 GSa/s for single-channel use, with lower rates for dual and multi-channel configurations.
The memory depth can reach up to 24 Mpts for single-channel operation, and 12 Mpts for dual-channel, 6 Mpts for three or four channels.
Yes, the Rigol DS1000Z Series is suitable for educational labs, offering features that support learning in electronics design and signal analysis.
The Rigol DS1000Z supports various triggering types including edge, pulse, runt, window, slope, video, and pattern triggers.
The operating temperature range for the Rigol DS1000Z Series is from 0°C to +50°C.
The Rigol DS1000Z weighs approximately 3.2 kg, making it relatively lightweight for portability.
Yes, the S Plus models of the Rigol DS1000Z Series include a dual-channel 25 MHz signal generator.
The maximum power consumption of the Rigol DS1000Z is 50 W.
