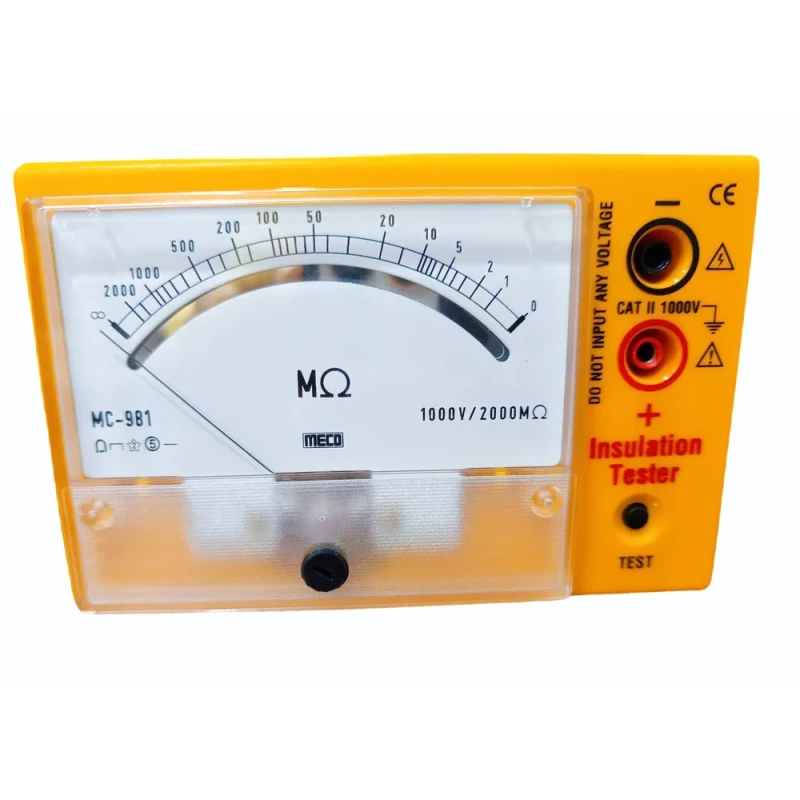

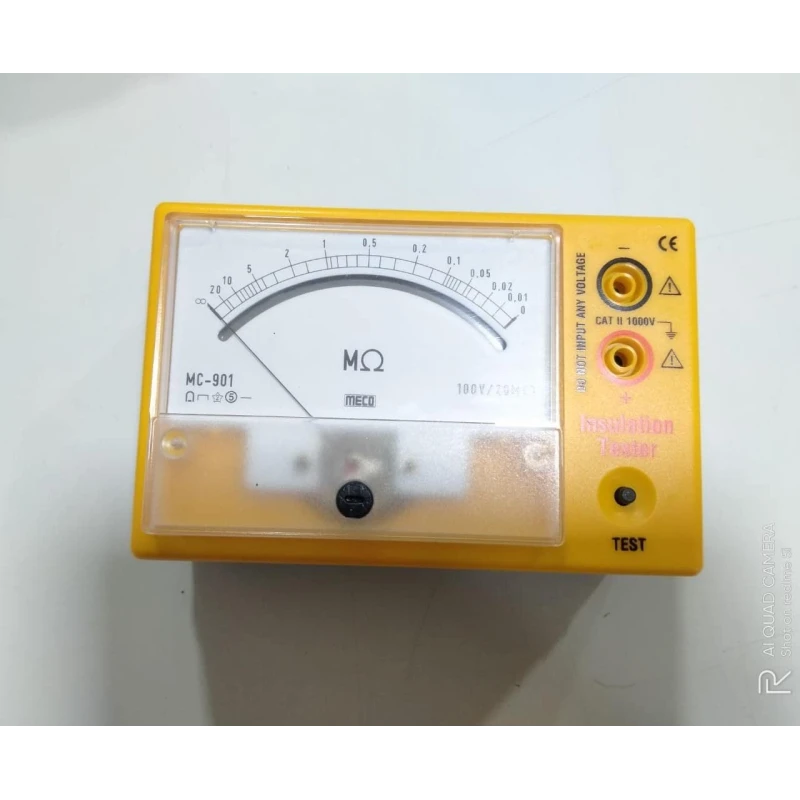

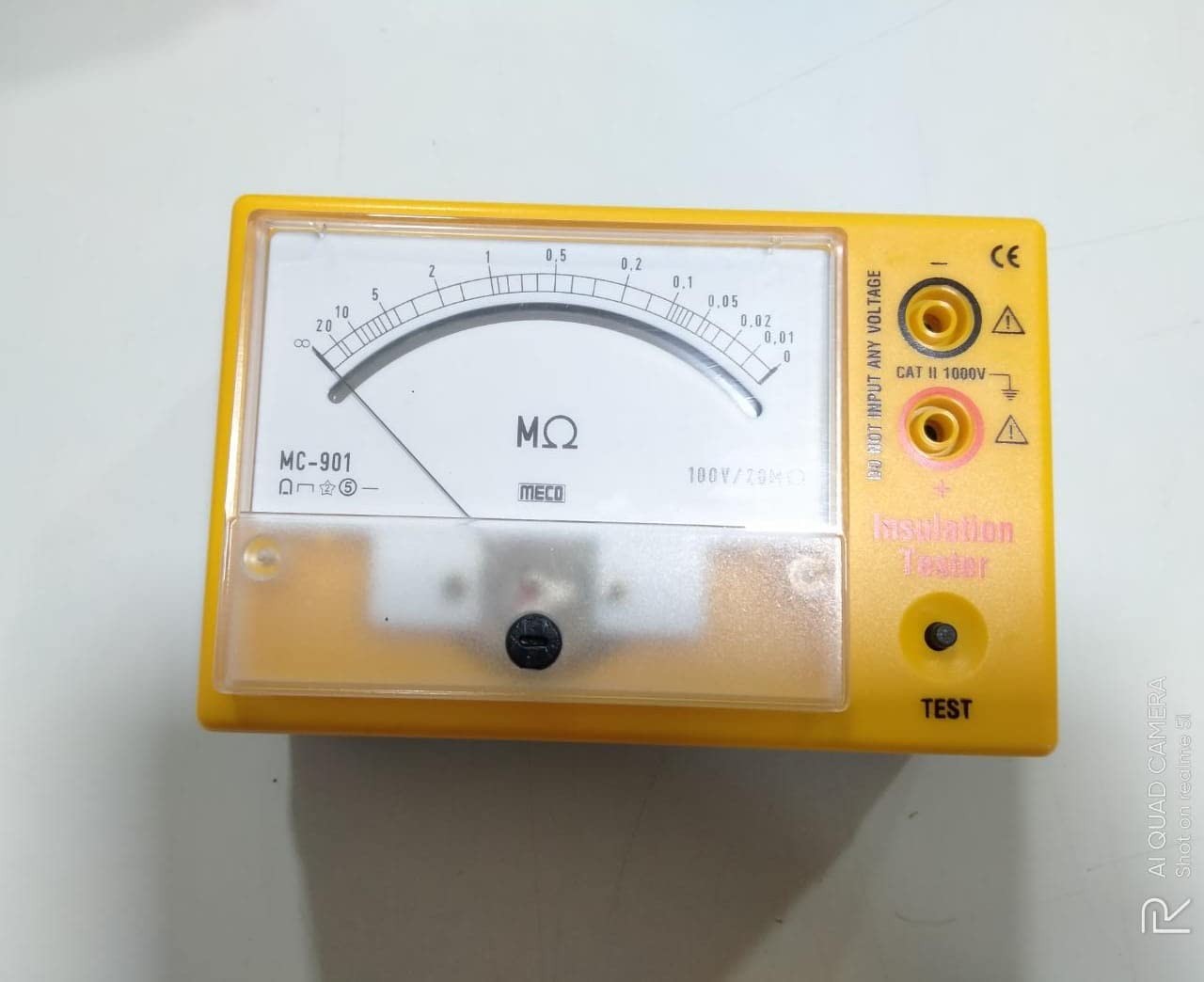

Meco Analog Insulation Tester MC-900
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±5% of indicated value at 27°C ±5°C |
| Relative Humidity | 80% Maximum |
| Brand | Meco |
| Power | 9V (6 x 1.5V AA) battery |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 144.5 x 95 x 72.5mm (approx.) |
| Storage Temperature | -10°C to 60°C |
| Model | MC-900 |
| Weight | 0.16 kg |
| Dielectric strength | 3.5kV 50Hz for 1 min between input terminals & case |
| Insulation resistance | More than 50MΩ at 500V between circuit & case |
| Low Battery | When battery voltage drops below operating voltage pointer cannot reach zero after shorting the output terminals |
Key Features
- Single-Person Push Button Operation
- High Accuracy ± 5% of Indicated Value in Effective Range
- Scale Length: 80mm (approx.)
- Terminal Voltage: More Than 85% of Rated Voltage for Insulation Resistance-s)
- Measurement from 10% to 100% of the Insulation Resistance Range
- ABS Resin Yellow Case with Polycarbonate Meter Front Cover
- Meets Requirement of IEC 61010, Installation Category II, 1000VPhase Earth
- Designed to Generally Confirm to IS 10656-1983
- 7 Models with various Voltage & MOhm Ranges
- Battery Adaptor (Optional) for MC-900BA Series
- Electrical Equipment (Motors, Transformers, Machines, etc.)
- Cables for Communication Networks
- Industrial, Commercial & Residential Installations
- Electrical Cables for Distribution Networks
- House Hold Appliances (Washing Machines, Mixer, Toaster, etc.)
Product Description
The Meco MC-900 is an analog insulation tester designed for evaluating insulation resistance in electrical systems, cables, transformers, and machines. With selectable test voltages up to 1000V, it provides clear and reliable analog readings, making it ideal for field engineers who prefer visual analog scales. The durable, portable design and mechanical stability make it suitable for routine preventive maintenance, installation verification, and quality inspections across electrical plants, workshops, and substations.
Package Contents:Test and Calibration Certificate / Pair of Crocodile / Alligator Test Leads (Red & Black) x 1 / Carrying Case x 1 / 1.5V AA Batteries x 6 (Fitted - In) Battery Adaptor (Optional) for MC-900BA Series [Adaptor Input : 100 - 240V / 50 / 60Hz / 0.3A Output : 9V 500mA]
Available on EnvMart, these Insulation Testers are built for precise insulation resistance measurement. Meco Insulation Testers deliver high accuracy, safety, and durability for electrical, industrial, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Meco MC-900 Insulation Tester measures insulation resistance from 10% to 100% of the insulation resistance range with selectable test voltages up to 1000V.
The Meco MC-900 has an accuracy of ±5% of the indicated value at a temperature of 27°C ±5°C.
The dimensions of the Meco MC-900 are approximately 144.5 x 95 x 72.5 mm, and it weighs 0.16 kg.
The Meco MC-900 operates on a 9V power supply, which is provided by 6 x 1.5V AA batteries.
The operating temperature range for the Meco MC-900 is from 0°C to 50°C.
The Meco MC-900 has a dielectric strength of 3.5kV at 50Hz for 1 minute between the input terminals and the case.
Yes, the Meco MC-900 includes a test and calibration certificate, a pair of crocodile/alligator test leads (red and black), a carrying case, and 6 fitted 1.5V AA batteries.
The maximum relative humidity limit for the Meco MC-900 is 80%.
The Meco MC-900 can measure insulation resistance of more than 50MΩ at 500V between the circuit and the case.
The storage temperature range for the Meco MC-900 is from -10°C to 60°C.
The Meco MC-900 meets the requirements of IEC 61010, Installation Category II, 1000V, and is designed to generally conform to IS 10656-1983.
The Meco MC-900 is suitable for evaluating insulation resistance in electrical systems, cables, transformers, and machines, making it ideal for routine preventive maintenance and quality inspections.
