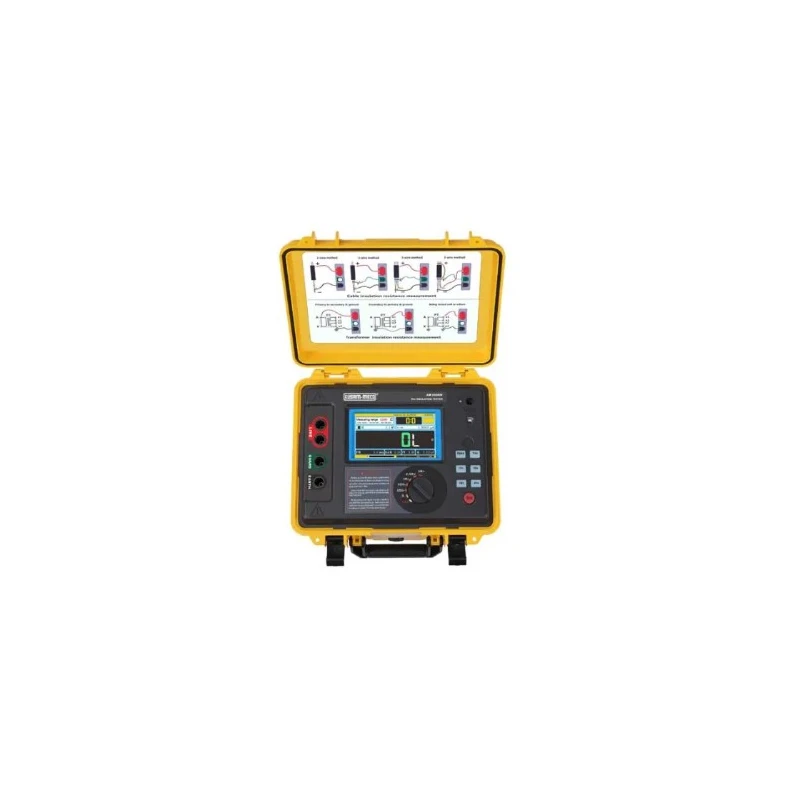

Kusam Meco 0.5 Mω-30 Tω High Voltage Insulation Resistance Tester KM5315IN
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 5315IN 0.5 MΩ - 10 TΩ Insulation Tester / Host |
| Capacitance Range | 10nF–25μF |
| Voltage Range | AC/DC0–1000V |
| Brand | Kusam Meco |
| Power Supply | Rechargeable Lithium Battery 6.2Ah |
| Dimension | 280×260×160mm |
| Function | High Voltage Insulation Resistance Tester |
| Model | KM5315IN |
| Temperature | -20°C–50°C≤80%RH |
| Weight | Approx .4900g |
| Safety | IEC61010-1/IEC61326-1 |
| Short Circuit Current | ≥7mA |
| Protection level | IP65(Closed)/IP40(Open) |
| Automatic Shutdown | After15Minutes |
| Data Storage | 1000Groups |
| Output Voltage Accuracy | (5%–10%)±10V |
| Rated Voltage | 250V/500V/1000V/2500V/5000V/10KV/15KV |
| Insulation Resistance Range | 0.5MΩ–30TΩ |
| USB Upload | Yes |
Key Features
- 15kV insulation tester with 30TW resistance measurement range
- Performs PI, DAR, Ramp, and Filtered Resistance tests
- True color display with USB upload and internal data storage
- CAT IV 600V safety rated and IP65 enclosure protection
- Automatic discharge and live voltage monitoring for user safety
Product Description
The Kusam Meco KM5315IN High Voltage Insulation Resistance Tester provides exceptional accuracy for insulation resistance measurement up to 30TΩ. Its 15kV output and advanced test modes, including PI, DAR, Ramp, and Filtered Resistance, make it suitable for heavy industrial systems and substations. With a true color touch screen, USB data logging, and protective housing, it ensures high reliability and safety.
Available on EnvMart, these 15 kV Insulation Testers support PI, DAR, and Ramp tests with USB connectivity. Kusam Meco Instruments are designed for industrial and substation diagnostics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM5315IN has an insulation resistance measurement range of 0.5 MΩ to 30 TΩ.
The Kusam Meco KM5315IN can output voltages of 250V, 500V, 1000V, 2500V, 5000V, 10KV, and 15KV.
The Kusam Meco KM5315IN is rated for safety according to IEC61010-1 and IEC61326-1 standards, and is CAT IV 600V safety rated.
The dimensions of the Kusam Meco KM5315IN are 280×260×160 mm, and it weighs approximately 4900 g.
The Kusam Meco KM5315IN can perform Polarization Index (PI), Dielectric Absorption Ratio (DAR), Ramp, and Filtered Resistance tests.
The Kusam Meco KM5315IN is powered by a rechargeable lithium battery with a capacity of 6.2 Ah.
Yes, the Kusam Meco KM5315IN supports USB data logging and can store up to 1000 groups of data.
The capacitance range of the Kusam Meco KM5315IN is from 10 nF to 25 μF.
The operating temperature range for the Kusam Meco KM5315IN is -20°C to 50°C with a relative humidity of ≤80%.
The Kusam Meco KM5315IN has a protection level of IP65 when closed and IP40 when open.
The Kusam Meco KM5315IN features an automatic shutdown function that activates after 15 minutes of inactivity.
The short circuit current of the Kusam Meco KM5315IN is ≥7 mA.
